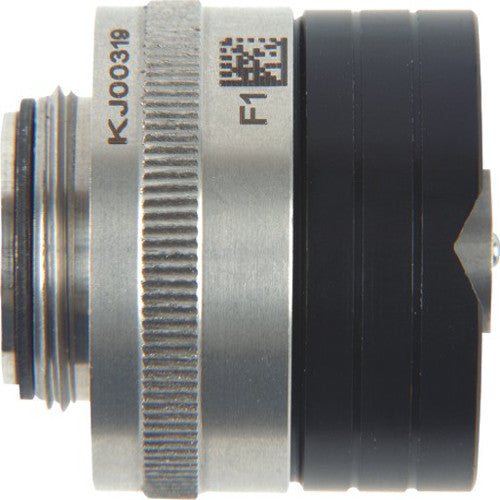

Ferrous Substrate Plug In Integral Probe (PINIP™) | Scale 3 | Elcometer 456

Ferrous Substrate Plug In Integral Probe (PINIP™) | Scale 3 | Elcometer 456

Manufacturer: Elcometer

Part #: T456CF3P

Description:Designed to work with any of our Ferrous or Dual FNF Elcometer 456 Separate Gauges.

Supplied with an Elcometer test certificate and a set of calibration foils.

Foil sets are appropriate to the scale range.

Specifications:

• Range: 0-500 mils (0-13mm)
• Accuracy: ±1-3% or ±2.0 mil (±50µm)
• Resolution: 0.1 mil: 0-100 mils; 1mil: 100-500 mils (1µm: 0-2mm; 10µm: 2-13mm)
• Minimum convex surface radius - 15mm (0.59")
• Minimum concave surface radius - 45mm (1.77")
• Minimum headroom - 184mm (7.24")
• Minimum sample diameter: - 14mm (0.55")
