Mini 45° Ferrous Substrate Probe | Scale 0.5 - 45mm | Elcometer 456

Mini 45° Ferrous Substrate Probe | Scale 0.5 - 45mm | Elcometer 456

Manufacturer: Elcometer

Part #: T456CFM3R45A

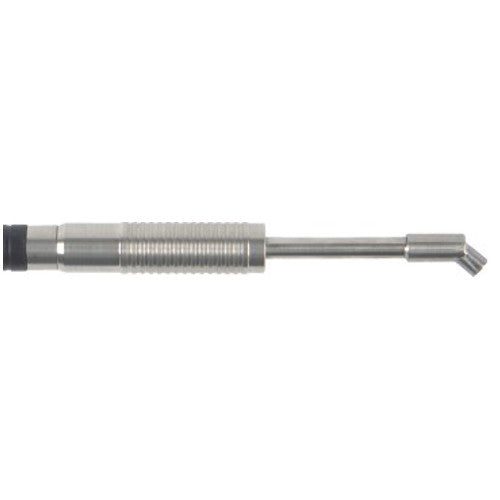

Description: The all New Elcometer 456 Mini 45 Degree Ferrous Probe is designed to work with our Elcometer 456 Separate Gauges.

Angled measurement head and long probe shaft is ideal for measuring difficult to access areas in bore holes or cylinders.

Specifications:

• Length 45mm
• Range: 0-20 mils (0-500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1 mils: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius - 1.9mm (0.07")
• Minimum concave surface radius - 6.5mm (0.26")
• Minimum headroom - 16mm (0.63") Width: 7mm (0.28")
• Minimum sample diameter: 3mm (0.12")

*Whichever is greater
