Mini 90° Ferrous Substrate Probe | Scale 0.5 - 150mm | Elcometer 456

Mini 90° Ferrous Substrate Probe | Scale 0.5 - 150mm | Elcometer 456

Manufacturer: Elcometer

Part #: T456CFM3R90C

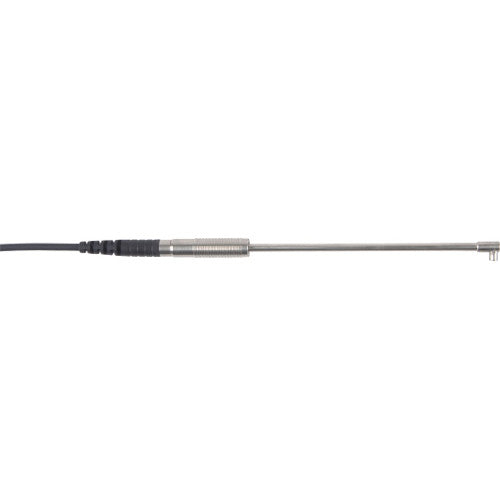

Description: The all New Elcometer 456 Mini 90 Degree Ferrous Probe is designed to work with our Elcometer 456 Separate Gauges.

Right angled probe with mini measuring head.

Ideal for measuring the walls of hard to reach areas of pipes or boreholes.

Specifications:

• Length 150mm (5.90")
• Range: 0-20 mils (0-500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1 mils: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius - 1.9mm (0.07")
• Minimum concave surface radius - 6.5mm (0.26")
• Minimum headroom - 16mm (0.63") Width: 7mm (0.28")
• Minimum sample diameter: 3mm (0.12")

*Whichever is greater
