Mini 90° Ferrous Substrate Probe | Scale 0.5 - 300mm | Elcometer 456

Mini 90° Ferrous Substrate Probe | Scale 0.5 - 300mm | Elcometer 456

Manufacturer: Elcometer

Part #: T456CFM3R90D

Description: Diameter 3mm (0.12"); Minimum Convex Surface Diameter 1.9mm (0.07"); Minimum Concave Surface Radius 6.5mm (0.26").

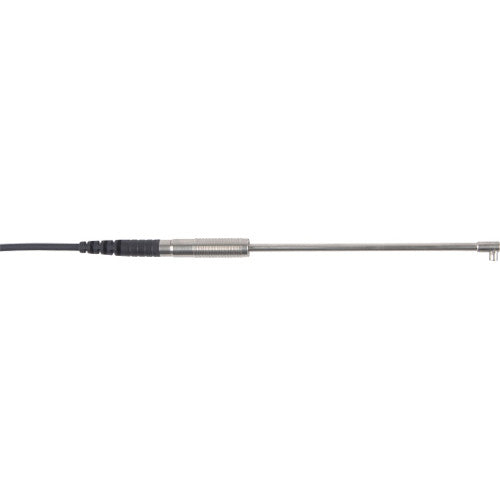

The all New Elcometer 456 Mini 90 Degree Ferrous Probe is designed to work with our Elcometer 456 Separate Gauges.

Right angled probe with mini measuring head.

Ideal for measuring the walls of hard to reach areas of pipes or boreholes.

Specifications:

• Length 300mm (11.8")
• Range: 0-20 mils (0-500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1 mils: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius - 1.9mm (0.07")
• Minimum concave surface radius - 6.5mm (0.26")
• Minimum headroom - 16mm (0.63") Width: 7mm (0.28")
• Minimum sample diameter: 3mm (0.12")

*Whichever is greater
