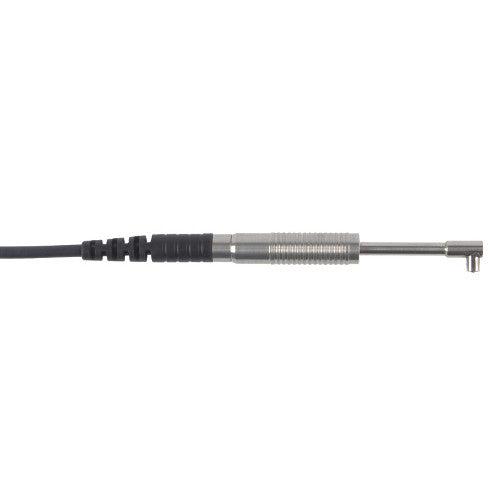

Mini 90° Non-Ferrous Substrate Probe | Scale 1 | 400mm | Elcometer 456

Mini 90° Non-Ferrous Substrate Probe | Scale 1 | 400mm | Elcometer 456

Manufacturer: Elcometer

Part #: T456CNM5R90E

Description: Designed to work with any of our Non-Ferrous or Dual FNF Elcometer 456 Separate Gauges.

Ideal for measuring I beam edges, walls of hard to reach areas, as well as walls of pipes or boreholes.

Specifications:

• 400mm
• Range: 0-60 mils (0-1500µm)
• Accuracy: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius 10.0mm (0.39")
• Minimum concave surface radius 8.5mm (0.33")
• Minimum headroom 16mm (0.63") - Width: 7mm (0.28")
• Minimum sample diameter 4mm (0.16")
