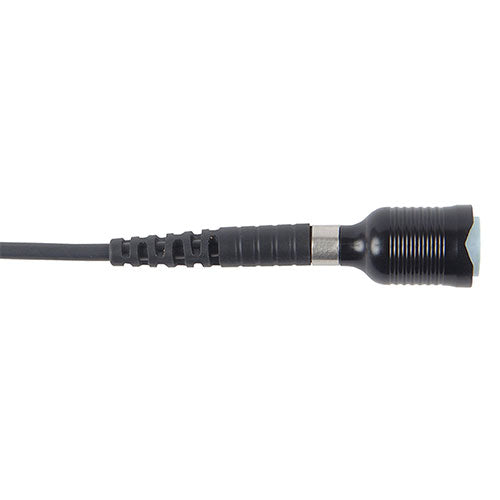

Straight Non-Ferrous Substrate Probe | Scale 2 | Elcometer 456

Straight Non-Ferrous Substrate Probe | Scale 2 | Elcometer 456

Manufacturer: Elcometer

Part #: T456CN2S

Description: Designed to work with any of our Non-Ferrous or Dual FNF Elcometer 456 Separate Gauges.

For higher resolution & accuracy on thin coatings Scale 2 gauges can be switched to the Scale 1 mode measurement performance.

Specifications:

• Range: 0-200 mils (0-5mm)
• Accuracy*: ±1-3% or ±1.0 mil (±20µm)
• Resolution: 0.1 mil: 0-50 mils; 1mil: 50-200 mils (1µm: 0-1mm; 10µm: 1-5mm)
• Minimum convex surface radius 100mm (3.97")
• Minimum concave surface radius 150mm (5.90")
• Minimum headroom 88mm (3.46")
• Minimum sample diameter: 14mm (0.55")
