Ultra Scan Probe for Ferrous Substrates | Range: 0-60mils / 0-1500µm | Elcometer 456
Ultra Scan Probe for Ferrous Substrates | Range: 0-60mils / 0-1500µ...
Ultra Scan Probe for Ferrous Substrates | Range: 0-60mils / 0-1500µm | Elcometer 456
Manufacturer: Elcometer
Part #: T456CF1U
Description: Designed to work with any of our Top Ferrous or Top Dual FNF Elcometer 456 Separate Gauges.

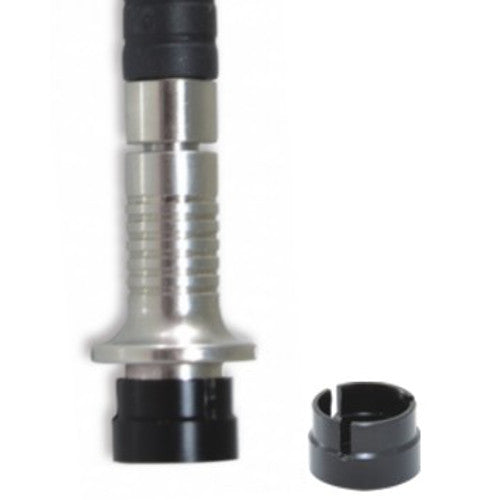

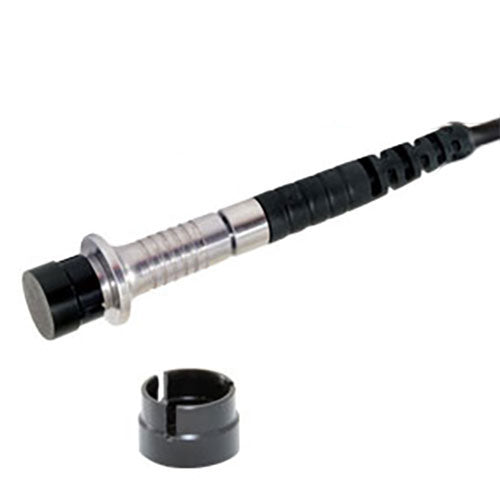

Featuring a highly durable 'snap on' replaceable probe cap, the Elcometer 456 Ultra/Scan Probe allows users to take individual readings or rapidly scan large surface areas - without damaging the probe or the coating.
With a reading rate in excess of 140 readings per minute the Auto Repeat Mode can significantly speed up the inspection of large coated areas.
When the Ultra/Scan Probe is connected to the Elcometer 456 Model T with Auto Repeat Mode selected, SSPC PA2 (or similar test methods) can be completed more than 40% faster.
Specifications:
- Range: 0-60 mils (0-1500µm)
- Accuracy: ±1-3% or ±0.1 mil (±2.5µm)
- Resolution: 0-60 mils (1µm: 0-1500µm
- Minimum headroom: 85mm (3.50")
- Minimum sample diameter: 5mm (0.59")
