Air Assisted Airless 12:1 Piston Pump Systems
Manufacturer: Binks
Part #: MX1212XX-XXXXXXX
Description: MX1212: 1.2 gal/m output and 12:1 ratio
Binks MX Pumps are a completely new design in air-operated pump technology utilizing patented magnetic detents to provide fast changeover with virtually no pulsation. The result is paint delivery with less pulsation for a more consistent finish. The MX pistons are ceramic coated – the most durable surface available – for resisting wear from abrasive materials.
The MX Pumps are ideal for air assisted airless spray finishing, supporting 1 to 2 spray guns, with thin to medium viscosity coatings.
- Wood Stains, Varnishes, Lacquers
- Primers & Sealers
- Solvent & Waterborne Coatings
- Enamel & Polyurethane
MX1212 Pump Specifications:
| Ratio: | 12:1 |
| Maximum air inlet pressure: | 8 bar [116 psi] |
| Maximum fluid pressure: | 96 bar [1390 psi] |
| Displacement per cycle: | 72 cc [2.4 oz] |
| Output @ 60 cycles / min: | 4.3 l/m [1.2 US gal/m] |
| Air consumption @ 20 cycles/min and 8 bar [116 psi] air inlet pressure: | 147 LPM [5.2 SCFM] |
| Maximum recommended continuous cycle rate [cycles/min]: | 20 cycles/min |
| Air inlet connection: | 3/8" BSP(f) and 1/4" NPS(m) |
| Air piston diameter: | 85 mm [3.3 in] |
| Stroke length: | 75 mm [3.0 in] |
| Fluid inlet connection: | 3/4" NPS(m) |
| Fluid outlet connection: | 3/8" BSP(m) / 3/8" NPS(m) |
| Wetted parts materials of construction: | Stainless Steel, Tungsten Carbide, Hard Chrome, PTFE, Polyethylene, Leather |
| Sound level: | 96.2 dB |
When selecting a model, the following options are available:
Seals: PTFE/UHMWPE (PU) or UHMWPE/U-Cup Seals (UC).
Spray Gun: None (0) or TROPHY AA 1600 Flat Tip (Q).
Air Control: None (0) or Air Control (D).
Mount: Cart (C) or Wall (W) Mount.
Filter: None (0) or 100 Mesh (1).
Siphon: None (0), 5 Gallon (S) or 55 Gallon (T).
Hose: None (00) or 25ft/whip (25).
- Part # MX1212PU-0DC0000
- Part # MX1212PU-0DC0S00
- Part # MX1212PU-0DC1S00
- Part # MX1212UC-00C1S00
- Part # MX1212UC-QDC1S25

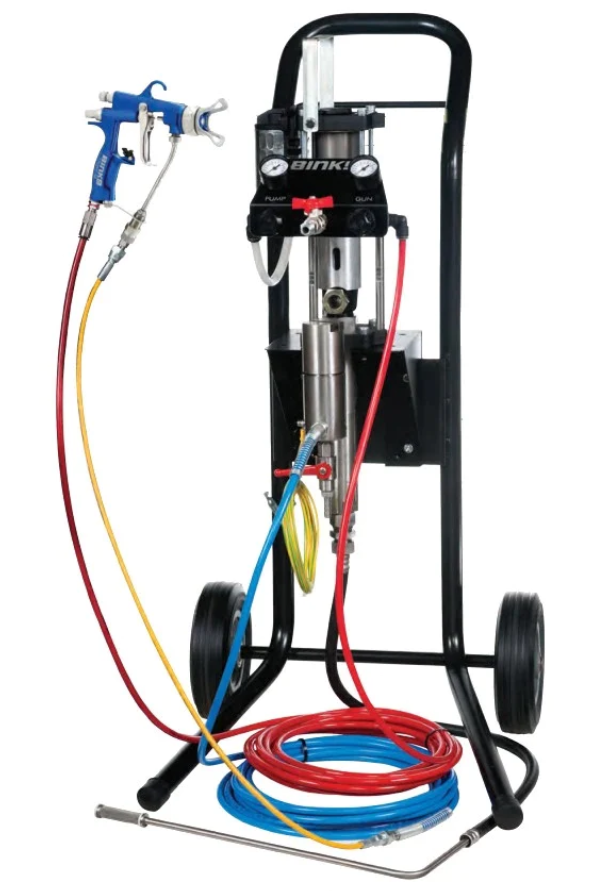

Cart Mounted Spare Parts
| Ref. No. | Part No. | Description | Qty |
| 1 |
BARE PUMP ASSEMBLY (PTFE/LEATHER) BARE PUMP ASSEMBLY (PTFE) BARE PUMP ASSEMBLY (PTFE/UHMW) BARE PUMP ASSEMBLY (U-CUPS) |
1 | |
| 2 |
0909-1600-HF1310 0909-1600-HT0613 |
AA1600 GUN ASSEMBLY (1310 FLAT TIP) AA1600 GUN ASSEMBLY (613 TWIST TIP) TROPHY AA1600 GUN ASSEMBLY (1310 FLAT TIP) TROPHY AA1600 GUN ASSEMBLY (613 TWIST TIP) AIRLESS 75 GUN ASSEMBLY |
1 |
| 3 | 71-4995 | MATERIAL HOSE (3/16" ID X 25', 1900 PSI) | 25'=1 50'=2 |
| 4 | 72-791 | DM NIPPLE (1/4" NPS, SS) [NOT SHOWN] | IF 50' HOSE = 1 |
| 5 |
AIR HOSE (3/8" OD TUBE X 28FT) AIR HOSE (3/8" OD TUBE X 53FT) |
IF 25' OR 50' HOSE = 1 | |
| 6 | 71-6844 | MATERIAL HOSE (1/8" ID X 3', 5000 PSI) | IF 25' OR 50' HOSE = 1 |
| 7 | 72-2332 | SWIVEL ADAPTER (1/4" NPS M X F) [NOT SHOWN] | 1 IF GUN TYPE = P |
| 8 | 54-4976 | ADAPTER FITTING (3/8" OD TUBE X 1/4" NPS F) | 1 IF GUN TYPE = E / F |
| 9 | 0115-010180 | AIR CONTROL ASSEMBLY | 1 IF AIR CONTROL = D |
| 10 | 83-4233 | DM NIPPLE (1/4" NPS/NPT X 3/8" NPS/NPT) | 1 IF AIR CONTROL = D |
| 11 | 0115-010186 | TROLLEY ASSEMBLY | 1 |
| 12 | 0115-010179 | PUMP BRACKET | 1 |
| 13 | 0115-010001 | SOCKET HEAD CAP SCREW (M8 X 35mm) | 4 |
| 14 | 0115-010030 | HEX NUT (M8) | 8 |
| 15 | 0115-010031 | LOCK WASHER (M8) | 4 |
| 16 | 0115-010035 | FLAT WASHER (M8) | 8 |
| 17 |
0115-010630 |
S.S. FILTER ASSEMBLY (100 MESH) S.S. FILTER ASSEMBLY (200 MESH) |
1 IF FILTER TYPE = 1 1 IF FILTER TYPE = 2 |
| 18 | 103-1238 | SWIVEL ADAPTER (3/8" NPS F X 1/4" NPT/NPS M) | 1 IF NO FILTER |
| 19 |
SIPHON TUBE ASSEMBLY (5 GALLON) SIPHON TUBE ASSEMBLY (55 GALLON) |
1 IF SIPHON SIZE = S 1 IF SIPHON SIZE = T |
|
| 20 | 0115-010227 | SOCKET HEAD CAP SCREW (M8 X 25) | 4 |
| 21 | 85-521 | SWIVEL ELBOW (3/8" OD TUBE X 1/4" NPT) | 1 IF AIR CONTROL = D |
- Part # MX1212PU-0DW0000
- Part # MX1212PU-0DW0S00
- Part # MX1212PU-0DW1S00
- Part # MX1212PU-0DW1T00
- Part # MX1212PU-QDW1S25
- Part # MX1212UC-0DW0000
- Part # MX1212UC-QDW1S25

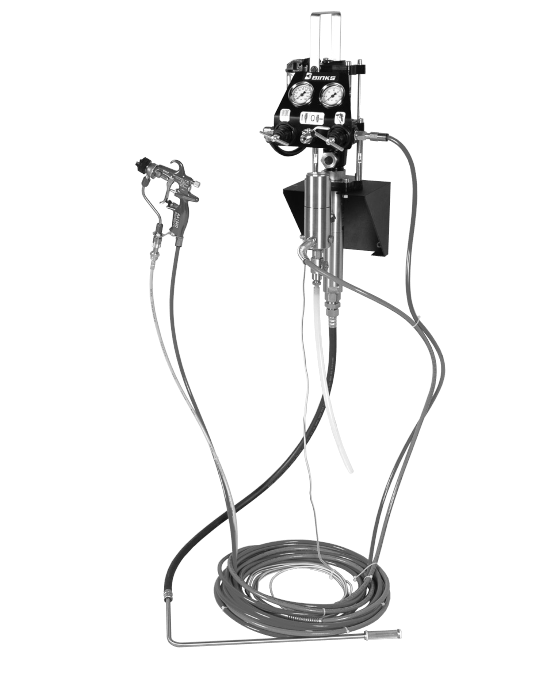

Wall Mounted Spare Parts
| Ref. No. | Part No. | Description | Qty |
| 1 |
BARE PUMP ASSEMBLY (PTFE/LEATHER) BARE PUMP ASSEMBLY (PTFE) BARE PUMP ASSEMBLY (PTFE/UHMW) BARE PUMP ASSEMBLY (U-CUPS) |
1 | |
| 2 |
0909-1600-HF1310 0909-1600-HT0613 |
AA1600 GUN ASSEMBLY (1310 FLAT TIP) AA1600 GUN ASSEMBLY (613 TWIST TIP) TROPHY AA1600 GUN ASSEMBLY (1310 FLAT TIP) TROPHY AA1600 GUN ASSEMBLY (613 TWIST TIP) AIRLESS 75 GUN ASSEMBLY |
1 |
| 3 | 71-4995 | MATERIAL HOSE (3/16" ID X 25', 1900 PSI) | 25'=1 50'=2 |
| 4 | 72-791 | DM NIPPLE (1/4" NPS, SS) [NOT SHOWN] | IF 50' HOSE = 1 |
| 5 |
AIR HOSE (3/8" OD TUBE X 28FT) AIR HOSE (3/8" OD TUBE X 53FT) |
IF 25' OR 50' HOSE = 1 | |
| 6 | 71-6844 | MATERIAL HOSE (1/8" ID X 3', 5000 PSI) | IF 25' OR 50' HOSE = 1 |
| 7 | 72-2332 | SWIVEL ADAPTER (1/4" NPS M X F) [NOT SHOWN] | 1 IF GUN TYPE = P |
| 8 | 54-4976 | ADAPTER FITTING (3/8" OD TUBE X 1/4" NPS F) | 1 IF GUN TYPE = E / F |
| 9 | 0115-010180 | AIR CONTROL ASSEMBLY | 1 IF AIR CONTROL = D |
| 10 | 83-4233 | DM NIPPLE (1/4" NPS/NPT X 3/8" NPS/NPT) | 1 IF AIR CONTROL = D |
| 11 | 0115-010179 | PUMP BRACKET | 1 |
| 12 | 0115-010001 | SOCKET HEAD CAP SCREW (M8 X 35mm) | 4 |
| 13 | 0115-010030 | HEX NUT (M8) | 4 |
| 14 | 0115-010031 | LOCK WASHER (M8) | 4 |
| 15 | 0115-010035 | FLAT WASHER (M8) | 4 |
| 16 |
0115-010630 |
S.S. FILTER ASSEMBLY (100 MESH) S.S. FILTER ASSEMBLY (200 MESH) |
1 IF FILTER TYPE = 1 1 IF FILTER TYPE = 2 |
| 17 | 103-1238 | SWIVEL ADAPTER (3/8" NPS F X 1/4" NPT/NPS M) | 1 IF NO FILTER |
| 18 |
SIPHON TUBE ASSEMBLY (5 GALLON) SIPHON TUBE ASSEMBLY (55 GALLON) |
1 IF SIPHON SIZE = S 1 IF SIPHON SIZE = T |
|
| 19 | 85-521 | SWIVEL ELBOW (3/8" OD TUBE X 1/4" NPT) | 1 IF AIR CONTROL = D |
