Binks AG-363 Spare Parts

Regular price $42.10
Shipping calculated at checkout.


Binks AG-363 Spare Parts

Manufacturer: Carlisle Binks

Part #: See below

Description: See list below for reference number, part number, and description. Fluid tips (#4) are purchased separately and are linked in the description.

Manual

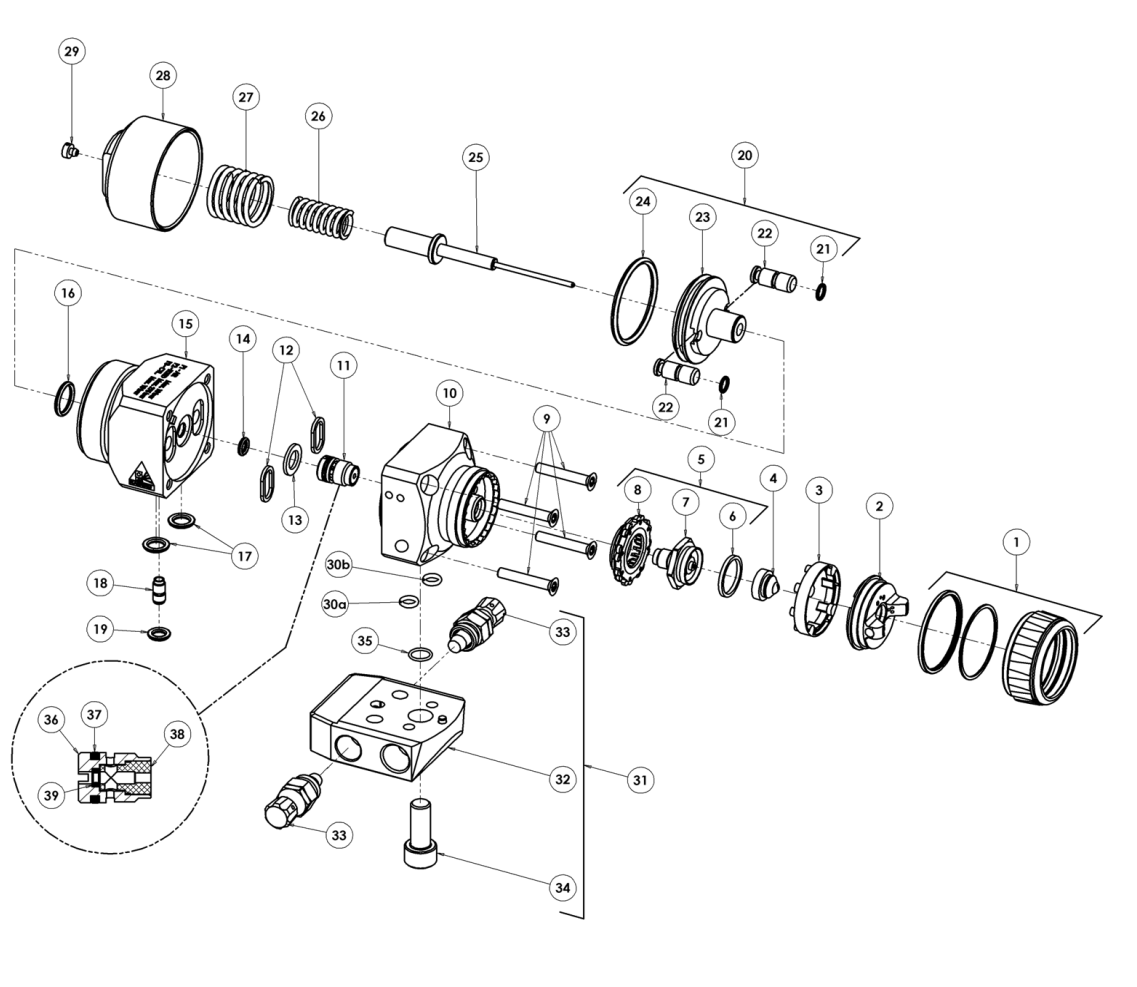

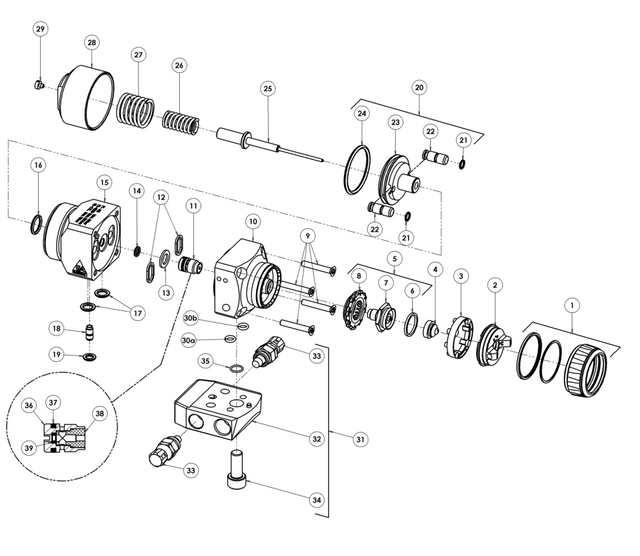

Ref. # Part No. Description
1 ADV-403-K Retaining Ring with Seals
2 54-5890-K AA10 Air Cap (Brown)
3 SPA-70-K10 Index Plate (Kit of 10)
4 N/A Fluid Tips
5 SPA-69-K Needle Seat Assembly
6 SPA-98-K10 Gasket (Kit of 10)
7 N/A Needle Seat (Part of Ref. #5)
8 SPA-71-K10 Baffle Plate (Kit of 10)
9 S-14190-K4 Torx Screw (Kit of 4)
10 SPA-156-K Spray Head
SPA-156U-K Spray Head Recirculation
11 SPA-76 Needle Packing
12  SPA-53-K10 Gasket (Kit of 10)
13 SPA-97-K10 Gasket (Kit of 10)
14 S-28219X-K4 O-Ring (Kit of 4)
15 SPA-65-BL-K Body
16 S-28220X-K2 O-Ring (Kit of 2)
17 SPA-29X-K4 O-Ring (Kit of 4)
18 SPA-52 Air Tube
19 S-28223X-K4 O-Ring (Kit of 4)
20 SPA-68-K Piston
21 S-28224X-K4 O-Ring (Kit of 4)
22 SPA-62-K Air Valve Piston (Kit of 2)
23 N/A Piston (Part of Ref. #20)
24 SPA-45X-K2 O-Ring (Kit of 2)
25 SPA-79 Fluid Needle
26 SPA-77 Needle Spring
27 SPA-13 Piston Spring
28 SPA-67-BL-K End Cap
29 SPA-54 Vent Cap
30a/b SN-71X-K2 O-Ring
31 SPA-419-K Screw Manifold Assembly
SPA-419P-K Screw Manifold Assembly Plugged
SPA-419U-K Recirculation Screw Manifold Assembly
SPA-419UP-K Recirculation Screw Manifold Assembly Plugged
32 N/A Manifold (Part of Ref. #31)
33 SPA-414-K Control Valve
34 SPA-161-K2 Clamping Screw (Kit of 2)
35 N/A O-Ring (Part of Ref. #34)
36 N/A Housing (Part of Ref. #11)
37 SPA-29X-K4 O-Ring (Kit of 4)
38 SPA-96-K4 Seal
39 SPA-46X-K4 O-Ring (Kit of 2)
