Binks AG-364 Spare Parts

Regular price $72.50
Shipping calculated at checkout.


Binks AG-364 Spare Parts

Manufacturer: Carlisle Binks

Part #: See below

Description: See list below for reference number, part number, and description. Fluid tips (#4) are purchased separately and are linked in the description.

Manual

Major overhaul service kits and soft seal service kits are listed at the bottom

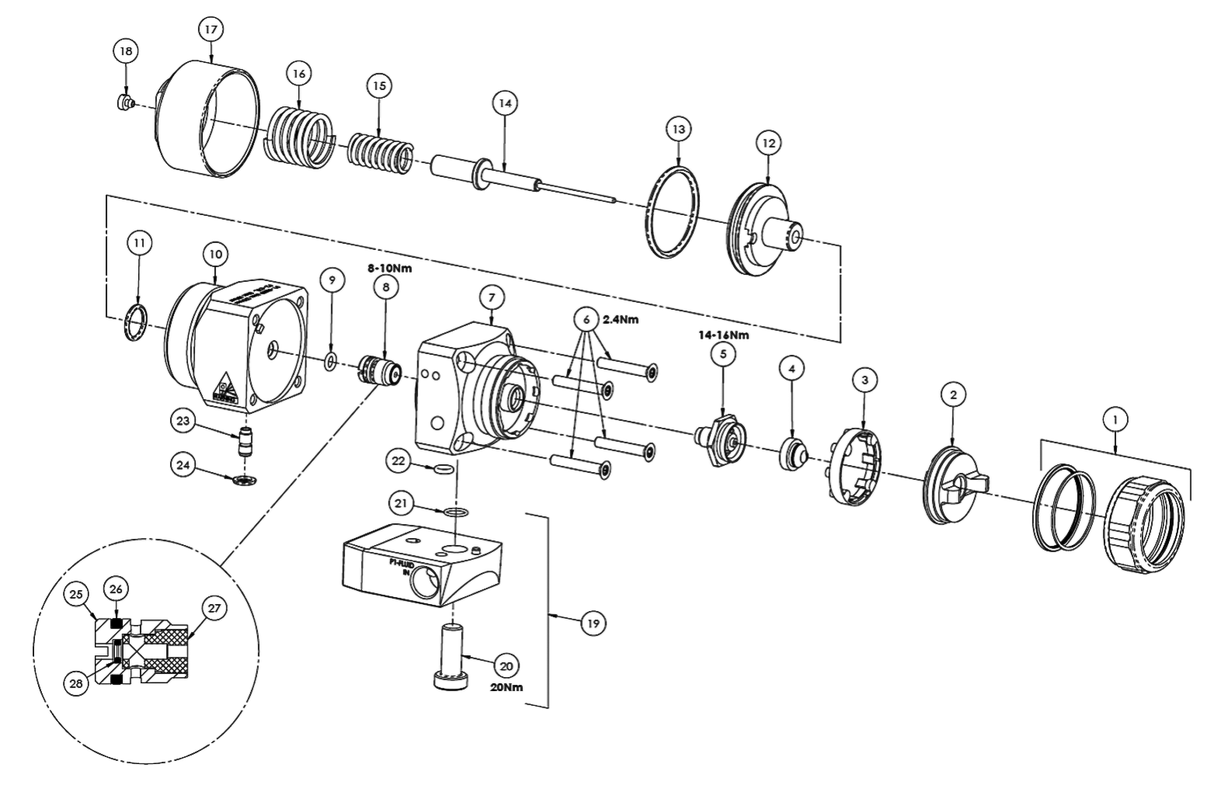

Ref. Part# Description
1 # 54-6029-K Retaining Ring with Seals
2 # SPA-6031-K Tip Holder
3 SPA-70-K10 Index Plate (Kit of 10)
4 See Table Standard Tips or Fine Finish Tips
5 # SPA-69-K Needle Seat Assembly
6 S-14190-K4 Torx Screw (Kit of 4)
7 SPA-190-K Sprayhead
8 * # SPA-76 Needle Packing
9 * S-28219X-K4 O-Ring (Kit of 4)
10 SPA-191-K Body
11 * S-28220X-K2 O-Ring (Kit of 2)
12 # SPA-68-K Piston
13 * # SPA-45X-K2 O-Ring (Kit of 2)
14 SPA-79 Fluid Needle
15 # SPA-77 Needle Spring
16 # SPA-13 Piston Spring
17 SPA-67-BL-K End Cap
18 SPA-54 Vent Cap
19 SPA-428-K Screw Manifold Assembly
SPA-428U-K Recirculation Screw Manifold Assembly
20 # SPA-161-K2 Clamping Screw (Kit of 2)
21 # N/A O-Ring (Part of Clamping Screw Kit, Ref.#20)
22 * SN-71X-K2 O-Ring
23 # SPA-52 Air Tube
24 * S-28223X-K4 O-Ring (Kit of 4)
25 N/A Housing (Part of Needle Packing, Ref.#8)
26 SPA-29X-K4 O-Ring (Kit of 4)
27  SPA-96-K4 Seal
28 SPA-46X-K4 O-Ring (Kit of 4)
KK-4588 Soft Seal Service Kit - Includes all items marked by *
KK-4589 Major Overhaul Service Kit - Includes all items marked by #
