Tsunami Breathing Air Systems
Manufacturer: Tsunami
Part Number: 21999-0177, 21999-0177-230, 21999-0177-230-50, 21999-0177-24, 21999-0177-12
Description:

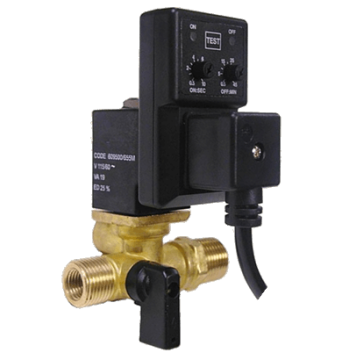

The Moisture Minder® Electronic Drain Valve uses a fixed strainer screen to trap contaminants before they reach the orifice, fouling the armature. The Moisture Minder® self-cleaning drain has a ball valve integrated into the drain body which, when opened manually, allows a blast of air to remove captured contaminants from the strainer screen.
Failure to routinely drain your compressor manually or by other means can contaminate compressed air systems and ruin your pneumatic tools and their application.
- Solid state adjustable timer with test button.
- Stainless steel internal armature and shaft.
- Dual-sized inlet.
- ¼” NPT ID - ½” NPT OD thread fittings.
- Large 4mm internal orifice.
- Made in America.
- 90-day warranty
|
Part Number |
21999-0177 | 21999-0177 -230 | 21999-0177-230-50 | 21999-0177-24 | 21999-0177-12 |
| Power | 115CAC / 60HZ |
230VAC / 60HZ | 230VAC / 50HZ | 42DC / 24W | 12VDC / 10W |
| AMPS | .17 | .08 | .08 | .8 | 1.6 |
| Inlet(NPT) | 1/4 ID / 1/2 OD | 1/4 ID / 1/2 OD | 1/4 ID / 1/2 OD | 1/4 ID / 1/2 OD | 1/4 ID / 1/2 OD |
| Outlet (NPT) | 1/4" |
1/4" | 1/4" | 1/4" | 1/4" |
| Max F | 175 F | 175 F | 175 F | 175 F | 175 F |
| Max PSI | 250 | 250 | 250 | 250 | 250 |
| Dimensions | 5 1/2" x 3 1/2" x 3 1/2" | 5 1/2" x 3 1/2" x 3 1/2" | 5 1/2" x 3 1/2" x 3 1/2" | 5 1/2" x 3 1/2" x 3 1/2" | 5 1/2" x 3 1/2" x 3 1/2" |
Spare Parts -
| Part Number | Description |
| 21999-0316 | Drain Installation Kit |
| 21999-0317 | |
| 21999-0868 | Float Drain Pack |
