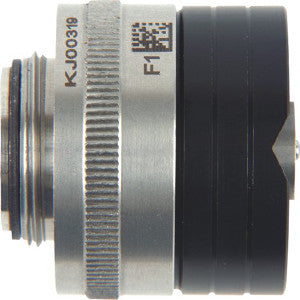

Dual Ferrous/Non-Ferrous (FNF) Substrate Plug In Integral Probe (PINIP™) | Scale 1 | Elcometer 456

$825.00

Dual Ferrous/Non-Ferrous (FNF) Substrate Plug In Integral Probe (PINIP™) | Scale 1 | Elcometer 456

Manufacturer: Elcometer

Part #: T456CFNF1P

Description: Designed to work with any of our Elcometer 456 Separate Gauges.

Probe attaches to a separate gauge to give it the performance and profile of an integral probe gauge.

Specifications:

  • Range: 0-60 mils (0-1500µm)
  • Accuracy: ±1-3% or ±0.1 mil (±2.5µm)
  • Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-60 mils (0.1µm: 0-100µm; 1µm: 100-1500µm)
  • Minimum convex surface radius F Mode: 4mm (0.16") N Mode: 26mm (1.02")
  • Minimum concave surface radius 65mm (2.56")
  • Minimum headroom 180mm (7.09")
  • Minimum sample diameter F Mode: 4mm (0.16") N Mode: 6mm (0.24")
                                      Data Sheet
