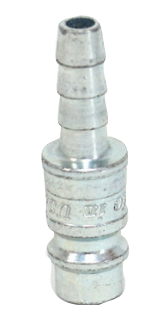

Dan-Am Air 320 Series Nipple, Hose Barb 1/4"

320 Series Nipple, Hose Barb 1/4"

Manufacturer: Dan-Am Air

Part #: 10-320-5002

Description: Series 320 coupling is an easy-to-handle high performing coupling with a long service life. eSafe is a one hand operated safety coupling that vents before disconnection eliminating the risk of hose whip. Male threads on the couplings and nipples feature pre-applied thread sealant. The couplings have a smaller outside dimension than comparable designs. Full automatic operation ensures easy handling. eSafe complies with ISO Standard 4414 and EN 983.

• Nominal flow diameter 7.6 mm
• Air Flow: 79.4 CFM

• Max Working pressure: 232 PSI

• Min burst pressure: 2030 PSI

• Temperature range: -4°F - + 212°F

• Material coupling: Zinc-plated steel/brass

• Material Nipple: Hardened zinc-plated steel

Flow capacity is measured at 100 PSI inlet pressure, and pressure drop at 6 PSI

Specifications:

ALL FITTINGS, VALVES, & ADAPTERS ARE NOT RETURNABLE. ALL SALES ARE FINAL
