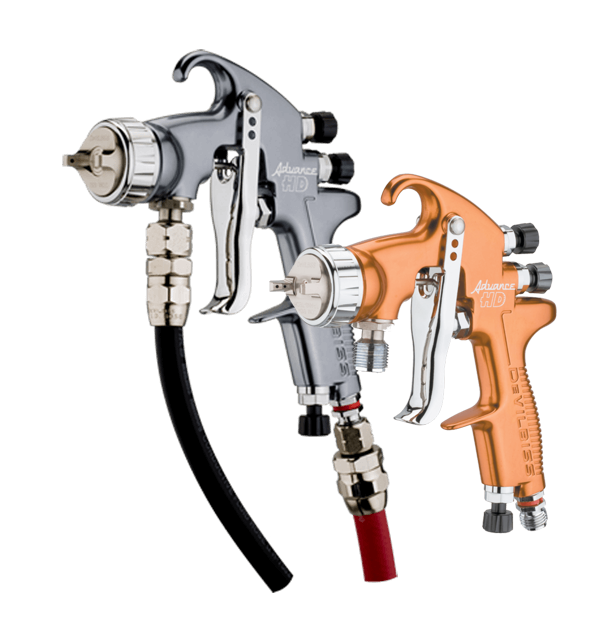

The All Purpose Mid-Sized Pressure Spray Gun
Now Available In A Unique Carbon Fiber Finish HERE!
Manufacturer: DeVilbiss
Part #: ADV-PXXX-YY
Description:
The DeVilbiss Advance HD Gravity Feed Gun utilizes a wide range of Conventional, HVLP, and Trans-Tech air caps to provide exceptional atomization for coating wood, metal, plastic, ceramic and composite substrates with most types of solvent, waterborne, high solids and 2K materials.
- Conventional is the most established method of air atomization used on "conventional" spray guns, using relatively high velocity compressed air to provide good atomization of the sprayed material. However, this process results in low paint transfer efficiencies due to the 'bounce-back' and 'overspray' generated. Air Cap Pressure is typically 30-40psi.
-

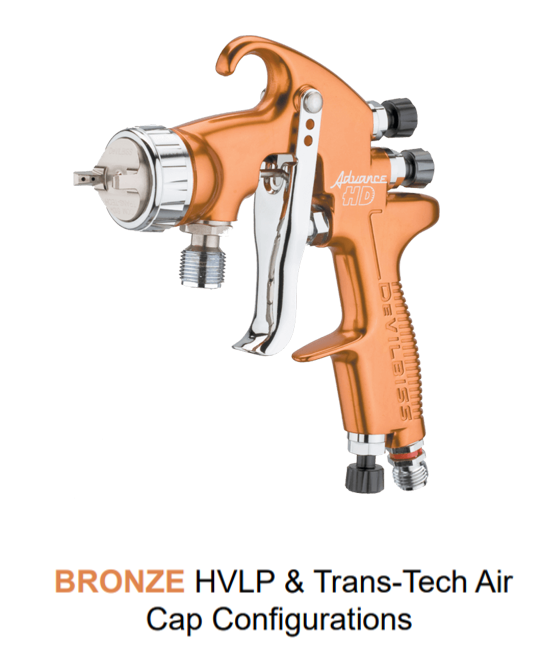

HVLP (High Volume Low Pressure) is a "compliant" atomization method using larger compressed air volumes at lower pressures to atomize the coating. It has a much higher transfer efficiency than Conventional. However, the droplet size produced tends to be slightly larger, sometimes resulting in lower quality finish. Air Cap Pressure is 10psi in compliance with global environmental legislation to provide greater than 65% transfer efficiency.
- Trans-Tech (compliant) atomization was introduced by DeVilbiss to combine the benefits of both Conventional and HVLP atomization methods. Trans-Tech utilizes more compressed air energy for the atomization process producing much higher Transfer Efficiency of coating material than Conventional. This 'complies' with global environmental legislation by being able to transfer at least 65% of the sprayed material to the component. Air Cap Pressure is typically 20-45psi. HVLP has mostly been replaced by DeVilbiss Trans-Tech Atomization in most applications due to its superior quality finish.
Air Caps are compatible with all Advance HD standard and hardened fluid nozzle sizes.
Advance HD’s unique high capacity airflow and outstanding atomization characteristics are combined with a separate “balanced” air valve design for lighter trigger pulls to provide an unrestricted flow of compressed air through the gun body; this coupled with light, feel-right comfort is an unbeatable combination. Advance spray guns are ideal for small operations or high volume spraying, with the added bonus of instantly improved finishing productivity.
Air Cap Type and Fluid Tip Available:
| Air Cap # and Type |
Fluid Tip Sizes (mm) |
| 430 Conventional | 1.0, 1.4, 1.8 |
| 497 Conventional | 1.0, 1.4, 1.8 |
| 506 HVLP | 1.0, 1.4 |
| 507 HVLP | 0.85, 1.0, 1.4, 1.8, 2.2 |
| 510 T-T | 0.85, 1.0, 1.4, 1.8 |
| 513 T-T | 1.2, 1.4 |
| 522 T-T | 0.85, 1.0, 1.4, 1.8, 2.2 |
Specifications:
| Air Cap # and Type | Air Inlet Pressure | Air Consumption | *Fan Pattern / Size |
| 430 Conventional | 50 psi (3.5 bar) | 12.0 scfm (339 l/m) | 7.9" (200 mm) |
| 497 Conventional | 50 psi (3.5 bar) | 18.0 scfm (510 l/m) | 12.0" (305 mm) |
| 506 HVLP | 19 psi (1.3 bar) | 10.6 scfm (300 l/m) | 12.0" (305 mm) |
| 507 HVLP | 22 psi (1.5 bar) | 17.3 scfm (490 l/m) | 15.7" (400 mm) |
| 510 T-T | 29 psi (2.0 bar) | 10.0 scfm (283 l/m) | 10.6" (270 mm) |
| 513 T-T | 29 psi (2.0 bar) | 14.1 scfm (394 l/m) | 13.8" (350 mm) |
| 522 T-T | 29 psi (2.0 bar) | 14.5 scfm (410 l/m) | 13.8" (350 mm) |
*Fan size will vary according to viscosity and pressure. Measured at a distance of 8"
Literature:
- Manual (HVLP and Trans Tech* 522 T-T uses 510/513 needle/nozzles)
Parts and Accessories:
| Ref. No. | Part No. | Description |
| 1 | - | Air Cap Retaining Ring |
| 2 | - | Slip Ring |
| 3 | - | Air Cap |
| 4 | JGA-156-K5 | Air Cap Retaining Clip |
| 5 | - | Retaining Ring Seal |
| 6 | SP-100-5XX-K | Aircap & Ring |
| 7 | ADV-403-K | Air Cap Retaining Ring & Seals |
| 8 | SP-2XXS-XX-K | Fluid Nozzle |
| 9 | SP-626-K5 | Separator |
| 10 | Fluid Nozzle Kit | |
| 12* | - | Body Bushing Seal |
| 13 | - | Body Bushing |
| 14 | SN-6-K | Body Bushing & Seal |
| 15 | ADV-310-XX-K | Fluid Needle |
| ADV-310P-XX-K | Fluid Needle (Plastic Tip) | |
| 16* | - | Needle Spring |
| 17* | - | Needle Spring Pad |
| 18 | - | Fluid Adjusting Knob |
| 19 | ADV-6-K | Fluid Adjusting Knob, Spring & Pad Kit |
| 20* | - | Retaining Clip |
| 21 | - | Spreader Valve Body |
| 22* | - | Spreader Valve Seal |
| 23 | - | Spreader Valve Adjusting Knob |
| 24* | - | Spreader Valve Pin |
| 25 | ADV-401-K | Spreader & Airflow Valve Assembly |
| 26* | - | Needle Packing |
| 27* | - | Packing Spring |
| 28* | - | Packing Nut |
| 29 | SN-404-K | Packing, Spring & Packing Nut Kit |
| 30 | - | Air Valve Body |
| 31 | - | Air Valve Cage |
| 32 | - | Air Valve Poppet |
| 33 | - | Air Valve Spring |
| 34 | - | Air Valve Spring Pad |
| 35 | SN-34-K5 | Air Valve Seal |
| 36 | SN-402-K | Air Valve Assembly |
| 37* | - | Trigger Stud Screw (T20 TORX) |
| 38 | - | Trigger |
| 39* | - | Trigger Stud |
| 40 | SN-63-K | Trigger, Stud & Screw Kit |
| 42 | SN-9-K | Air Inlet |
| 43 | SN-26-K4 | Colour ID Ring Kit (4 Colours) |
| 45 | SN-405-K5 | Stud and Screw kit |
| 46 | - | Air valve Service Too |
| 47 | SPN-8-K2 | Torx Key |
| 54 | - | Fluid Inlet Connector |
| 55 | - | Lock Nut |
| 56 | - | Seal |
| 57 | ADV-7-K | Fluid Inlet Connector Kit |
| * | PRO-415-1 | Spray Gun Repair Kit (Includes items marked with *) |
| SN-406 | Spanner, Trox Driver and Brush Kit |
