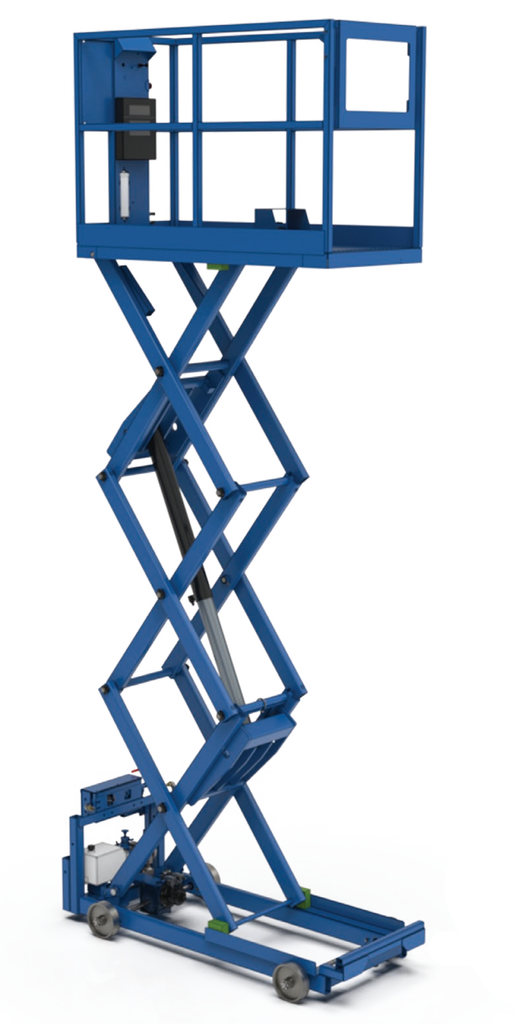

Rail Guided Scissor Platform Lift LPST
Manufacturer: LPI Lift Systems
Part Number: LPST-XX
Description: Rail Guided Lifts (LPST) are designed for use where a work process is performed along a fixed linear work area. Ideal for areas with limited floor space. Minimal installation requirements with many lift options available.
Features:
- Raised platform height: 4'-5" to 12'
- Minimum lowered platform height: 14.5"
- Operator Platform Capacity: 500 lbs.
- Platform Dimensions: 66"L x 30"W
- 43.5" high guard rail with self-closing gate
- Pneumatic/Hydraulic power for hazardous areas
- Electric/Hydraulic power for non-hazardous areas
- Filter/Regulator/Lubricator (pneumatic option only)
- Quick and easy connection to air source
Controls / Connection:
- Primary air source connection: 1/2" NPT
- Auxiliary unoiled air connection in platform: 3/8" NPT
- Lift requires a clean, dry air supply (50 scfm @ 90 psi with a 40°F dew point)
- Fixed hand control with E-Stop
- Base control to raise and lower platform
- Optional pendant foot control to raise/lower platform
Travel Speed:
- X-Axis (left/right): Variable up to 40 fpm
- Z-Axis (up/down): 15 fpm
You will be contacted with a freight quote for shipping. Forklift may be required at time of delivery
