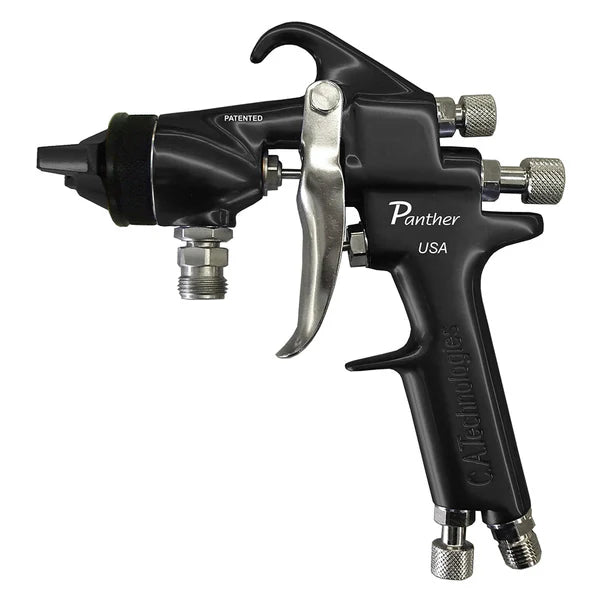

Panther 100 Conventional (P100G)
Manufacturer: C.A. Technologies
Part Number: P100G-XX-XXXX
Description: The P100G is a general purpose conventional air spray gun designed for glue/adhesive applications of all types. The body and air cap are teflon anodized for easy clean-up and longer life. Guns feature self-adjusting needle packings, inexpensive nozzle replacement and rugged construction. Both have all stainless steel fluid passages and Teflon anodized bodies and air caps.
Specifications:
| Air Inlet: | 1/4" NPSM |
| Fluid Inlet: | 3/8" NPSM |
| Weight: | 20 oz |
| Gun Body: | Teflon hard coated |
Air Cap Specifications:
| Aircap Type | Fan Pattern | CFM @ 50 PSI | Material Type | Pressure/Siphon |
| 2266T | 10" | 12 | Thin - Medium | Siphon |
| 2263 | 14" | 14 | Medium | Pressure |
| 2266-3T | 15" | 16.2 | Medium | Pressure/Siphon |
| 2466 | 13" | 15 | Heavy | Siphon |
| 2167 | 12" | 14.5 | Heavy | Pressure |
| 2267 | 15" | 15 | Heavy | Pressure |
| 2168 | 12" | 14 | Heavy | Pressure |
Material Types:
- Thin: 16 to 20 sec. Zahn #2. - Lacquers, enamels, primers, sealers
- Medium: 21 to 30 sec. Zahn #2. - Automotive base coat enamels, primers epoxies, urethanes automotive clear coat
- Heavy: Over 30 sec. Zahn #2. - Heavy body primers high solid enamels high solid automotive coatings adhesives
| Ref No. | Part No. | Description |
| 1 | 21-2XXX | Air Cap |
| 2 | 31-02XX | Fluid Tip |
| 3 | 31-2201 | Fluid Nozzle Body |
| 4 | 60-L11C | Nozzle Body Carrier |
| 5 | 61-1005 | Seal* |
| 6 | 60-12C | Air Cap Adapter |
| 7 | 60-131 | O-Ring* |
| 8 | 60-1125 | Panther Gun Body Conventional |
| 9 | 98-0109 | Allen Plug |
| 10 | 60-1502 | Fan Control Assembly |
| 11 | 60-119 | Seal* |
| 12 | 60-201 | Rear Bushing |
| 13 | 40-11XX | Fluid Needle |
| 14 | 60-206 | Needle Return Spring (HD)* |
| 15 | 60-209 | Spring Seat* |
| 16 | 60-202 | Fluid Control Knob |
| 17 | 60-104 | Air Inlet Fitting |
| 18 | 60-1510 | Inlet Air Control |
| 19 | 60-1520 | Air Valve Assembly |
| 21 | 60-302 | Air Valve Poppet |
| 22 | 60-125 | Seal* |
| 23 | 61-1003 | Air Valve Spring* |
| 24 | 60-126 | Fluid Inlet |
| 25 | 60-128 | Locknut |
| 26 | 60-124 | Seal* |
| 27 | 60-1400 | Needle Seal* |
| 28 | 60-2101 | Trigger |
| 29 | 60-1033 | Trigger Pivot Set |
