SATA Filter Series 200
Manufacturer: SATA
Part #: 43752, 44404, 141226, 189290, 141218
Description: Economical combi fine filter unit for highest air quality requirements in paint application as well as for air-supplied breathing systems. For installation in spray booths, prep decks and other workshop areas.
Product Benefits:
- Excellent compressed air quality - removes oil, water and particles
- User-friendly and easy to maintain
- Activated charcoal cartridge (third filter stage) removes oil vapours from the breathing air
- 2,000 Nl/min air flow - sufficient air volume to supply two spray guns simultaneously with both clean spraying air and breathing air
- Air inlet: G 1/2" female thread; Air outlet: 1/4" male thread
Options Available:

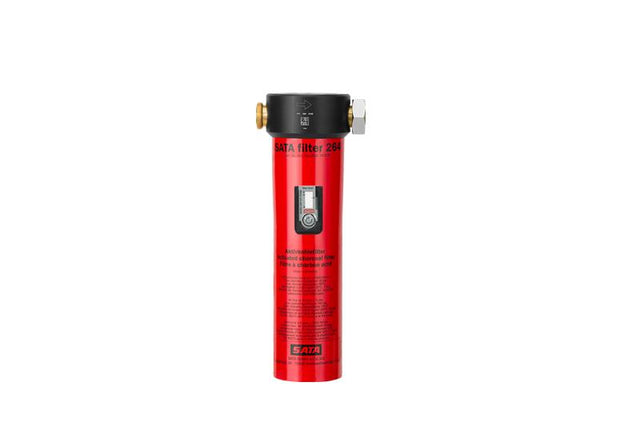

- (141226) - SATA filter 264 single-stage activated charcoal filter to retrofit SATA filter 244 to SATA filter 284
- (43752) - SATA filter 242 L double-stage sinter filter/fine filter without pressure regulator, for pipeline installation (G 1/2" female thread)
- (44404) - SATA filter 244 double-stage sintered filter/fine filter, pressure regulator, outlet module (2 x air coupling/nipple 9 mm)
- (189290) - SATA filter 284 L 3-stage sinter filter/fine filter/activated charcoal filter, for air circuit installation (G 1/2" female thread)
- (141218) - SATA filter 284 triple-stage sintered filter/fine filter/activated charcoal filter, pressure regulator, outlet module (2x air coupling/nipple 9 mm)
Parts and Accessories:
- Premo Flex Hose
- 22160 - Sintered Bronze Cartridge
- 81810 - Fine Filter Cartridge
- 85373 - Activated Charcoal Cartridge
Literature:
