WAGNER® High Pressure Fluid Filter for IceBreaker Pumps (40–150 Series) – DN10 & DN12 Options
WAGNER® High Pressure Fluid Filter for IceBreaker Pumps (40–150 Ser...
WAGNER® High Pressure Fluid Filter for IceBreaker Pumps (40–150 Series) – DN10 & DN12 Options
💸 Protect Your Equipment & Reduce Downtime
Contamination in high-pressure systems leads to clogged tips, poor finishes, and costly downtime. A proper fluid filter is one of the easiest ways to protect your investment and maintain consistent results.
Manufacturer: Wagner
Part Number:
2329024 (DN10 / 270 Bar / 3916 psi)
2329025 (DN12 / 530 Bar / 7687 psi)
Description: WAGNER® High Pressure Fluid Filter for IceBreaker Series Pumps
Maintain clean, consistent fluid delivery and protect your system with this genuine WAGNER® high-pressure fluid filter, designed for IceBreaker piston pumps from 40–150 series.
This filter helps remove debris and contamination from coatings, improving finish quality while protecting downstream components like spray guns and tips.
🔧 Key Benefits
- ✔ Protects spray guns and tips from contamination
- ✔ Improves finish quality and consistency
- ✔ Reduces clogging and downtime
- ✔ Built for high-pressure applications up to 530 bar (7687 psi)
- ✔ Direct fit for WAGNER® IceBreaker piston pumps
⚙️ Available Options
- DN10-PN270 – 270 Bar / 3916 PSI
- DN12-PN530 – 530 Bar / 7687 PSI
🏭 Compatible Systems
Designed for:
- WAGNER® IceBreaker 40 series
- WAGNER® IceBreaker 70 series
- WAGNER® IceBreaker 150 series
- Other compatible WAGNER® high-pressure piston pumps
📦 Specifications
- Manufacturer: WAGNER®
-
Part Numbers:
- 2329024 (DN10-PN270)
- 2329025 (DN12-PN530)
- Application: High-pressure fluid filtration
⚠️ Important Note
Always match filter rating and pressure capacity to your system requirements. Contact us if you need help selecting the correct configuration.
📞 Need Help?
Our team can help you spec the correct filter for your pump and coating system.

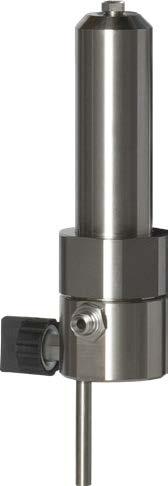

The High-Pressure Filter is for High-Pressure Filter Version IceBreaker Spray Packs only (see list below). These High-Pressure Filters are made from stainless steel and mount directly onto the fluid outlet. They are designed for high flow rates.
Fits the following IceBreaker Outfits:
- 2393649 Wildcat Cart Mount
- 2393651 Wildcat Wall Mount
- 2393653 Puma Cart Mount
- 2393655 Puma Wall Mount
- 2393657 Leopard Cart Mount
- 2393658 Leopard Wall Mount
Parts and Accessories:

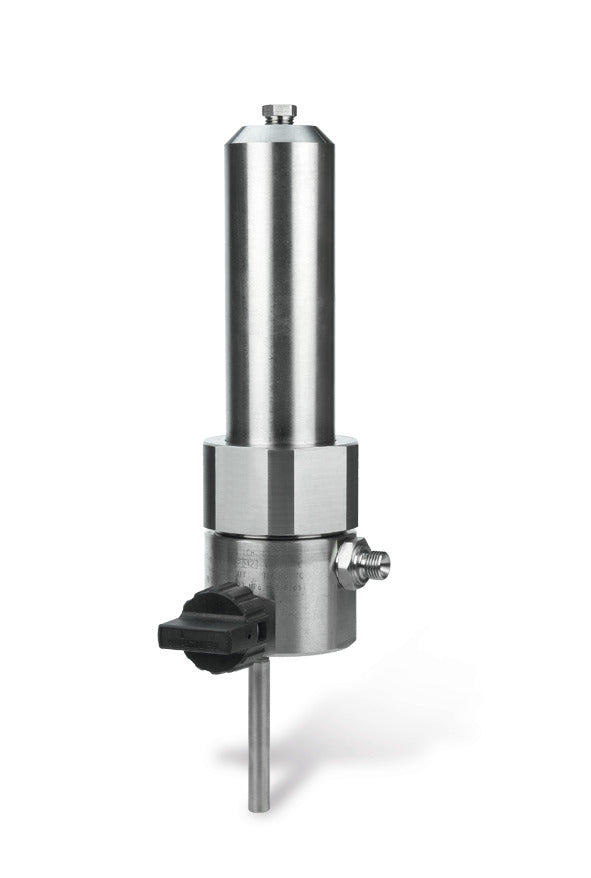

| High Pressure Filter Model 2329024 (270 bar) |
| Ref. No. | Part No. | Description |
| 1 | 2329024 | HP filter DN10-PN270 SSt, complete |
| 2 | 2324542 | Filter housing |
| 3 | 2324543 | Union nut |
| 4 | 2325826 | Reducing double fitting with 2x60° |
| 5 | 9955863 | O-Ring |
| 7 | 2324544 | Distribution housing |
| 8 | 169248 2356467 |
Relief valve Ball valve set (option) |
| 10 | 9894245 | Filter support |
| 11 | - | Filter cartridge * |
| 295721 | * Filter sieve, 200 mesh per inch (fine) | |
| 3514068 | * Filter sieve, 100 mesh per inch (medium), mesh width 0.16mm | |
| 3514069 | * Filter sieve, 50 mesh per inch (rough) | |
| 291564 | * Filter sieve, 20 mesh per inch (rough) | |
| 12 | 3514058 | Cone spring |
| 13 | 2324552 | Outlet pipe |
| 21 | 2325562 | Pressure ring d45 |
| 23 | 2323718 | Hexagon plug |
| 34 | 9992831 | Loctite 542 50 ml; 50 cc |
| 35 | 9998808 | Mobilux EP2 grease |
| 36 | 9992609 | Anti-seize paste tube |
| 37 | 9992616 | Molykote DX grease |

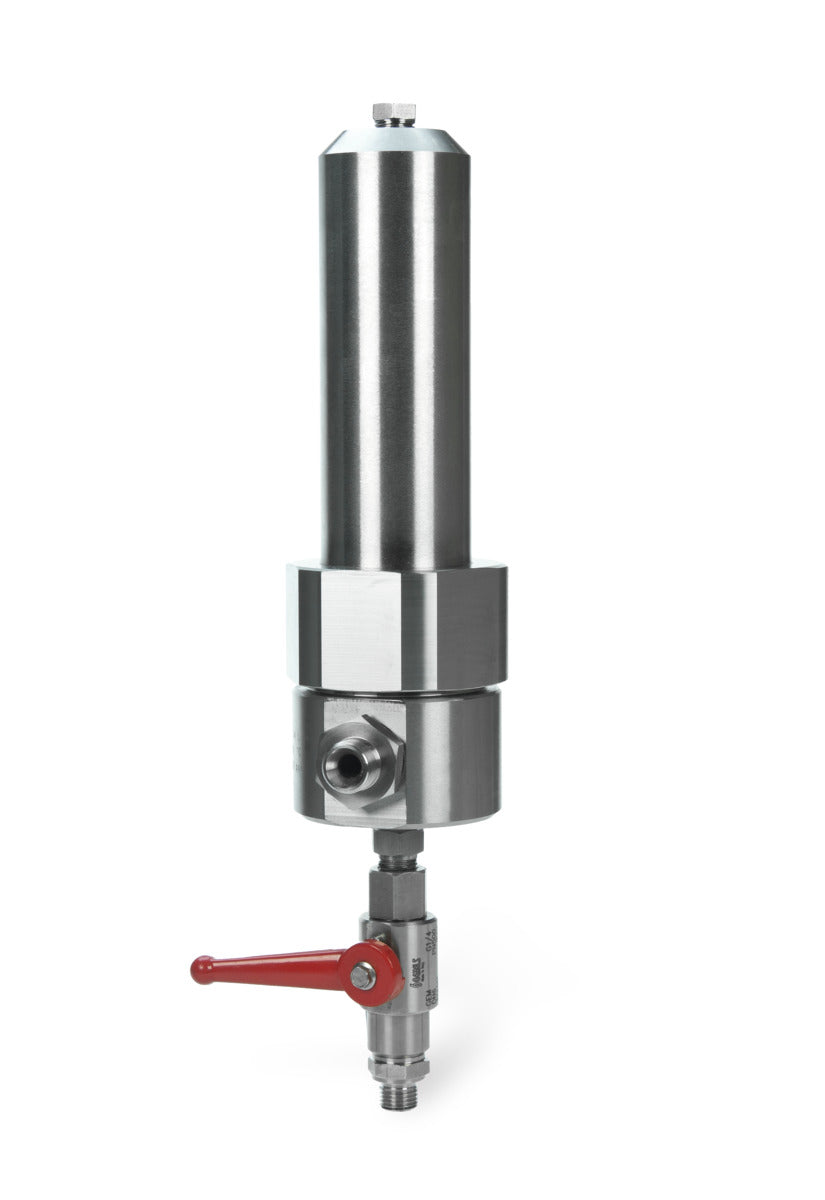

| High Pressure Filter Model 2329025 (530 bar) |
| Ref. No. | Part No. | Description |
| 1 | 2329025 |
HP filter DN12-PN530, complete (Stainless Steel) |
| 2 | 2324542 | Filter housing |
| 3 | 2324543 | Union nut |
| 4 | 2330780 | Fitting DF-MM-G1/2-G3/8-PN530-SSt |
| 5 | 9955863 | O-Ring |
| 7 | 2324670 | Distribution housing for ball valve |
| 10 | 9894245 | Filter support |
| 11 | - | Filter cartridge * |
| 295721 | * Filter sieve, 200 mesh per inch (fine) | |
| 3514068 | * Filter sieve, 100 mesh per inch (medium), mesh width 0.16mm | |
| 3514069 | * Filter sieve, 50 mesh per inch (rough) | |
| 291564 | * Filter sieve, 20 mesh per inch (rough) | |
| 12 | 3514058 | Cone spring |
| 13 | 2328291 | Fitting-DF-MM-R3/8-R1/4-PN530-SSt |
| 20 | 2330156 | Ball valve |
| 21 | 2325562 | Pressure ring d45 |
| 23 | 2323718 | Hexagon plug |
| 33 | 3204611 | Double connector |
| 34 | 9992831 | Loctite 542 50 ml; 50 cc |
| 35 | 9998808 | Mobilux EP2 grease |
| 36 | 9992609 | Anti-seize paste tube |
