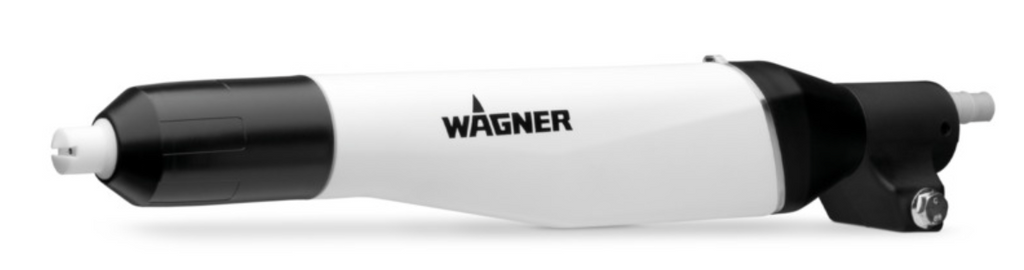

PEA-X1 Corona Automatic Guns
Manufacturer: Wagner
Part #: 2430803, 2430804
Description: The PEA-X1 is the new generation of automatic guns. The powerful high-voltage cascade ensures a very high application efficiency. With the optimized nozzle system, very thin and uniform coating thicknesses are achieved, and the powder consumption is reduced. With various nozzles and accessories, the PEA-X1 can be adapted to a wide range of specific coating tasks. The special modular design of the nozzle system minimizes wear part costs. All electronic components are integrated into the robust gun body, which is designed for a long service life with low service costs. The basic version of the gun is completed with the optionally available gun holder (short) or an XL extension tube in various sizes.
Excellent coating results
The long-lasting and powerful high-voltage cascade ensures a high degree of application efficiency.
Very thin and uniform coating thickness
With its optimized nozzle system, thinner and more uniform coating thicknesses can be realized. This contributes to a reduction in powder consumption.
Flexible Applications
The extensive range of accessories enables the adaptation to specific coating tasks.
Compatibility across the X1 gun families
The nozzles and most accessories can be used in all X1 gun families (PEA-X1, PEM-X1 and PER-X1).
Specifications:
| Application area | Metal coating, Wood coating, Wheel coating |
| Application technique | Corona, Automatic coating |
| Processable materials | Organic powder coatings |
| Certification | Complies with ATEX directive, Complies with CE directive |
| Dimensions | 440 x 48 x 66 mm |
| Weight | 545 g |
| Protection class | IP 54 |
| Polarity | negative or positive |
| Max. powder output | 450 g/min |
Literature:
Parts and Accessories:
