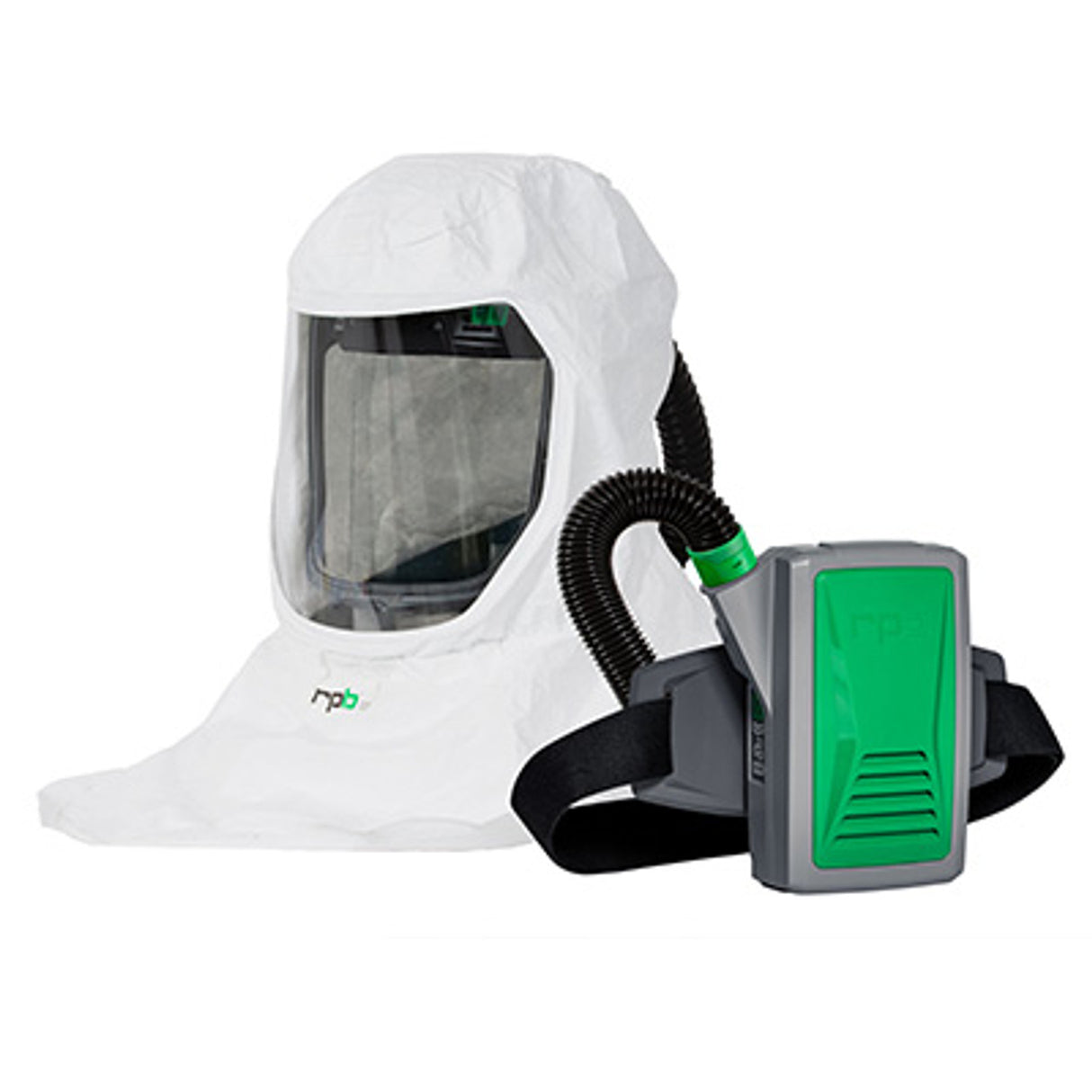

Pirate Brand - RPB® T-Link® Respirator w/ PX5 AIR PAPR Belt Mounted Powered Respirator & High Efficiency Filter

Pirate Brand - RPB® T-Link® Respirator w/ PX5 AIR PAPR Belt Mounted Powered Respirator & High Efficiency Filter

Manufacturer: RPB Safety

Part #: 17-118-12

Description: RPB® T-LINK® RESPIRATOR W/ PX5 AIR PAPR BELT MOUNTED POWERED RESPIRATOR & HIGH EFFICIENCY FILTER, TYCHEM QC HOOD, BUMP CAP, NOT FOR USE IN WET PAINTING APPLICATIONS (NIOSH APPROVAL NO. TC -21C-1121 TYPE C)

• Features a ratcheting head harness and LINK® padding system for a perfect fit and exceptional comfort

• Turns with your head for uninterrupted visibility

• Holds lens away from your face – won’t hit your nose even when looking up

• Does not require fit test

• Available in 2 hood materials:

  • Dupont™ Tychem QC (2000) – Ideal for wet painting applications

  • Dupont™ Tychem SL (4000) – Ideal for powder coating applications due to sealed seams – only available with safety lens

• Available as a supplied air respirator or with PX4 Air PAPR Belt Mounted

• Available with a standard lens or ANSI Z87+ safety lens

• Bump cap standard, optional hard hat version available – Part Number: 17-011-12

• Optional Side Padding System

• Optional Quiet-Link™ sound reduction

• Optional Comms-Link™ communication system available  - requires and fits in standard side pads

• Optional Vision-Link light available – mounts inside hood

PX5 Features & Benefits:

• Ingress protection - certified to IP65 rating in use, and certified to IP67 rating with cleaning kit in place.
• Sleek, considered surfaces for ease of decontamination.
• Lightweight - complete system weighs just 2.55lbs.
• PX5 strategically distributes weight through vertical mounting and contouring to the users back.
• The PX5 unit can easily be removed from the belt with the mount lock system.
• Two belt options available - standard and FR rated.
• Long-life lithium-ion battery,lasts 12+ hours on fan speed 1 (low), 9+ hours on fan speed 2 (medium) and 8+ hours on fan speed 3 (high).
• The battery is sealed inside the unit so it will not disconnect or bump off while operating.
• Our filter media removes up to 99.97% of particulates down to 0.12 microns.
• Filter safety - the filter door cannot mount to the unit unless a filter is fixed in place.
• LED user interface indicates airflow, fan speed and battery level.
• Alarming - visual, audible, and vibrating alarms alert the user to low battery level, or when airflow falls below the minimum requirements due to the filter needing replacing, or an obstructed airflow.
• US and Global patents pending.

Recommendations:

• Replace the pre-filter on PX5 daily to enhance the life of the main filter cartridge.

Literature:

• Brochure
• Manual
• Line Drawing
