Manufacturer: Elcometer
Part Number: G215-DL

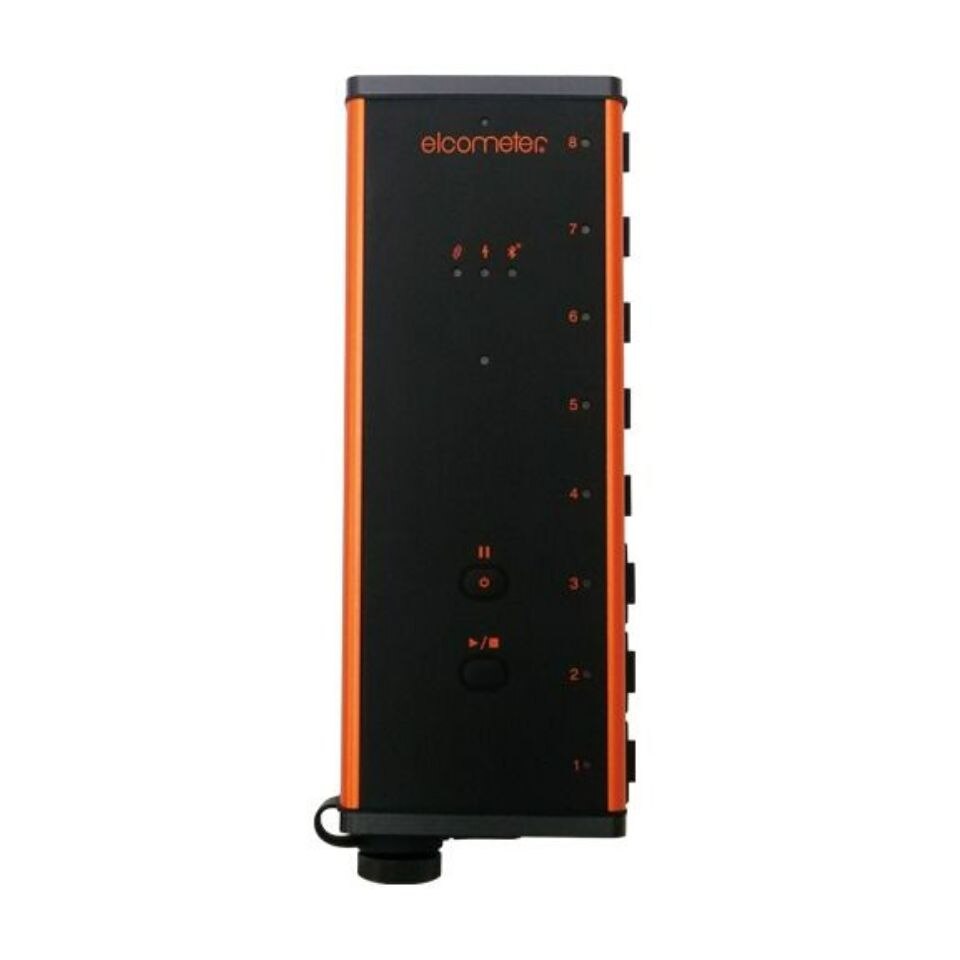

Description: The Elcometer 215 Temperature Profiler w/ Thermal Barrier is the industrial benchmark for capturing accurate curing data. This eight-channel thermal profiler measures both product and air temperatures from –328 °F to 2,372 °F (–200 °C to 1300 °C) with ±0.9 °F accuracy below 932 °F (500 °C). It stores over 1,000,000 readings across 40 runs. Integrated USB-C and long-range Bluetooth® let you start, stop or stream live traces without cracking the barrier.

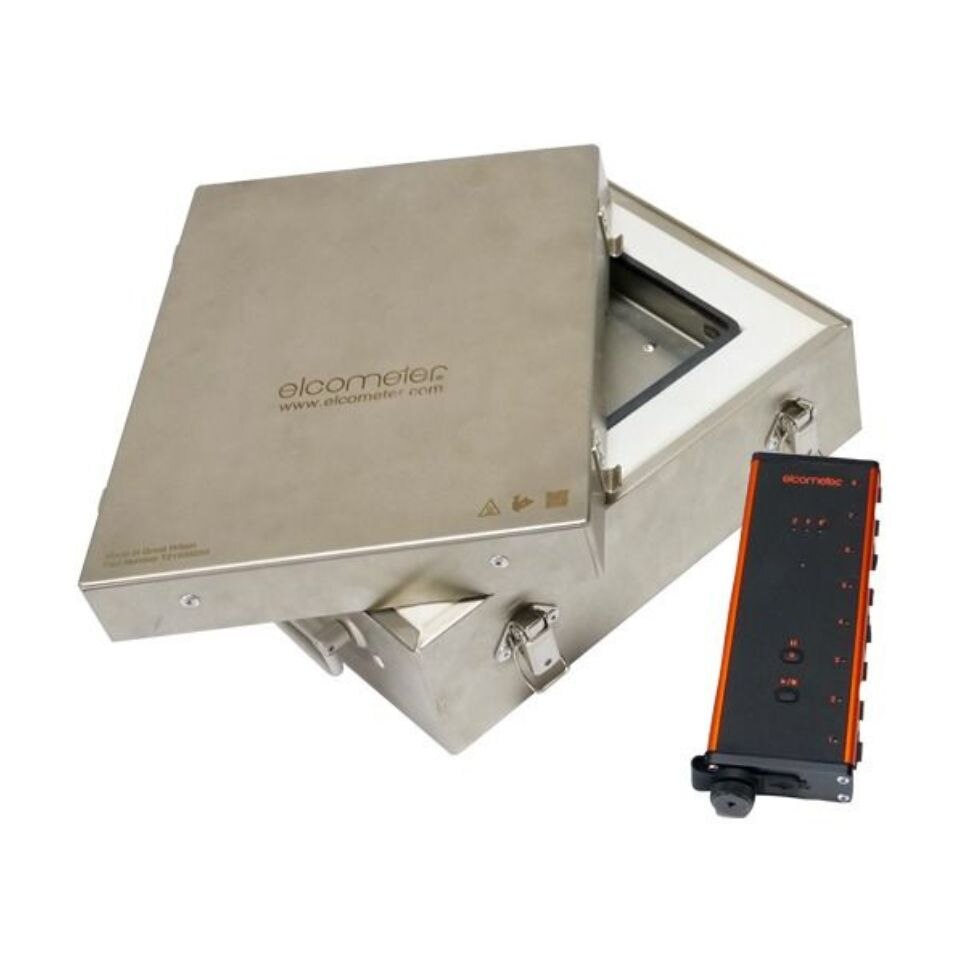

Housed in anodized aluminum and sealed inside a robust thermal barrier, the logger can withstand 212 °F for 180 min or 572 °F for 60 min—ideal for the toughest conveyor or batch ovens. LED status lights and ElcoMaster® software instantly flag pass/fail, calculate cure-index and build professional reports that help you excel in audits and win new business.
- 8 independent channels accept Type K, T, J, N, S, E, B & R probes for simultaneous surface and air logging.
- Adjustable sampling get samples on the schedule that you want. Adjust the sample rate to as low as one second or define a custom time period.
- 150 + hour battery life or continuous USB power keeps your oven profiler running shift after shift.
- Integrated magnets allow you to mount the barrier outside batch ovens; integrated cable guide protects probe leads.
- Works with the free ElcoMaster® app for live dashboards, firmware updates and cloud archiving.
From powder-coat lines to aluminum heat-treat, the Elcometer 215 delivers an actionable temperature profile that cuts energy costs, eliminates rework and proves compliance in seconds.
Specifications:
| Gauge Measurement Range | -200°C to 1300°C (-328°F to 2372°F) | |
| Gauge Operating Temperature | -20°C to 80°C (-4°F to 176°F) without thermal barrier | |
| Accuracy | 0°C to 500°C: ±0.5°C (32°F to 932°F: ±1.0°F) >500°C: ±1.0°C (> 932°F: ±2.0°F) | |
| Resolution | 0.1°C (0.2°F) | |
| Number of Channels | 8 | |
| Sensor Type | Type K, Type T, Type J, Type N , Type S, Type E, Type B, Type R Thermocouples | |
| Measurement Intervals | Adjustable from 1 per second to 1 per hour | |
| Memory | 1,000,000 readings | |
| Multiple Run Capability | Up to 40 profile runs before returning to PC | |
| Batches | Up to 40 sequential batches (25,200 readings per batch) | |
| Display | LED’s | |
| Data Output | USB or Bluetooth®1 | |
| Housing Material | Anodised Aluminium | |
| Power Supply | 3 x AA batteries or USB | |
| Battery Life | 150+ Hours | |
| Thermal Barrier Characteristics |
100°C (212°F) for 180 minutes |
|
| Gauge Dimensions | 191 x 73 x 25mm (7.52” x 2.87” x 0.98”) | |
| Dimensions (in thermal barrier) | 245 x 245 x 115mm (9.65 x 9.65 x 4.5”) | |
| Gauge Weight | 464g (16.4oz) | |
| Weight (in thermal barrier) | 5.62kg (12.4lb) | |
| Packing List | Elcometer 215 Oven Data Profiler, thermal barrier2, ElcoMaster® software download card, USB cable, carry case2, 3 x AA batteries and operating instructions | |
Literature:
Elcometer 215 Temperature Probes
A wide range of K-Type temperature probes is available with 1.5m (4'9"), 3m (9'8") or 6m (19'7") cable length. The Elcometer 215 can be used with a combination of up to 8 probes simultaneously and feature:
- Perfect contact between probe and surface
- Low mass and optimized shape to avoid influence on temperature of sample
- Extremely strong, highly flexible and easy to clean Teflon® coated cables
Air temperature probe - available with either a clamp or magnet
- Clamp Air Probe (1.5m) - T21521275
- Clamp Air Probe (3m) - T21521276
- Magnetic Air Probe (1.5m) - T21521287
- Magnetic Air Probe (3m) - T21521288
- Magnetic Air Probe (6m) - T21521569
Clamp surface probe - small, elegant surface probe for any type of material
Magnetic Surface probe - suitable or use on magnetic surfaces, this probe has a PTFE coated grip for safe removal from the substrate with a flexible metal probe arm
- Magnetic Surface Probe (1.5m) - T99921281
- Magnetic Surface Probe (3m) - T21521282
- Magnetic Surface Probe (6m) - T21521283
Combined Clamp / Magnetic Air and Surface probe - a versatile probe, especially useful when a variety of magnetic and non-magnetic samples is being used
