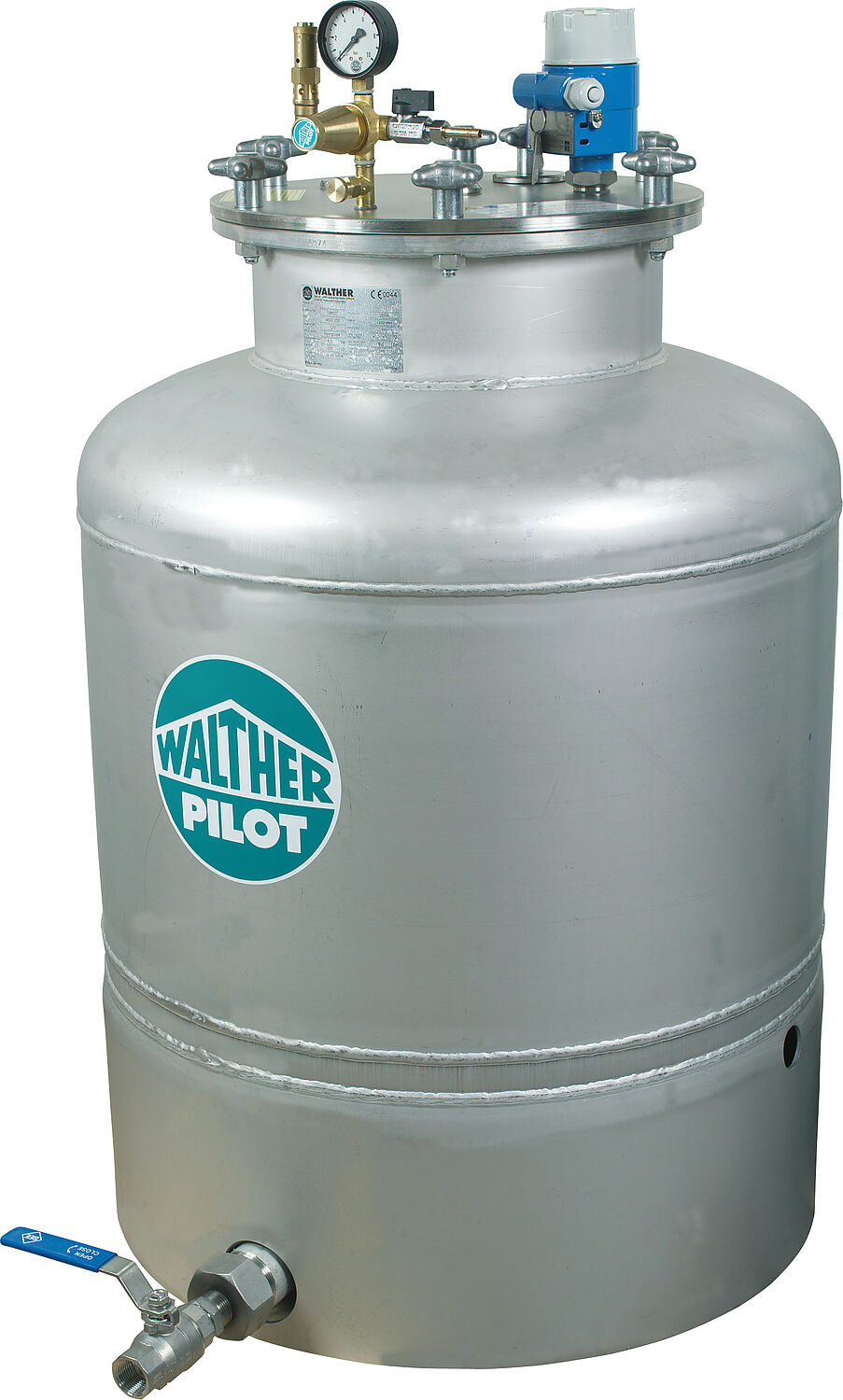

Walther Pilot MDG-250 Pressure Tank

$11,459.39

MDG-250 Standard Material Pressure Tank

Manufacturer: Walther Pilot

Part #: V4428160XXX

Description: 6 bar, 248 L Standard material pressure tank. Stainless steel or galvanized available. Options include manual and electric agitation.

  • For pulsation-free conveying of liquid materials such as paints, lacquers, oils, release agents and resins
  • No escape of vapors or gases to the environment
  • Safe storage of liquids

Included in delivery:

  • Standard material pressure tank type MDG-250.
  • Compressed air inlet fitting assembly with pressure regulator, pressure gauge, safety valve and ventilation.
  • Riser pipe and upper material extraction ball valve.
  • Material filling cap.
  • Agitator (optional).

Specifications:

Capacity 248L
Material Stainless Steel or Galvanized Steel
Operating Pressure max. 6bar
Air Connection R 1/4"-AG
Upper Material Outlet R 3/8" -AG
Inner Diameter 711mm / 28in
Height w/out Agitator 1155mm / 46in
