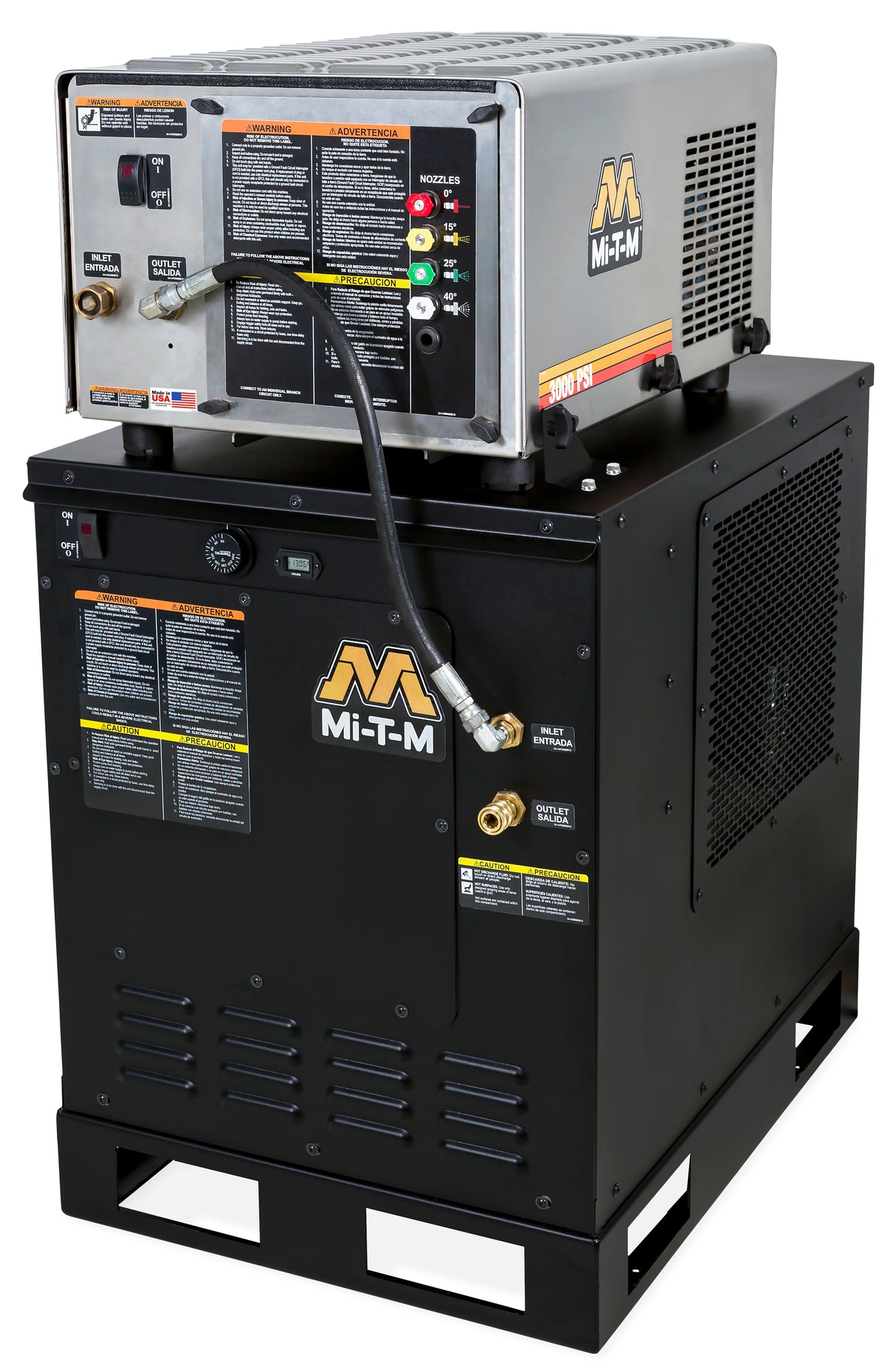

HAE Series All-Electric Belt Drive - HAE-3004-0E4G

$20,955.00


HAE-3004-0E4G

The all-electric HAE Series offers a fast and effective cleaning method without the emission of fuel and exhaust fumes. A patented heat exchange cartridge design provides consistent on-demand hot water, perfect for cleaning food and beverage facilities.

Pump: Factory preset unloader · Stainless-steel and brass unloader valve · Forged brass manifold · Thermal relief valve

Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection · On/off power switch

Frame: Stainless-steel base and frame with rubber isolators

Component: Time delay shutdown

Heat Exchanger: Used for consistent and efficient on-demand hot water · 120°F to 130°F temperature rise above in-take water, obtained within 3 to 5 minutes · Adjustable thermostat · On/off power switch · Powder coated steel frame · Revolutionary cartridge design · Low maintenance, stainless-steel coils in aluminum casings for maximum efficiencies · Eliminates constant cleaning · Eliminates heat loss

Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · External downstream detergent injector, AW-8400-0021, with detergent nozzle · 50-foot x 3/8-inch wire-braided high pressure black hose with quick connects · Professional-grade insulated trigger gun with safety lock-off · Adjustable pressure insulated dual lance



Specifications

  • PSI

    3000

  • GPM

    3.9

  • Horsepower/Motor

    8.0 HP, 460V, 3Ø

  • Unit Amperage

    98.0A

  • Pump

    General

  • Mi-T-M No.

    3-0202

  • Heater kW

    72

  • Temperature Rise

    130°F

Weights & Dimensions

  • Net Weight

    725.00 lbs.

  • Shipping Weight

    830.00 lbs.

  • Length

    36.00 in.

  • Width

    25.00 in.

  • Height

    49.00 in.



Options

  • CX-0069 Auto Start/Stop

    When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart

  • CX-0078 Remote Box

    Adds control box which may be mounted away from unit to control on/off, not available on models with auto start/stop



Limited Warranties:
  • 1 Year Electric Motor
  • 10 Year General Pump
