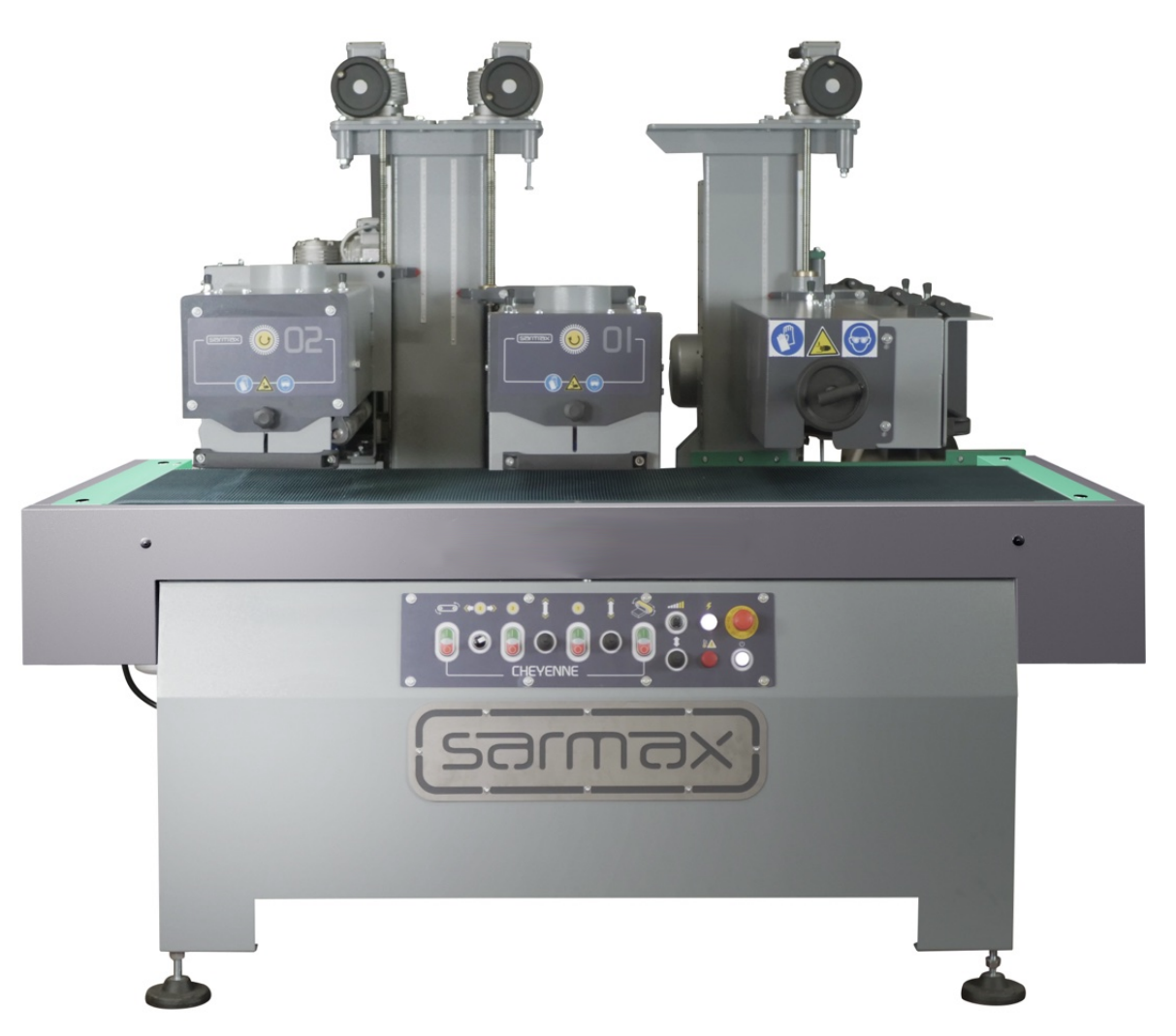

Sarmax Cheyenne Model SP2-400 With Huron (Band Saw) Head

Cheyenne Model SP2-400 With Huron (Band Saw) Head

Manufacturer: Sarmax

Part Number: SP2-400 + HURON HEAD

Description: The Cheyenne structuring/rusticating machines have been designed and manufactured using cutting-edge production technologies able to provide strength, operating precision, and reliability over the years. The motor-shaft group is integrated by a 45 mm diameter to ensure maximum rigidity with high-speed dynamically balanced brushes to work without vibrations.

The machine consists of one Huron sanding head and two independent and separate brushing groups. It is possible to vary the degree of rusticating by setting the working depth:

• The Huron sanding head creates cross-marking (band saw effect)
• The first brushing group (steel brush) is used for roughing
• The second brushing group (silicon carbide brush) is used for finishing

Main Features:

• Dynamically balanced high-speed brushes for vibration-free operation

• Vertical sliding system with high-precision guides

• Adjustable double-spring pressers with 2” Ø galvanised-steel rollers

• Large diameter brushes 8” offering considerable advantages such as low operating temperature, longer brush life, deeper rustication and higher working speed

• Motor unit with integrated shaft Æ 1 3/4” for extra strength and rigidity

• Side opening for large panel passage

• Safety front sliding guards

EX WORKS Sarmax Italy - There will be customs/VAT due prior to shipping. You will be contacted with a freight quote for shipping. Forklift required at time of delivery

N°2 Brushes for distressing

• 1 brush in metal for roughing on soft wood

• 1 brush in metal for roughing on hard wood

• 1 brush in tynex for finishing grit 60

• 2 brushes with abrasive inserts in different grains



N°1 Huron Head for cross-marking (band saw effect)

Max work-piece width	15.74 inches
Max work-piece thickness	11.8 inches
Min work-piece length	15.7 inches
Variable feeding speed by inverter	15 – 150 feet/min
Sanding belt width	3,1 inches

Huron head with inclination -10° +10°

N°2 marling belts with grit 12 and 24

Electrics according to UL/CSA norms

Packing in wooden box with vacuum seal bag



Samples made with Huron head:

Specifications:

Approx. overall dimensions	(L) 6.3 x (W) 4.3 x (H) 5.2 feet
Weight	approx. 1300 lb
Max work-piece width	15.74 inches (400 mm)
Max work-piece thickness	11.8 inches (300 mm)
Min work-piece length	15.7 Inches (400 mm)
Number of brushes	2
Brush diameter	max 8 inches (200 mm)
Variable brush speed with inverter	200-1000 rpm
Brushes rotation	clockwise & anticlockwise
Suction hoods (brushes)	2" x 6"
Suction hood (Huron head)	1" x 6"
Variable feeding speed by inverter	15-150 feet/minute
Brush adjustment	manual by hand-wheel
Brush position	mech. displayed
Roller pressure	adjustable by spring
Motor power SP2-400	7.2 Kw (each brush)
Total power SP2-400 + Huron head	8.3 Kw
Operating power voltage	208/230 V
Operating frequency	60 Hz
