Control Valve Kit
Manufacturer: Binks
Part #: 250647
Description: Control Valve Kit.

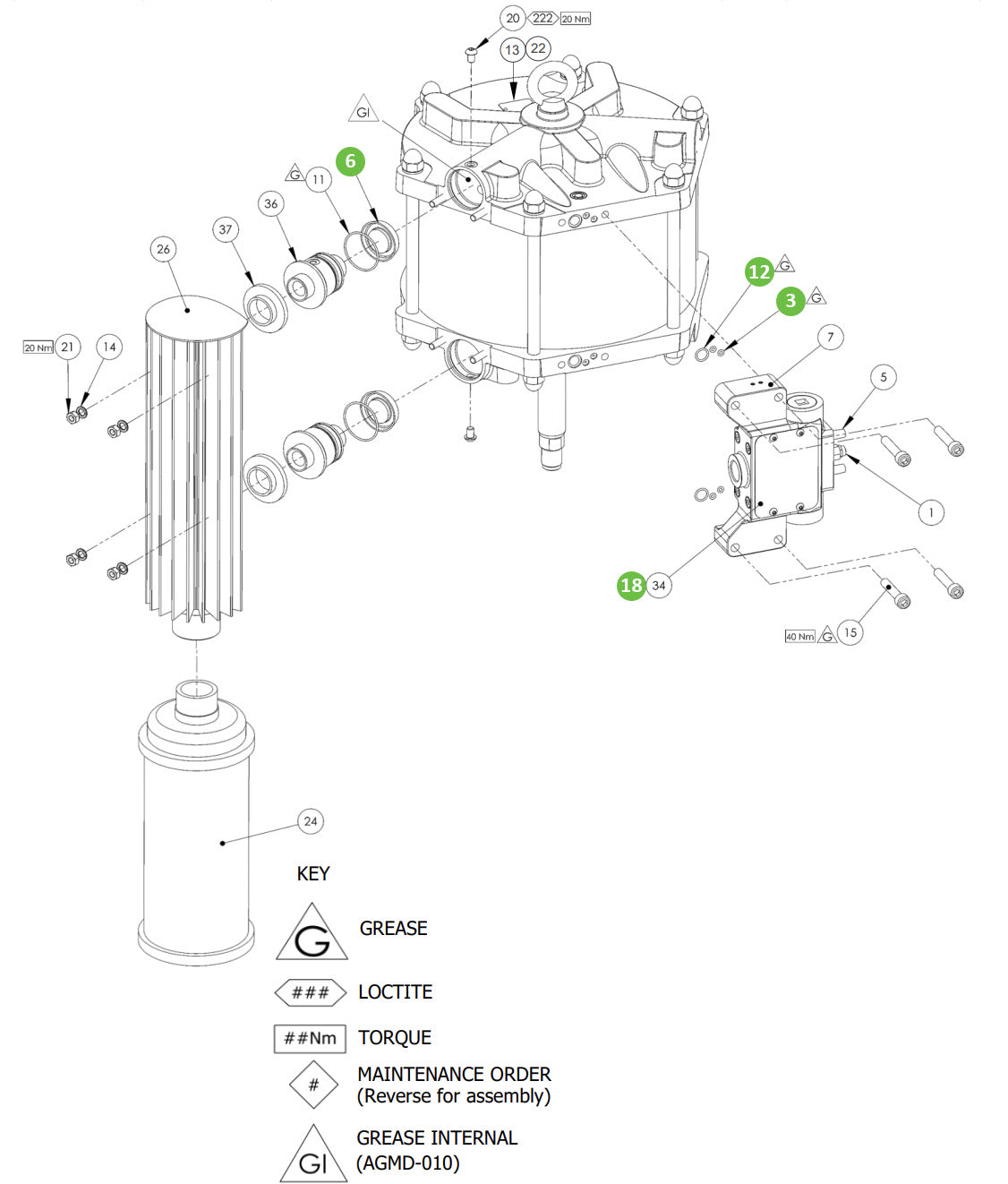

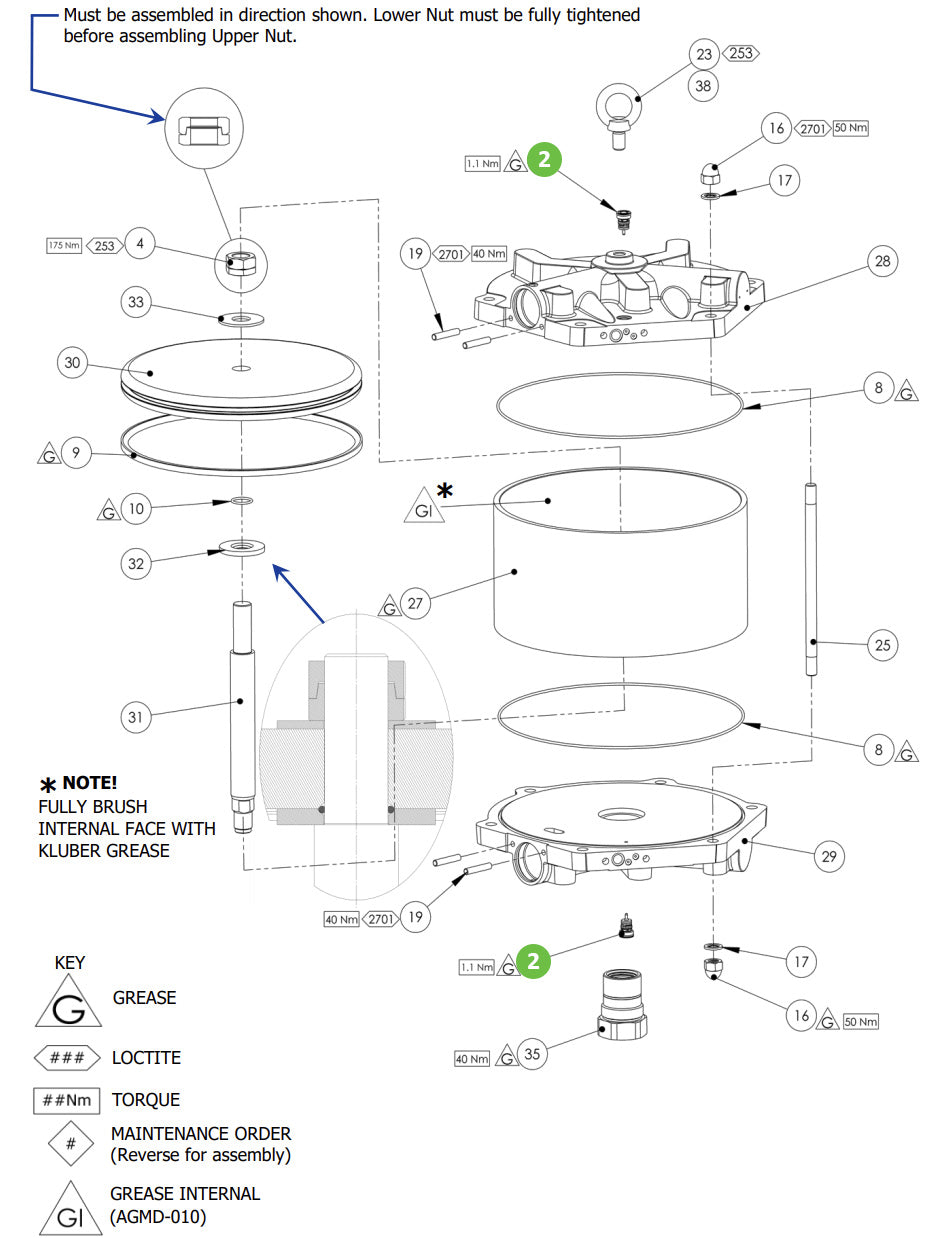

| Ref. No. | Part No. | Description |
Qty |
| 1 | 0114-014774 | MINI BLOW-OFF VALVE, 8 BAR | 1 |
| 2*+ | 0115-010037 | POPPET ASSEMBLY | 2 |
| 3*+ | 0115-010051 | O-RING, Ø4 x 2 | 4 |
| 4 | 0115-010348 | LOCKNUT, M24 x 1.5 | 1 |
| 5 | 0115-010443 | VALVE MUFFLER | 2 |
| 6*+ | 0115-010463 | QEV PISTON | 2 |
| 7 | 0115-010471 | MAIN VALVE ASSEMBLY | 1 |
| 8* | 162738 | O-RING, Ø327 x Ø3 | 2 |
| 9* | 162739 | PISTON SEAL | 1 |
| 10* | 161451 | O-RING, Ø23.47 x 2.62 | 1 |
| 11* | 162765 | O-RING, Ø46 x 2 | 2 |
| 12*+ | 162766 | O-RING, Ø13 x 2 | 2 |
| 13 | 164838 | RIVET | 2 |
| 14 |
165108 |
SPRING WASHER, M8 | 4 |
| 15 | 165567 | CAP HEAD SCREW, M10 X 50 | 4 |
| 16 | 165981 | DOME NUT, M14 | 12 |
| 17 | 165982 | SPRING WASHER, M14 | 12 |
| 18+ | 165991 | BUTTON HEAD CAP SCREW, M5 x 8 | 4 |
| 19 | 165994 | STUD, M8 | 4 |
| 20 | 177000 | BUTTON HEAD CAP SCREW, M8x12 | 2 |
| 21 | 192049 | HEX NUT, M8 | 4 |
| 22 | 192147 | NAMEPLATE | 1 |
| 23 | 193689 | EYE BOLT, M16 | 1 |
| 24 | 192509 | SILENCER, 1.5" | 1 |
| 25 | 193150 | AIR MOTOR TIE ROD | 6 |
| 26 | 193159 | EXHAUST MANIFOLD ASSEMBLY | 1 |
| 27 | 193164 | CYLINDER | 1 |
| 28 | 193165 | UPPER END CAP | 1 |
| 29 | 193166 | LOWER END CAP | 1 |
| 30 | 193167 | PISTON |
1 |
| 31 | 193168 | PISTON ROD | 1 |
| 32 | 193169 | WASHER, Ø60 | 1 |
| 33 | 193170 | WASHER, Ø60 | 1 |
| 34 | 193247 | COVER PLATE | 1 |
| 35* | 193249 |
MOTOR ROD CARTRIDGE ASSEMBLY | 1 |
| 36 | 193320 | QEV CAP | 2 |
| 37 | 193363 | EXHAUST GASKET | 2 |
| 38 | 165100 | SPRING WASHER, M16 | 1 |
NOTE:
* - Parts included in the Air Motor Overhaul Kit 250682
+ - Parts included in the Control Valve Kit 250647

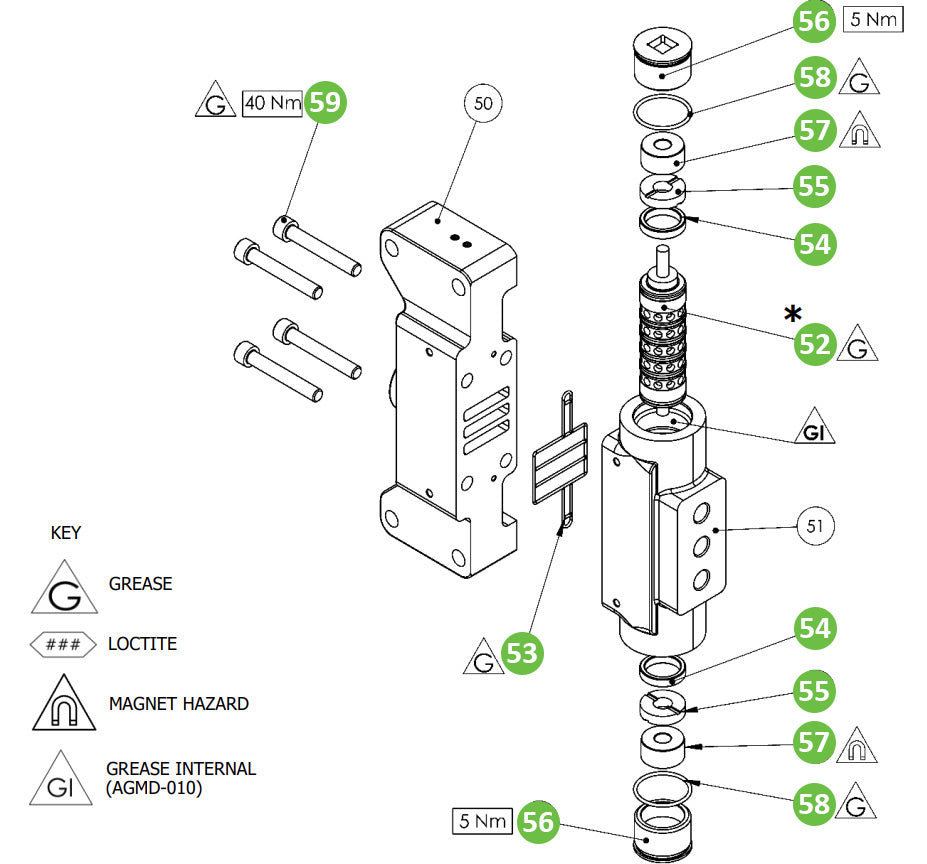

Main Valve Assembly Parts List 0115-010471
| Ref. No. | Part No. | Description |
Qty |
| 50 | 0115-010456 | MANIFOLD ASSEMBLY | 1 |
| 51 | 0115-010454 | VALVE BLOCK | 1 |
| 52+ | 0115-010424 | SPOOL AND SLEEVE ASSEMBLY | 1 |
| 53*+ | 0115-010460 | GASKET | 1 |
| 54+ | 0115-010431 | SPACER | 2 |
| 55+ | 0115-010427 | BUMPER | 2 |
| 56+ | 0115-010425 | VALVE BLOCK END CAP | 2 |
| 57+ | 0115-010428 | MAGNET | 2 |
| 58*+ | 162767 | O-RING, Ø30 x 2 | 2 |
| 59+ | 165990 | CAP HEAD SCREW, M8 x 55 | 4 |
| [52]* | 162774 | O-RING, Ø23.52 x 1.78 | 6 |
* - NOTE: Spool and sleeve assembly (52) is a matched set and cannot be interchanged with other spool and sleeve assemblies.
* - Parts included in the Air Motor Overhaul Kit 250682
+ - Parts included in the Control Valve Kit 250647
