Binks AX55S Air Motor
Binks AX55S Air Motor

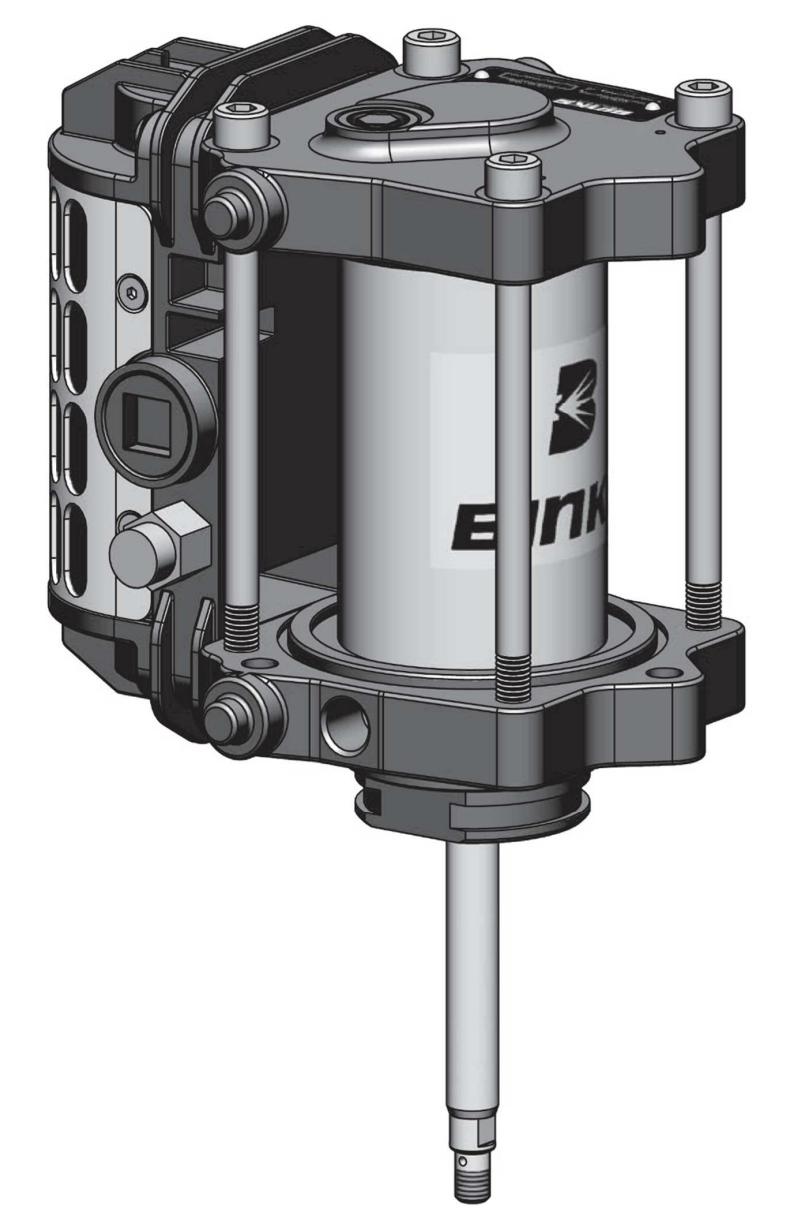

AX55S Air Motor
Manufacturer: Binks
Part #'s: AX55S, AX55S-5 & AX55S-AC
Description: Air Motor
- AX55S = Air Motor, 8 Bar
- AX55S-5 = Air Motor, 5 Bar
- AX55S-AC = Air Motor, Acid Compatible
AX55S Specifications:
| Maximum air inlet pressure: | 8 bar [116 psi] |
| Maximum recommended continuous cycle rate [cycles/min]: | 20 |
| Air inlet connection: | Ø12mm Hose |
| Piston Diameter: | 55 mm [2.2 in] |
| Stroke length: | 75 mm [3.0 in] |
Note: Specs. may be different for parts AX55S-5 AND AX55S-AC
| Ref. No. | Part No. | Description |
Qty |
| 1+ | 0115-010023 | EXHAUST COVER SCREEN | 1 |
| 2+ | 0115-010022 | EXHAUST COVER | 1 |
| 3+∆ | 0115-010026 | BUTTON HEAD CAP SCREW | 4 |
| 4+∆ |
0115-010073 |
BUTTON HEAD CAP SCREW | 8 |
| 5+ | 0115-010019 | QUICK EXHAUST VALVE CAGE | 2 |
| 6+●◊□ | 0115-010021 | O-RING | 2 |
| 7+●□ | 0115-010020 | DIAPHRAGM | 2 |
| 8+∆ | 0115-010024 | COUNTER SUNK CAP SCREW | 4 |
| 9+ | 0115-010097 | VALVE BLOCK | 1 |
| 10+∆ | 0115-010107 | PIPE PLUG | 1 |
| 11+□ | 0115-010018 | VALVE BLOCK END CAP | 2 |
| 13+□ |
0115-010017 |
MAGNET | 2 |
| 14+●□ | 0115-010016 | BUMPER | 2 |
| 15+□ | 0115-010015 | SPOOL AND SLEEVE ASSEMBLY |
1 |
| 16+ | 0114-014774 | SAFETY VALVE |
1 |
| 17+●◊□ | 0115-010049 | O-RING |
4 |
| 18●◊□ | 0115-010051 | O-RING |
4 |
| 19● | 0115-010037 | POPPET ASSEMBLY |
2 |
| 20 | 0115-010004 | UPPER END CAP MACHINING |
1 |
| 21∆ | 0115-010029 | SOCKET HEAD CAP SCREW |
4 |
| 22●◊ | 0115-010086 | CYLINDER SEAL, 55mm |
2 |
| 23 |
0115-010007 |
CYLINDER, 55mm |
1 |
| 24∆ | 0115-010096 | LOCKNUT |
1 |
| 25●◊ | 0115-010036 | SEALING RING |
1 |
| 26∆ | 0115-010035 | FLAT WASHER |
2 |
| 27 | 0115-010085 | PISTON, 55mm |
1 |
| 28●◊ | 0115-010025 | PISTON SEAL, 55mm |
1 |
| 29 | 0115-010034 | MOTOR ROD |
1 |
| 30 | 0115-010006 | LOWER END CAP MACHINING |
1 |
| 31● | 0115-010657 | MOTOR ROD CARTRIDGE ASSEMBLY |
1 |
| 32 | 0115-010181 | 90° SWIVEL ELBOW, Ø12mm TUBE - G3/8" MALE | 1 |
NOTE:
+ Items available separately or as a complete assembly: 0115-010660.
● Parts are included in 0115-010214 AX55 Repair Kit.
◊ Parts are included in 0115-010216 AX55 Seal Kit.
□ Parts are included in 0115-010226 Air Motor Valve Repair Kit.
∆ Parts are included in 0115-010213 AX55 Hardware Kit.
Literature:
Binks charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
Contact: 503-545-3176
