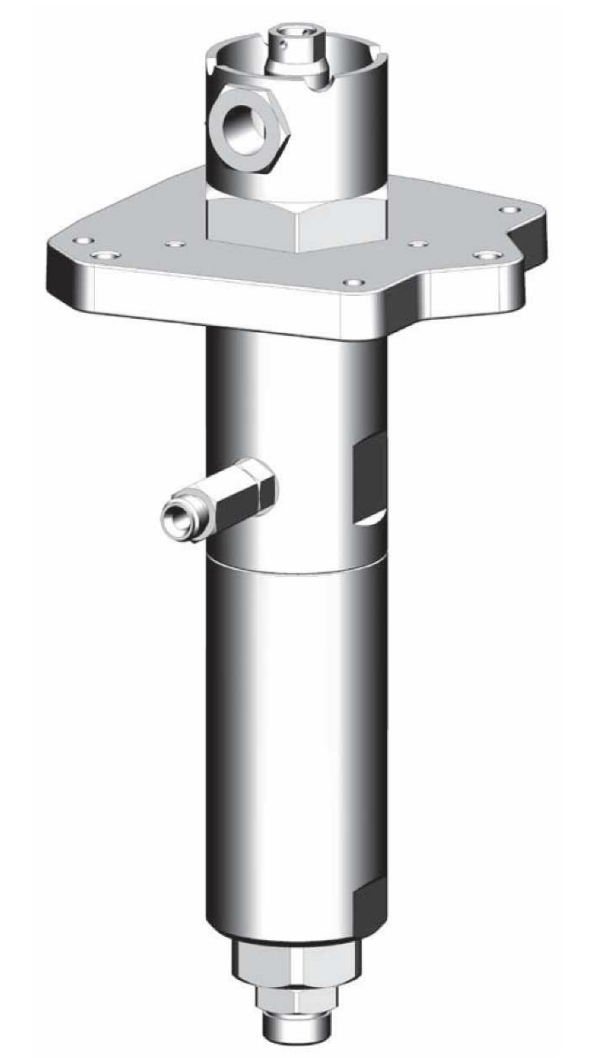

Binks FX12UC Fluid Section (U-Cups)
Precio normal
Precio unitario
/
Agotado
Los gastos de envío se calcularán al momento de pagar.
Binks FX12UC Fluid Section (U-Cups)
Precio normal
Precio unitario
/
Agotado
Fluid Section (U-Cup seals)
Manufacturer: Binks
Part #: FX12UC
Description: Fluid Section (U-Cup seals)
Specifications:
| Maximum fluid pressure: | 248 bar |
| Displacement per cycle: | 72 cc |
| Output @ 60 cycles / min: | 4.3 l/m [1.1 gal/m] |
| Fluid inlet size: | 3/4" NPS(m) |
| Fluid outlet size: | 3/8" BSP(m) & 3/8" NPS(m) |
| Weight: | 6.4 kg [14.1 lbs] |
| Wetted parts materials of construction: | Stainless Steel, Tungsten Carbide, PTFE, Polyethylene, Leather, Ceramic |
| Ref. No. | Part No. | Description |
Qty |
| 1 | 0115-010232 | SOLVENT CUP |
1 |
| 2 | 0115-010294 | SIGHT GLASS |
1 |
| 3•+ | 0115-010231 | O-RING |
1 |
| 4• |
0115-010230 |
SPACER | 1 |
| 5 •+ | 0115-010161 | UPPER U-CUP SEAL | 2 |
| 6 | 0115-010229 | UPPER U-CUP RETAINER | 1 |
| 7 | 0115-010205 | PUMP ADAPTER PLATE | 1 |
| 8•+ | 0115-010143 | PUMP TUBE SEAL |
2 |
| 9• | 0115-010162 | UPPER U-CUP SPACER | 1 |
| 10 | 0115-010137 | UPPER PUMP TUBE |
1 |
| 11 | 0115-010269 | CHECK VALVE ASSEMBLY | 1 |
| 12 | 0115-010142 | PUMP ROD | 1 |
| 13• | 0114-014022 | UPPER BALL 10mm | 2 |
| 14•+ | 0115-010144 | UPPER SEAT SEAL | 3 |
| 15• | 0115-010145 | UPPER SEAT | 2 |
| 16 | 0115-010146 | UPPER SEAT RETAINER | 1 |
| 17• | 0115-010164 | LOWER U-CUP SPACER | 1 |
| 18•+ | 0115-010163 | LOWER U-CUP SEAL | 1 |
| 19 | 0115-010138 | LOWER PUMP TUBE | 1 |
| 20•+ | 0115-010140 | LOWER BALL CAGE SEAL | 1 |
| 21 | 0115-010139 | LOWER BALL CAGE |
1 |
| 22• | 0114-014025 | LOWER BALL 18mm |
1 |
| 23•+ | 0115-010147 | LOWER SEAT SEAL | 1 |
| 24• | 0115-010148 | LOWER SEAT | 1 |
| 25 | 0115-010149 | INLET 3/4" NPS(m) FX12/FXL12 | 1 |
| 26 | 0115-010258 | FLUID OUTLET FITTING |
1 |
| 27• | 0115-010270 | CHECK VALVE SPRING | 1 |
| 28 | 0115-010271 | CHECK VALVE HOUSING | 1 |
| 29 | 0114-018251 | SCREW SET | 2 |
| • | Parts are included in Repair Kit | 0115-010305 |
| + | Parts are included in Seal Kit | 0115-010304 |
Literature:
Binks charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
Contact: 503-545-3176
