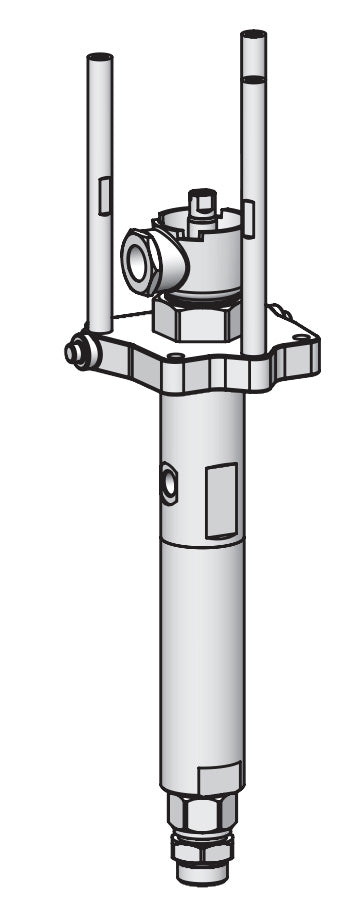

FX4 Fluid Section (PTFE/UHMWPE seals)
Manufacturer: Binks
Part #: FX4PU
Description: FX4 Fluid Section (PTFE/UHMWPE seals)
Specifications:
| Maximum fluid pressure: | 248 bar |
| Displacement per cycle: | 72 cc |
| Output @ 60 cycles / min: | 4.3 l/m [1.1 gal/m] |
| Fluid inlet size: | 3/4" NPS(m) |
| Fluid outlet size: | 3/8" BSP(m) & 3/8" NPS(m) |
| Weight: | 6.4 kg [14.1 lbs] |
| Wetted parts materials of construction: | Stainless Steel, Tungsten Carbide, PTFE, Polyethylene, Leather, Ceramic |
| Ref. No. | Part No. | Description |
Qty |
| 1 | 0115-010646 | PUMP TIE ROD | 3 |
| 2 |
0115-010059 |
SOLVENT CUP | 1 |
| 3 |
0115-010060 |
SIGHT GLASS | 1 |
| 4•+ |
0115-010061 |
SOLVENT CUP SEAL | 1 |
| 5 |
0115-010062 |
PACKING ADAPTER | 1 |
| 6+ |
0115-010058 |
WAVE SPRING |
1 |
| 7 |
0115-010204 |
ADAPTER PLATE MACHINING | 1 |
| 8•+ |
UPPER PACKING SET (PTFE/LEATHER) UPPER PACKING SET (PTFE/UHMW) UPPER PACKING SET (PTFE) |
1 | |
| 9 | 0115-010111 | PACKING SPRING | 2 |
| 10 |
0115-010055 |
UPPER PUMP TUBE | 1 |
| 12 |
0115-010063 |
PUMP ROD | 1 |
| 13+ |
0114-014745 | UPPER BALL 6mm | 1 |
| 14+ |
0115-010065 |
ROD SEAT SEAL | 1 |
| 15+ |
0115-010066 |
ROD SEAT | 1 |
| 16 |
0115-010067 |
ROD SEAT NUT | 1 |
| 17•+ |
0115-010064 | PUMP TUBE SEAL | 1 |
| 18•+ |
LOWER PACKING SET (PTFE/LEATHER) LOWER PACKING SET (PTFE/UHMW) LOWER PACKING SET(PTFE) |
1 | |
| 19 |
0115-010056 |
LOWER PUMP TUBE | 2 |
| 20•+ | 0115-010068 | LOWER SEAT SEAL | 1 |
| 21 |
0115-010057 | LOWER BALL CAGE |
1 |
| 22+ |
0114-014237 | 15mm LOWER BALL | 1 |
| 23+ | 0115-010069 | LOWER SEAT | 1 |
| 24 |
INLET 3/4" NPS(m) FX4 ONLY INLET 1/2" NPS(m) FXL4 ONLY |
1 | |
| 26 |
0115-010256 |
FX4 CHECK VALVE ASSEMBLY - FXL4 ONLY | 1 |
| 27 | 0115-010258 |
FLUID OUTLET FITTING | 1 |
| 28+ |
0115-010259 |
SEAL | 1 |
| 29+ |
0115-010066 |
ROD SEAT | 1 |
| 30+ |
0115-010065 |
ROD SEAT SEAL | 1 |
| 31+ |
0114-014745 |
UPPER BALL 6mm | 1 |
| 32+ |
0115-010087 |
CHECK VALVE SPRING | 1 |
| 33 | 0115-010257 |
CHECK VALVE HOUSING | 1 |
| • | Parts are included in Seal Kit (PTFE/UHMWPE). | 0115-010225 |
| + | Parts are included in Repair Kit (PTFE/UHMWPE). | 0115-010388 |
Parts for FX4PL & FX4PP:
- FX4PL Seal Kit (PTFE/LEATHER) 0115-010221
- FX4PP Seal Kit (PTFE) 0115-010223
- FX4PL Repair Kit (PTFE/LEATHER) 0115-010222
- FX4PP Repair Kit (PTFE) 0115-010224
