Wagner High Pressure Manual Paint Pressure Regulators T092 Series

Manual High Pressure Paint Pressure Regulators T092 Series

Manufacturer: Wagner

Part Number: T092.00X

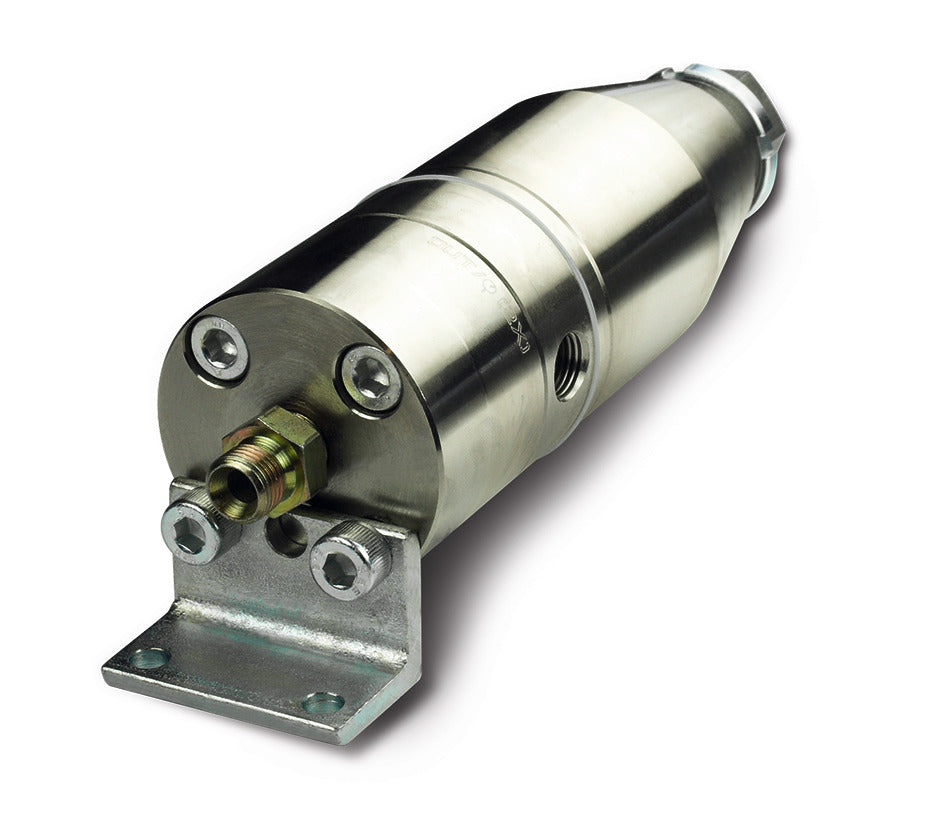

Description: Manual adjustable high pressure regulator. Made from stainless steel and Ultra-high density polyethylene diaphragms suitable for almost all material.

Versions Available:

Part No.	Range (bar)	Max Material Delivery Rate (cm³/min)	Body Material	Diaphragm Set
T092.00AI	10-60	3100	SSt	T9061.00
T092.00BI	30-120	3100	SSt	T9061.00



Specifications:

Max. inlet pressure	300 bar
Sealing material	UHMW-PE
Material inlet	G 1/4"–F
Material outlet	G 1/4"–F



Parts and Accessories:

Spare Parts List T092.00AI, T092.00BI

Ref No.	Part No.	Description	QTY
1	B640.03A	Lower reducer body	1
2	B637.03	Ball guide	1
3	H261.03	Spring	1
4	K828.04	Carbide D5 ball	1
5	L130.06	EPDM O-ring	2
6	T6008.00	Complete ball seat body	1
7	B391.03	Shutter stem	1
8	B639.03	Main reducer body	1
9	B641.03	Product diaphragm disk	1
10	G760.07	Diaphragm	2
11	B148.03	Small piston	1
12	B145.12	Intermediate flange	1
13	B634.52	Spring guide	1
14	H266.02	Cup spring (see exploded view)	-
15	B147.12	Upper reducer body	1
16	K303.62A	Ring nut M25	1
17	B594.03	Adjustment screw	1
18	E506.62	Pressure reducer support	1
19	M801.03B	SSt 1/4 Nipple	1
20	K109.62	Socket screw 8x80	2
21	K193.62	Socket screw M8x70	2
	T9061.00	Seal gasket set	-



Literature:

• Manual
