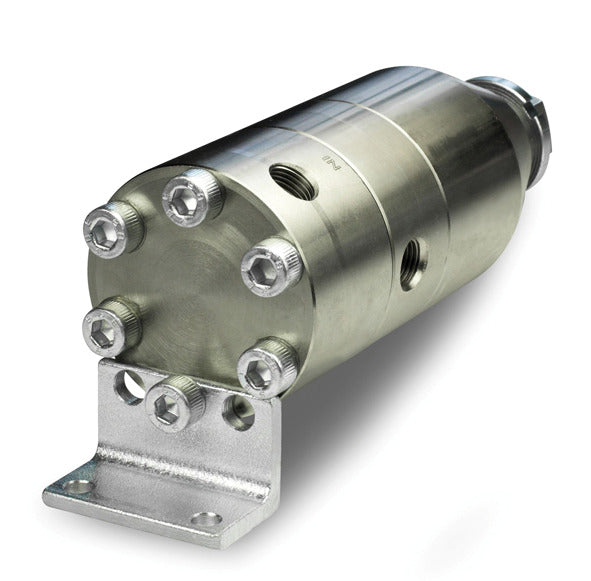

Wagner High Pressure Manual Paint Pressure Regulators T090 Series
Precio normal
Precio unitario
/
Agotado
Los gastos de envío se calcularán al momento de pagar.
Wagner High Pressure Manual Paint Pressure Regulators T090 Series
Precio normal
Precio unitario
/
Agotado
Manual High Pressure Paint Pressure Regulators T090 Series
Manufacturer: Wagner
Part Number: T090.00X
Description: Manual adjustable high pressure regulator – piston type. Price attractive version made from zinc-plated steel for use of solvent based material. Version T090.00CR with tungsten-carbide valve seat for extended lifetime.
Versions Available:
| Part No. | Range (bar) |
Max Material Delivery Rate (cm³/min) |
Body Material | Diaphragm Set |
| T090.00A | 10-60 | 800 | CS | T9062.00 |
| T090.00B | 30-120 | 800 | CS | T9062.00 |
| T090.00C | 40-180 | 800 | CS | T9062.00 |
| T090.00MAG | 10-60 | 1000 | CS | T9062.00A |
| T090.00CR | 40-180 | 800 | CS | T9062.00 |
Specifications:
| Max. inlet pressure | 300 bar |
| Sealing material | UHMW-PE |
| Material inlet | G 1/4"–F |
| Material outlet | G 1/4"–F |
Parts and Accessories:
| Spare Parts List T090.00A, T090.00B, T090.00C |
| Ref No. | Part No. | Description | QTY |
| 1 | B589.22 | Lower reducer body | 1 |
| 2 | B590.22 | Main reducer body | 1 |
| 3 | B591.22 | Upper reducer body | 1 |
| 4 | T6044.00 | Ball seat | 1 |
| 5 | B594.03 | Adjustment screw | 1 |
| 6 | B595.53 | Shutter piston | 1 |
| 7 | B619.03 | Shutter stem | 1 |
| 8 | E506.62 | Pressure reducer support | 1 |
| 9* | H218.03A | Valve spring | 1 |
| 10 | H266.02 | Cup spring | - |
| 11 | K303.62A | Ring nut M25 | 1 |
| 12 | K813.04 | Ball | 1 |
| 13* | L149.06 | O-ring | 2 |
| 14* | L418.08 | Gasket | 1 |
| 15 | K139.62 | Socket screw 8x90 | 6 |
| T9062.00 | Seal gasket set (includes items marked *) |
