Ransburg Number 2 Deuce Cart Finishing System

$17,106.00

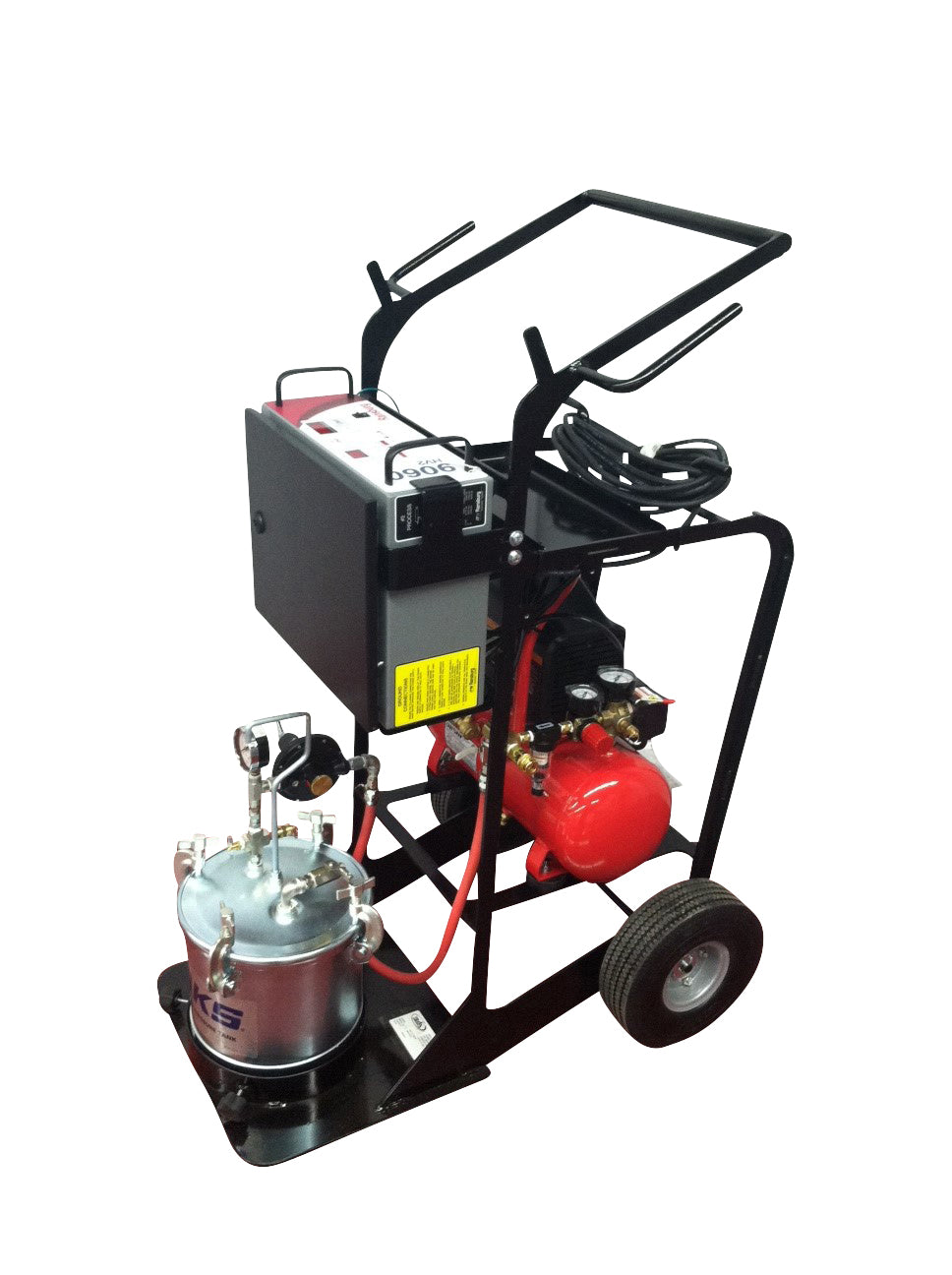

Ransburg Deuce Cart


On-Site Finishing System



The  #2 Gun’s unique design provides transfer efficiency of 95% or


greater, depending on coating.



Manufacturer: Carlisle Ransburg


Product Number: 79297-0X


Description:


The Ransburg Number #2 Gun is the most efficient applicator for on-site finishing. The Gun’s high transfer efficiency provides improved productivity, reduced operator fatigue and higher quality finishes. Reduced labor and material costs, as well as reduced clean up are just a few of the money saving benefits.


The portable Deuce Unit, utilizing the Number 2 Gun, power supply, cart and accessories, makes it well suited for a wide variety of applications. It goes where you need to go. Its portability makes it perfect for independent contractors, schools, hospitals and maintenance departments. Typical uses include metal furniture, lockers, fences, railings, tubing and file cabinets. The Deuce provides the most complete, on-site finishing unit. Simply put, the Number #2 Ransburg Gun could become the number one gun for your application!

The Deuce cart SE or LSX Packages come with everything you need to start painting today.

Features:

  • Improved Atomization

Gives a higher quality finish

  • Enhanced Spray Pattern Control

Deliver maximum flexibility from a small center outlet design

  • No High Fluid Pressure Required

Provides the user great application control

  • Trouble-Free Assembly

The straightforward design makes the unit easy for one person to handle

  • Accessible Pressure Pot

Simplifies use and maintenance

  • Lightweight Design

Allows user-friendly mobility and transportation

Coating Capabilities:

Coating delivery rate and application rate/speed are a function of bell size. There are three bell sizes available, 2 3/4”, 4” and 6”. Each has a maximum delivery rate and lends itself to certain applications.

Standard Bell Size

4”

Approximate Max Delivery Rate

120 cc/min

Application Rate

10–12 sq ft/min

Optional Bell Sizes

2 3/4”

6”

Approximate Max Delivery Rate

75 cc/min

180 cc/min

Application Rate

5–7 sq ft/min

15–18 sq ft/min



79297-01 SE Package Includes:

  • No. 2 Hand Gun with 4″ Bell Cup

  • 9060 Power Supply

  • 25′ High Voltage Cable & Fluid Hose

  • Deluxe Portable Cart System

  • 2.8 Gal. Pressure Tank with one Air Regulator and Gauge

  • Compressor Assembly

  • Solvent Safety Can

79297-02 SE Package Includes:

  • No. 2 Hand Gun with 4″ Bell Cup

  • 9060 Power Supply

  • 36′ High Voltage Cable & Fluid Hose

  • Deluxe Portable Cart System

  • 2.8 Gal. Pressure Tank with one Air Regulator and Gauge

  • Compressor Assembly

  • Solvent Safety Can

79297-03 LSX Package Includes:

  • No. 2 Hand Gun with 4″ Bell Cup

  • 9060 Power Supply

  • 25′ High Voltage Cable & Fluid Hose

  • Deluxe Portable Cart System

  • 2.8 Gal. Pressure Tank with one Air Regulator and Gauge

  • Compressor Assembly

  • Solvent Safety Can

  • Additional Accessories: Gun Covers
    (5), Brushes (2), 4″ Bell Cup (1), 4″
    Bell Cup Feed Tube (1)

79297-04 LSX Package Includes:

  • No. 2 Hand Gun with 4″ Bell Cup

  • 9060 Power Supply

  • 36′ High Voltage Cable & Fluid Hose

  • Deluxe Portable Cart System

  • 2.8 Gal. Pressure Tank with one Air Regulator and Gauge

  • Compressor Assembly

  • Solvent Safety Can

  • Additional Accessories: Gun Covers
    (5), Brushes (2), 4″ Bell Cup (1), 4″
    Bell Cup Feed Tube (1)

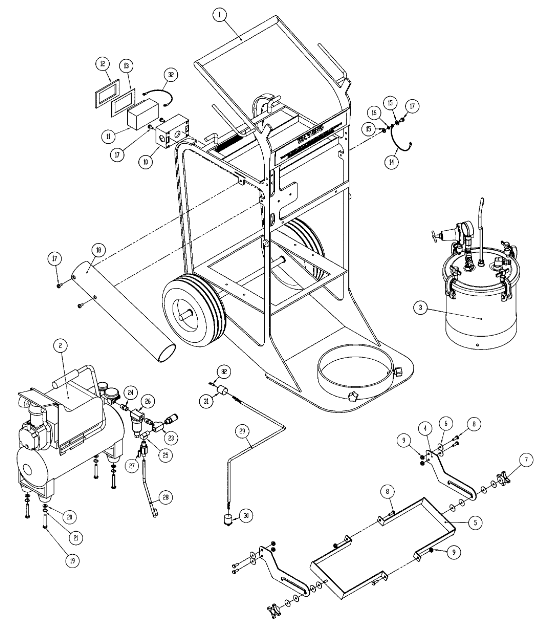

Deuce Cart Spare Parts List

Part Number

Description

Quantity

Item

11491-00

11488-00

11492-00

79989-00

2 3/4" Bell Assembly

4“ Bell Assembly Std. With Unit

6” Bell Assembly

Two-Wheel Cart Assembly

1

1

1

1

 1

2

4

80001

Air Compressor

1

5

79281-00

PT Code Pressure Tank Assembly (Zinc Plated)

1

6

80162-00

Bracket Arm

2

7

80163-00

U-Bracket

2

8

71211-01

.25” x 1” Washer

12

9

80164-00

Knob

2

10

AC-3710

1/4-20 Serrated Flange Bolt

6

11

AC-3903

1/4-20 Serrated Flange Nut

6

12

79287-00

Single Gang Outlet Box

1

13

79290-00

Receptacle Electric GFCI 15 AMPS

1

14

79285-02

Water Proof Cover, Outer

1

15

79285-01

Water Proof Cover Gasket

1

16

79292-00

Grounding Wire Assembly 18”

1

17

55-6505-CD

Flat Washer 1/4

2

18

7567-05

Lockwasher Ext Tooth 1/4

1

19

20-202

Pan Head Screw 1/4-20 x 1/2

5

20

79458-00

Holster with Label, Deuce Cart

1

21

80371-00

Bolt Hex M8-1.25 x 50MM ZN PLTD

4

22

80372-00

Washer Flat M8 ZN PLTD

4

23

80370-00

Lock Washer M8 Split ZN PLTD

4

24

3364-02

Tee 1/4 NPT

1

25

8115-01

Hex Nipple 1/4 NPT

2

26

79332-00

Elbow 1/4 NPT

1

27

79987-00

Coalescing Filter

1

28

VA-542

Ball Valve

1

29

HA-57030

Air Hose Assembly

1

30

79293-25

Electrical Cord 14/3, 300V

1

31

79291-00

Electrical Plug NEMA 5-15, 15 AMPS

1

32

79288-00

Connector Strain Relief Line Cord

1

33

79294-00

Spade Terminal 16-14 AWG #10

1

34

79295-00

Grounding Wire Assembly 14”

1

35

80165-00

Deuce Cart Bracket Kit Assembly

Included In Kit

36

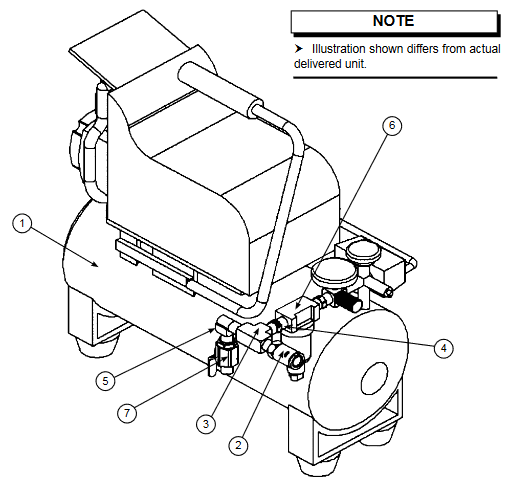

Air Compressor Assembly Spare Parts

Part Number

Description

Quantity

Item

79988-00

Air Compressor

1

1

Reference

Q.D. Air Fitting

Reference

2

3364-02

Tee 1/4 NPT

1

3

8115-01

Hex Nipple 1/4 NPT

2

4

79332-00

Elbow 1/4 NPT

1

5

79987-00

Coalescing Filter

1

6

VA-542

Ball Valve

1

7

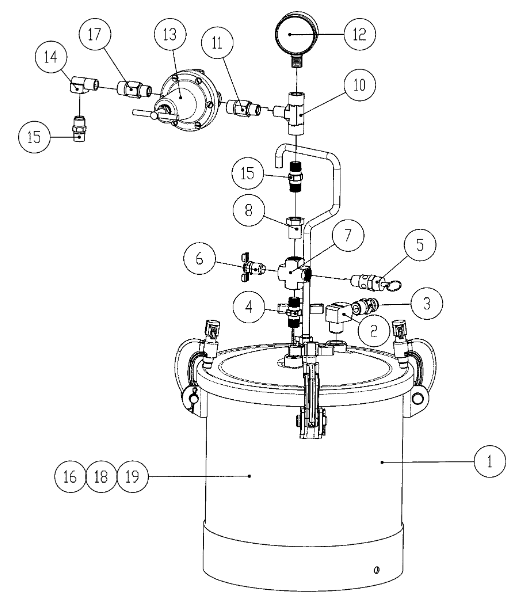

Pressure Pot Assembly Spare Parts

Part Number

Description

Quantity

Item

83C-210

Pressure Pot

1

1

SSP-1939

St. Elbow, 3/8 NPT

1

2

VA-527

Ball Valve, 3/8 NPT(M) x 3/8 NPS(M)

1

3

SSP-462-ZN

Nipple, Hex, 1/4 NPT(M)

1

4

TIA 4040

Valve, Safety, 40 PSI

1

5

SS-2707

Valve, Drain

1

6

SSP-3301-NI

Cross, 1/4 NPT(F)

1

7

SSP-8217-2

Adapter, Swivel, 1/4 NPT(M) x 1/4 NPS(F)

1

8

SSP-2629-ZN

Male Branch Tee, 1/4 NPT(F)

1

10

20-1753-1

Bushing, 1/4 NPT(F) x 3/8 NPT(M)

1

11

83-1414

Gauge, Pressure 0-30 PSI, 2-1/2”, 1/4 NPT(M)

1

12

HAR-501

Regulator, Air 3/8 NPT(F)

1

13

20-2848

Elbow, 1/4 NPT(F)

1

14

H-2008

Adapter, 1/4 NPT(M) x 1/4 NPS(M)

1

15

PT-422

Lid

1

16

83-4233

Nipple, 3/8 NPT(M) x 1/4 NPT(M)

1

17

QMS-9-1

Fluid Tube

1

18

PT-33-1

Gasket

1

19

PT-78-K10

Tank Liner (Not Shown)

Sold in Packs
of 10 & 60

20
