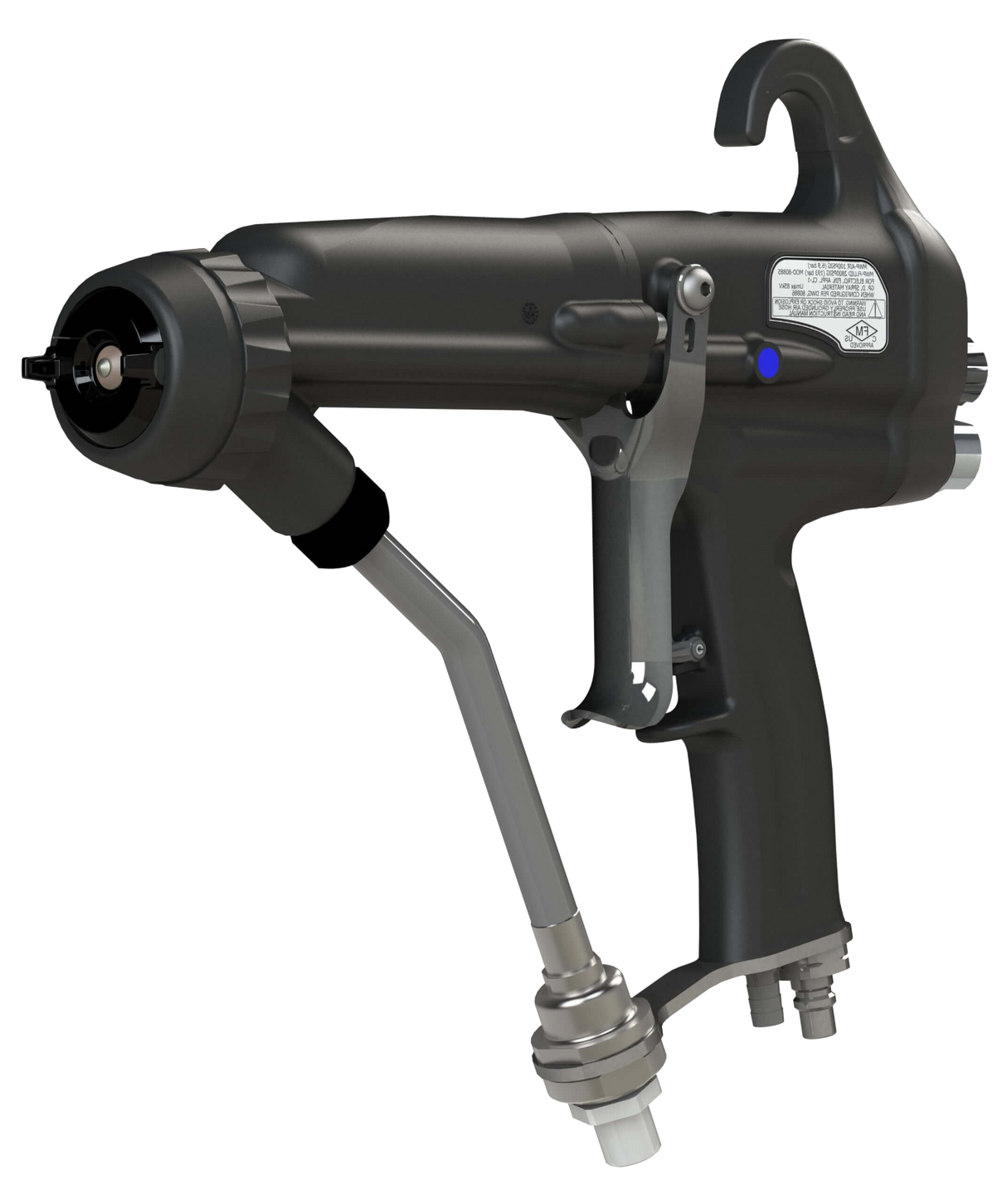

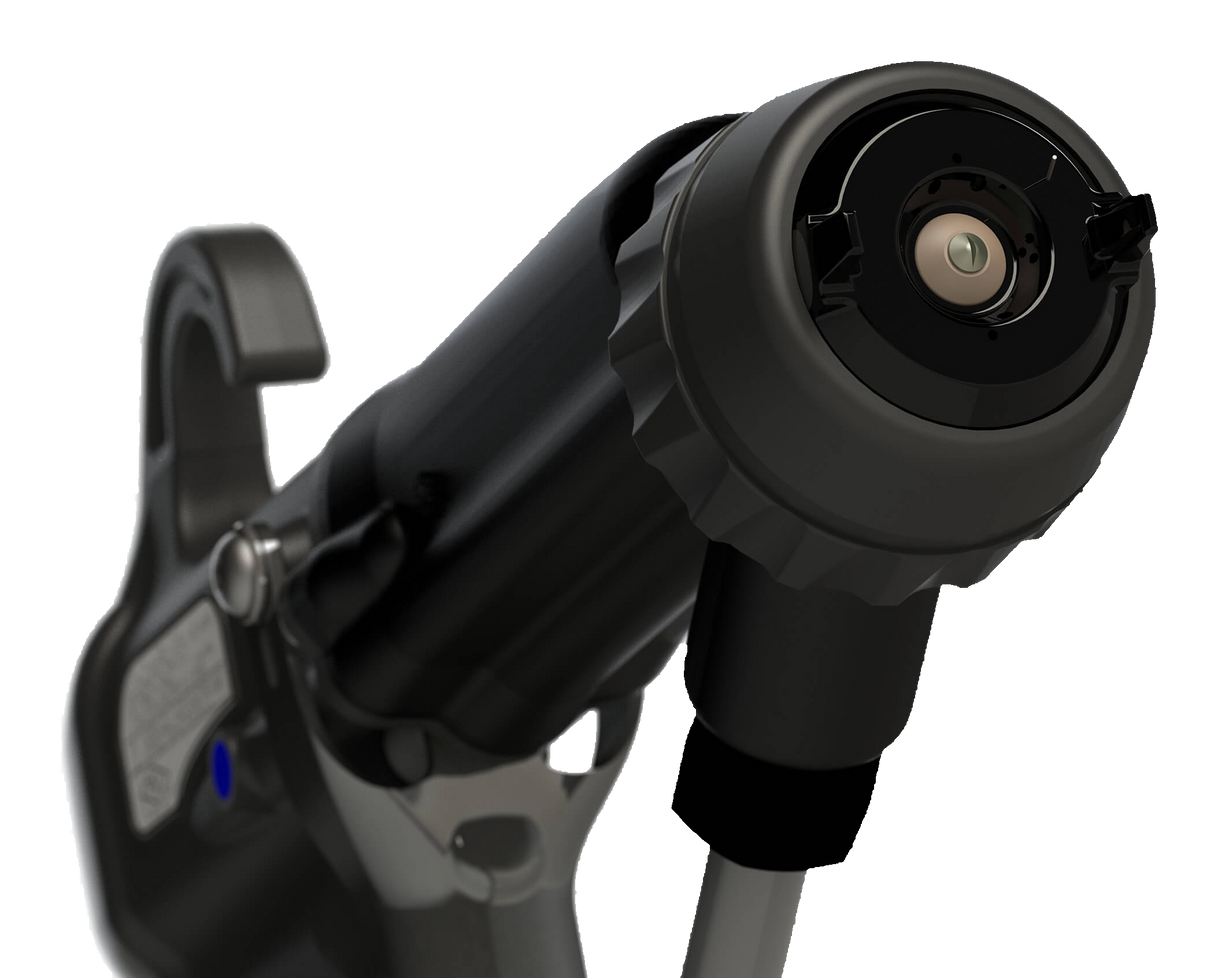

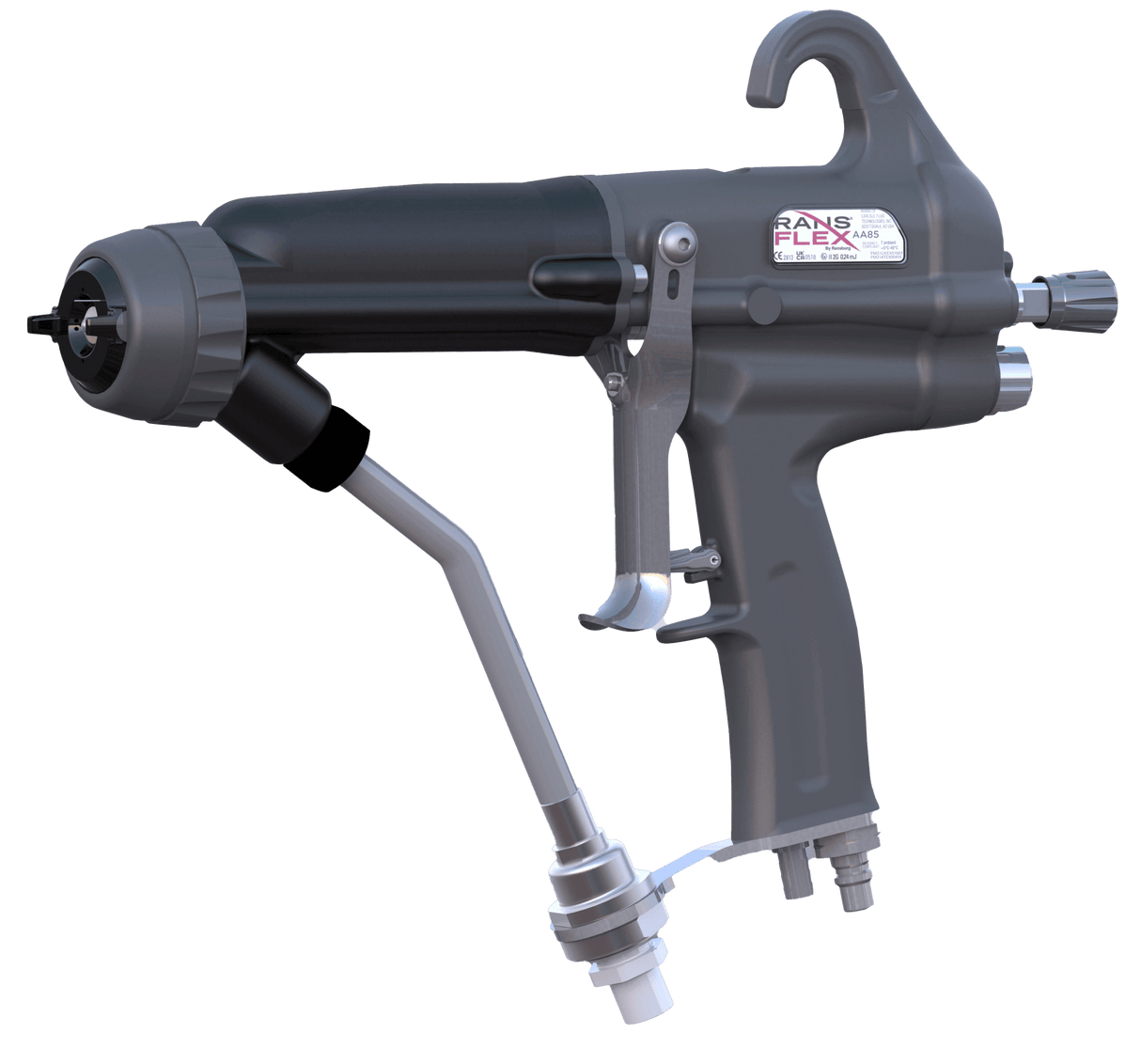

RansFlex AA85 Electrostatic Applicator

$8,112.00

This product is sold out

Manufacturer: Ransburg

Part Number: 80885-08100, 80885-08105

Description:

Standard Kits Include - Ranflex AA85, 0.33mm/0.013” Standard Carbide Tip, and a 2-finger trigger.

Best in class atomization in a compact, lightweight applicator, the new RansFlex applicator offers features and benefits that meet stringent customer requirements.

The RansFlex air-assisted airless electrostatic applicator is powered by an onboard generator, eliminating the need for an external power supply. Designed with the operator in mind, the RansFlex handle incorporates grip improvements with the better balance to reduce operator fatigue. DeVilbiss atomization technology is coupled with Ransburg power to provide superior atomization and high transfer efficiency backed by a 3-year limited warranty.

  • Ergonomic fit, feel balance and control:
  • A sleek and smooth exterior makes cleaning and maintenance fast and easy.
  • Superior air cap performance for high transfer efficiency.
  • Simple, robust design.
  • Three-phase motor to reduce vibration.
  • Color-coded nozzles for easy identification.
  • Performance, operator comfort, high transfer efficiency, and ease of maintenance.

Technical Specifications

Weight without Hoses  715g (25.2 oz)
Height 229mm (9")
Width Max 51mm (2")
Length 279mm (11")
Max Operating Voltage 85 KV
Max Current Draw 90 uA
Min Air Inlet Pressure 3.0 Bar (45 psig)
Paint Conductivity 0.1 mΩ to infinity
Max Fluid Pressure 207 Bar (3000 psig)
Material Solvent-based coatings

Accessories

7997-36 3/16" ID Fluid Hose Assembly, 11m/ 36'
7994-50 3/16" ID Fluid Hose Assembly, 15m/ 50'
7994-75 3/16" ID Fluid Hose Assembly, 23m/ 75'
7994-100 3/16" ID Fluid Hose Assembly, 30m/ 100'
80558 Ranflex Air Hoses,LH Thread, QD 5m-20m
80386-00 4-Finger Trigger Kit
80566-00 Small Profile 2-Finger Trigger Kit
76104-00 1/8" ID Whip Hose Assembly, 1m/ 40"
4SN-4SW Fluid Inlet Swivel Fitting


Literature -

Ranflex AA85 Sales Brochure

Ranflex Placemat

Spare Parts:

 Part # Description
80740-XXXX Carbide Fluid Tip Assembly
80907-XXXX Fluid Tip Assembly With Pre-Orifice Sapphire
80738-00 Electrode
80859-00-K3 Insert, Conductive (Kit of 3)
80696-00 Gasket Kit
80735-00 Air Cap Assembly
80744-00 Air Assist Needle Shaft Assembly
7720-02-K3 Paint Filter Kit, 0.009, 60 Mesh, Course
