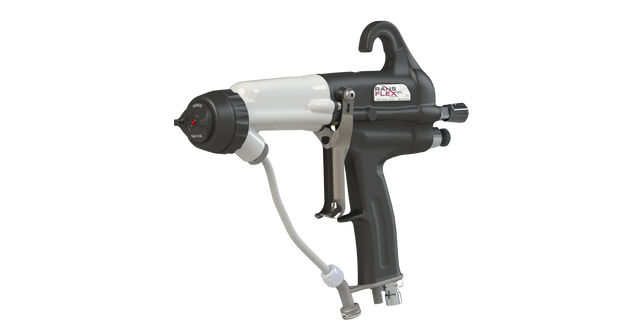

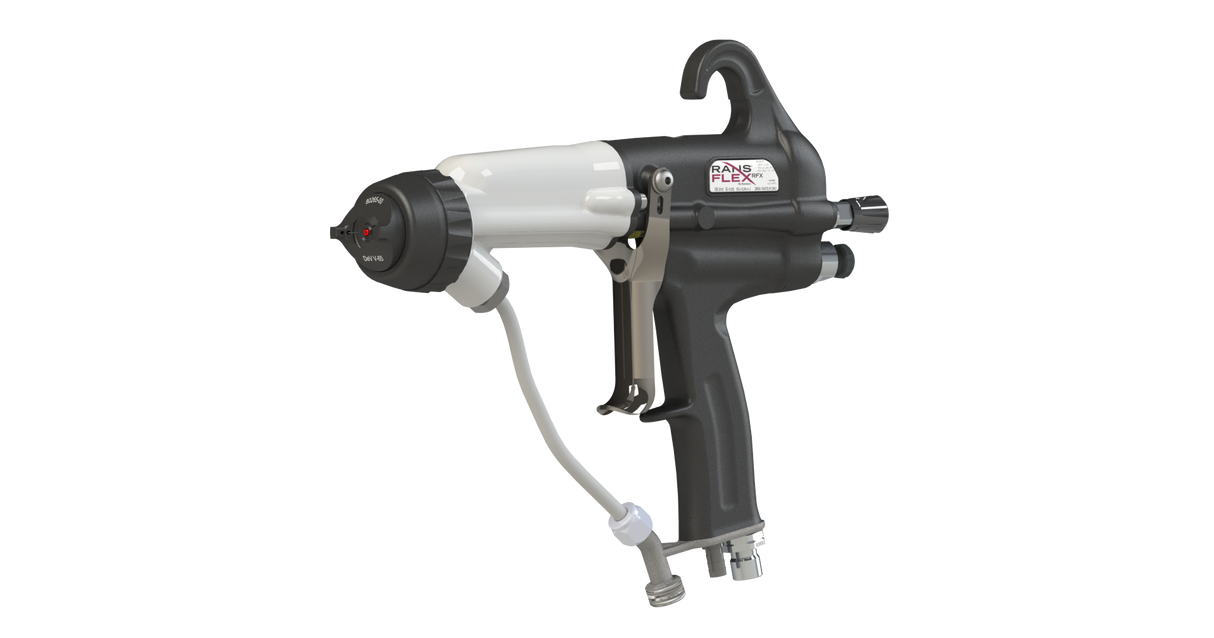

Ransburg RansFlex RFX Electrostatic Applicator

$5,777.00

Solvent-Based Electrostatic Manual Applicator

Manufacturer: Ransburg

Part #: 81365-ABCDEF

Description: Each gun comes with adjustable fluid controls and two-finger triggers without hoses.

65 kV operating voltage, air atomizing electrostatic, turbine-powered, solvent-based, manual applicator.

Best in class atomization in a compact, lightweight applicator, the new U.S.-made RansFlex applicator offers new features and benefits that surpass all other applicators in the industry today. The competition just doesn’t stack up.

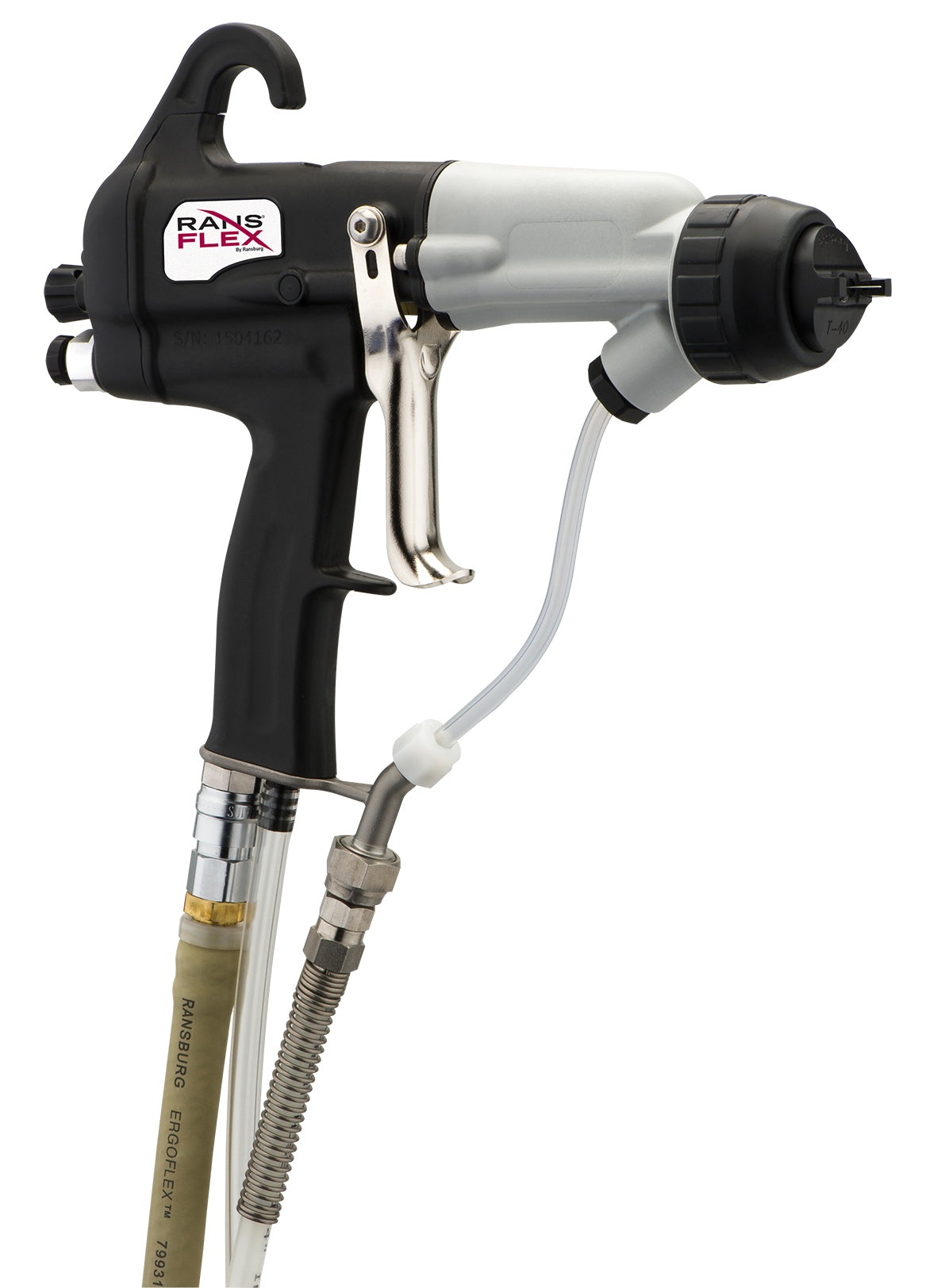

The RansFlex is an air-atomizing electrostatic applicator powered by an onboard generator. Designed with the operator in mind, the RansFlex handle incorporates many grip/handle improvements with better-balanced weight to reduce operator fatigue. DeVilbiss atomization technology is coupled with Ransburg power to provide superior atomization and performance backed by a 5-year limited warranty.

Utilizing 20% fewer parts than previous models, the RansFlex is easier to maintain. The patented turbine utilizes a three-phase motor to reduce vibration and provide electrostatic power. RansFlex incorporates optional quick air hose disconnect technology at the handle to reduce “treeing” and integrates color-coded nozzles for easy identification. Indexing air cap and quick voltage on/off knob makes finishing a snap.

Features:

  • Ergonomic fit, feel, balance and control: Operators experience less stress on joints and muscles which has proven to lower the risks of carpal tunnel and the impact of physical strain, reducing fatigue.
  • Redesigned sleek and smooth exterior: Makes cleaning and maintenance fast and easy while protecting strategic components.
  • Provides three phases of generator protection: Includes divorced generator air supply cartridge, sealed nozzle/atomization passages and strategic turbine location.
  • Meets FM/ATEX/CSA: Complies with all globally recognized standards and promotes quality confidence for specification and purchase.
  • Reverse "cheeks" and formed trigger: Adds stability to the grip in the palm area while promoting easier resting in the fingers and enhanced comfort for the "V" in the operator's hand.

Literature:

Specifications

Part List

Manual

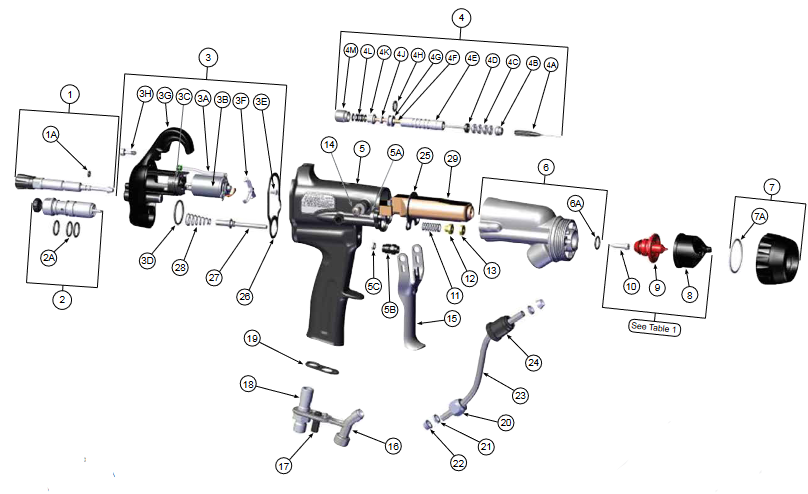

 Part # MPN Description
1 80273-00 Assembly, Fan Valve
1A 79001-16 O-Ring
2

80262-00

Assembly, Fluid Cartridge (adjustable)

80262-01

Assembly, Fluid Cartridge (non-adjustable)

2A 79001-08 O-Ring
3 80378-00 Cover, Rear Assembly
3A 80213-00 Pipe, Light
3B 80255-00 Assembly, Motor
3C 79755-00 Block, Porting
3D 7554-61 O-Ring
3E 80275-00 Screw
3F 80219-00 Bracket, Locking
3G 80254-00 Cover, Rear
3H 80274-00 Screw, Rear Cover
4

80263-45

Needle Shaft Assembly (RX 45kV)

80263-65

Needle Shaft Assembly (RFX 65kV)

4A

70430-01

Assembly Electrode, High Wear

70430-01-K3

Kit of 3 Electrodes

4B 80677-00 Adapter, Male
4C

14323-00

Seal, Chevron, 3/8 DIA

14323-00-K4

Kit of 4 Seals

4D 18821-00 Adapter, Female, Chevron
4E

80257-45

Tube Packing (RX 45kV)

80257-65

Tube Packing (RFX 65kV)

80225-45

Needle Shaft Assembly (RX 45kV)

80225-65

Needle Shaft Assembly (RFX 65kV)

4G 79001-06 O-Ring
4H 78629-00 Retainer, Needle Seal, Rear
4J 10051-05 Cup Seal, Spring Loaded
4K 78630-00 Spacer, Seal
4L

17390-04

Washer, Spring, Belville

17390-04-K6

Kit of 6

4M 78631-00 Nut, Packing
5 80870-00 Handle Assembly (See Part List)
5A 80274-00 Screw, Barrel-Handle
5B 80229-00 Nut, Retaining, Air Valve
5C 10051-05 Cup Seal, Spring Loaded
6

80376-00

Barrel (RX 45kV)

80379-00

Barrel (RFX 65kV)

6A 79001-07 O-Ring
7 80377-00 Nut, Retaining & O-Ring Assembly
7A LSOR0005-17 O-Ring
11 80258-00 Spring, Fluid Return
12 80243-00 Nut, Front Jam
13 80242-00 Nut, Rear Jam
14 80268-00 Screw, Trigger
15 80211-00 Assembly, Trigger
16 80212-00 Bracket, Fluid
17 80221-00 Fitting, Exhaust
18

80868-00

Air Inlet Standard Fitting

80869-00

Air Inlet Quick Disconnect Fitting

19 80684-00 Gasket, Exhaust
20 EMF-201-04 Nut, Hex, Nylon
21 EMF-203-04 Ferrule, Front 1/4"
22 EMF-202-04 Ferrule, Back 1/4"
23

80269-45



Standard Fluid Inlet Tube (RX 45kV)



80269-65

Standard Fluid Inlet Tube (RFX 65kV)

79879-01

Coiled Fluid Inlet Tube

24 80346-00 Nut, Connector
25 80745-00 Gasket, Barrel
26 80732-00 Gasket, Rear
27 80244-00 Assembly, Valve, Air
28 80533-00 Spring, Air Valve
29

80250-45

Assembly, Cascade (RX 45kV)

80250-65

Assembly, Cascade (RFX 65kV)
