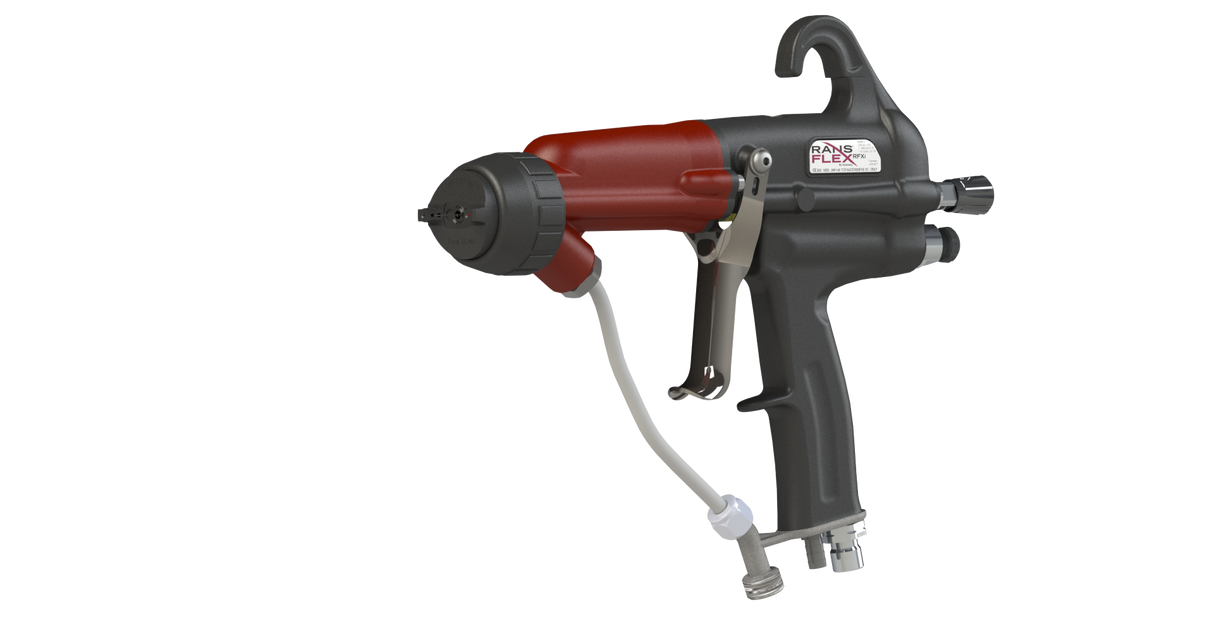

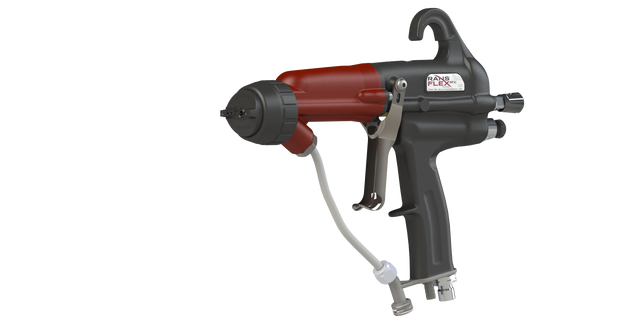

Ransburg RansFlex RFXi Electrostatic Gun

$6,159.00

Ransburg RansFlex RFXi Electrostatic Gun

Manufacturer: Carlisle Ransburg

Part Number: 81465-011106, 81465-011117, 81465-011123, 81465-011128, 81465-012106, 81465-021117, 81465-111105, 81465-111106, 81465-111107, 81465-111112, 81465-121117, 81465-211117, 81465-321112, 81465-321102, 81465-421106

All Guns Come with STD Fluid Inlet Tube

High-Performance Electrostatic Manual Gun

The all-new RansFlex RFXi 65kV spray gun delivers features and benefits that surpass all other electrostatic applicators.  RFXi is a low-pressure air atomizing electrostatic spray gun powered by an inbuilt turbine generator. Designed with the operator in mind, the handle incorporates many fit and feel improvements with better-balanced weight to reduce operator fatigue.

The RFXi uses indirect electrostatic charging technology, which means there is no longer any need to isolate the waterborne paint feed containers or paint pumps with expensive isolation cages or tanks, saving users significant expense and floor space.

Devilbiss's world-renowned air cap atomization technology is coupled with Ransburg electrostatic power to provide superior atomization, transfer efficiency, and performance—all backed by a 5-year limited warranty.

Universal Water-Based Paint Compatibility

Sprays straight from your regular paint pumps or pressure feed tanks without the need for expensive isolation tables or enclosures

World Renowned DeVilbiss Atomization Technology

For superior atomization and finish quality

Ergonomic FitFeel With Easy To Use Controls

The curved gun handle required less “grip-force” with a softer trigger pull, which means users experience less joint or muscle strain, reducing the risk of RSI and operator fatigue—On/Off voltage switch is on the gun

Triple Turbine Protection

Three phases of turbine protection include a divorced turbine air supply cartridge, sealed nozzle/atomization passages, and the strategic turbine location provides a long, trouble-free working life

Specifications

Material:

Water Base

Weight w/o Hoses:

620g (22oz)

Height:

190.5mm (7.5”)

Width Max:

41.2mm (1 5/8”)

Length:

273mm (10 3/4”)

Operating Voltage:

65 kV DC (-) max

Max Current:

120 microamperes

Wetted Parts

Stainless, Polyethylene, Nylon, Acetal Polymer

Operating Pressure (Air Spray)


Fluid:

0–6.9 bar (0–100 psi)

Air:

0–6.9 bar (0–100 psi)

Trigger:

5.5–6.9 bar (80–100 psi)

Ambient Temperature:

40° C to 5° C (104° F to 41° F)

Consumption (with Voltage):

438 SLPM (15.4 SCFM) @ 2.8 bar (40 psig) @ Handle Inlet

Sound Level:

92 dB (A) @ 2.8 bar (40 psig) Inlet, 1m from the applicator

Fluid Flow Capacity:

1,000 mL/min



Atomization Table


A” Dash No.

A” Description

1”

2”

3”/Color”

0

T SERIES 1.2mm

80383-00

80239-12

74963-05/BLACK

1

T SERIES 1.2mm

80383-00

80239-14

74963-05/BLACK

2

T SERIES 1.2mm

80383-00

80239-18

74963-05/BLACK

3

T SERIES 1.2mm

80383-00

80239-10

74963-05/BLACK

4

T SERIES 1.2mm

80383-00

80239-07

74963-05/BLACK


Fluid Control Table


B” Dash No.

B” Description

4”

1

ADJUSTABLE FLUID

80775-00

2

NON-ADJUSTABLE FLUID

80775-01


Trigger Table


C” Dash No.

C” Description

5”

1

2 FINGER TRIGGER

80211-00

2

4 FINGER TRIGGER

80386-00

3

2 FINGER SMALL PROFILE

80566-00


Fluid Inlet Table


D” Dash No.

D” Description

6”

1

STD FLUID INLET TUBE

80269-65


Fluid Hose Table


E” Dash No.

E” Description

7”

0

NO FLUID HOSE

1

FLUID HOSE, 10m

80303-10

2

FLUID HOSE, 15m

80303-15

3

FLUID HOSE, 20m

80303-20

4

FLUID HOSE, 30m

80303-30


Air Hose Table


F” Dash No.

F” Description

8”

9”

0

NO AIR HOSE, STANDARD

80868-00

1

STANDARD AIR HOSE, 5m

80868-00

80558-05

2

STANDARD AIR HOSE,10m

80868-00

80558-10

3

STANDARD AIR HOSE, 15m

80868-00

80558-15

4

STANDARD AIR HOSE, 20

80868-00

80558-20

5

NO AIR HOSE, QD

80869-00

6

QD AIR HOSE, 5m

80869-00

80558-06

7

QD AIR HOSE, 10m

80869-00

80558-11

8

QD AIR HOSE, 15m

80869-00

80558-16

9

QD AIR HOSE, 20m

80869-00

80558-21

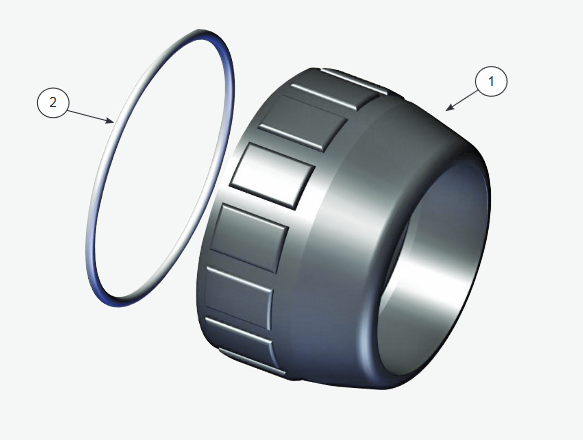

Retaining Ring Parts


Part No.

Description

Quantity

Item No.

80531-00*

NUT, RETAINING

1

1

LSOR0005-17

O-RING, ENCAPSULATED

1

2

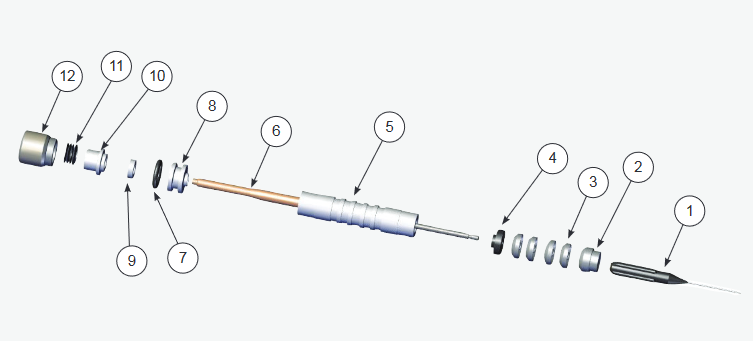

Needle Shaft Parts


Part No.

Description

Quantity

Item No.

70430-01

ASSEMBLY ELECTRODE, HIGH WEAR

1

1

80677-00

ADAPTER, MALE

1

2

14323-00

SEAL, CHEVRON, 3/8 DIA.

4

3

14323-00-K4

SEAL, CHEVRON (KIT OF 4)

1


18821-00

ADAPTER-FEMALE-CHEVRON

1

4

80257-65

TUBE, PACKING

1

5

80225-65

NEEDLE SHAFT ASSEMBLY

1

6

79001-06

O-RING, SOLVENT-PROOF

1

7

78629-00

RETAINER, NEEDLE SEAL, REAR

1

8

10051-05

CUP SEAL, SPRING-LOADED

1

9

78630-00

SPACER, SEAL

1

10

17390-04

WASHER, SPRING, BELVILLE

6

11

17390-04-K6

WASHER, SPRING, BEVILLE (KIT OF 6)

1


78631-00

NUT, PACKING

1

12

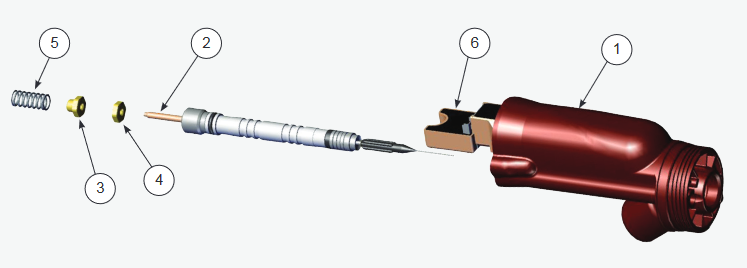

Barrel Parts


Part No.

Description

Quantity

Item No.

80724-00

ASSEMBLY, BARREL & O-RING

1

1

80263-65

ASSEMBLY, NEEDLE SHAFT

1

2

80242-00

NUT, REAR JAM

1

3

80243-00

NUT, FRONT JAM

1

4

80258-00

SPRING, FLUID RETURN

1

5

80250-65

ASSEMBLY, CASCADE (65 kV)

1

6

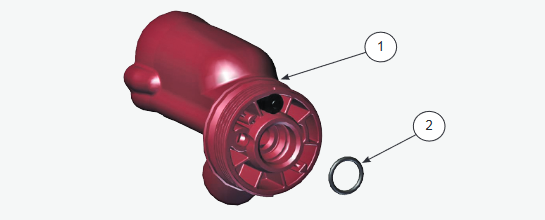

Barrel & O-Ring Parts


Part No.

Description

Quantity

Item No.

80724-00

BARREL 65kV

1

1

79001-07

O-RING, SOLVENT-PROOF

1

2

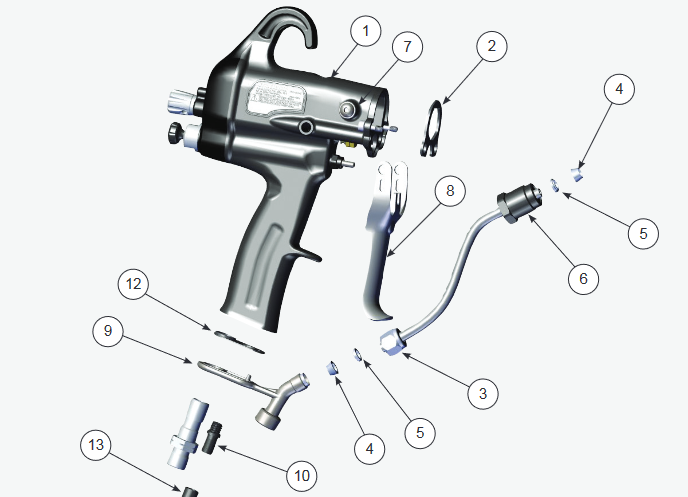

Handle Component Parts


Part No.

Description

Quantity

Item No.

80775-00




80775-01

INCLUDES HANDLE (80870-00) AND REAR COVER WITH MOTOR
(80378-00) ASSEMBLY (ADJUSTABLE FLUID CONTROL)

INCLUDES HANDLE (80870-00) AND REAR COVER WITH MOTOR
(80378-00) ASSEMBLY (NON-ADJUSTABLE FLUID CONTROL)




1




1

80745-00

GASKET, BARREL

1

2

EMF-201-04

NUT, HEX, NYLON

1

3

EMF-203-04

FERRULE, FRONT 1/4”

2

4

EMF-202-04

FERRULE, BACK 1/4”

2

5

80346-00

NUT, CONNECTOR, HOSE

1

6

80268-00

SCREW, TRIGGER

2

7

80211-00

ASSEMBLY, TRIGGER

1

8

80212-00

BRACKET, FLUID

1

9

80221-00

FITTING, EXHAUST

1

10

80236-00

FITTING, AIR INLET

1

11

80684-00

GASKET, EXHAUST, AND COMBINED

1

12

79861-00

TUBING, EXHAUST

1

13

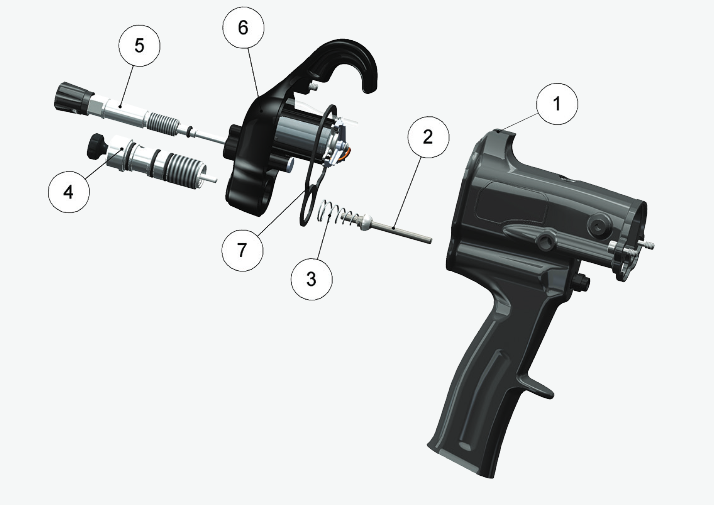

Handle With Rear Cover & Motor Parts


Part No.

Description

Quantity

Item No.

80870-00

ASSEMBLY, HANDLE

1

1

80244-00

ASSEMBLY, VALVE, AIR

1

2

80533-00

SPRING, AIR VALVE

1

3

80262-00

ASSEMBLY, VALVE, ADJUSTABLE FLUID CONTROL

1

4

80262-01

ASSEMBLY, VALVE, NON-ADJUSTABLE FLUID CONTROL

1


80273-00

ASSEMBLY, VALVE FAN AIR

1

5

80378-00

REAR COVER AND MOTOR ASSEMBLY

1

6

80732-00

GASKET, REAR

1

7

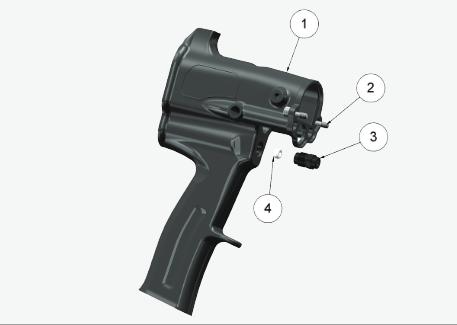

Handle Assembly Parts


Parts No.

Description

Quantity

Item No.

80870-00

ASSEMBLY, HANDLE INCLUDES ALL PARTS BELOW,
MOTOR CONTROL BOARD AND HARNESSES

1

1

80274-00

SCREW, BARREL-HANDLE

2

2

80229-00

NUT, RETAINING, AIR VALVE

1

3

10051-05

CUP SEAL, SPRING-LOADED

1

4

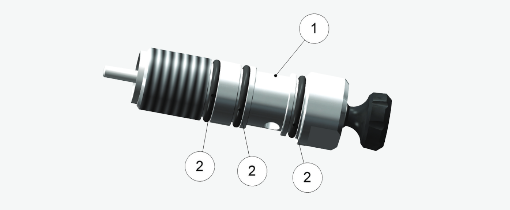

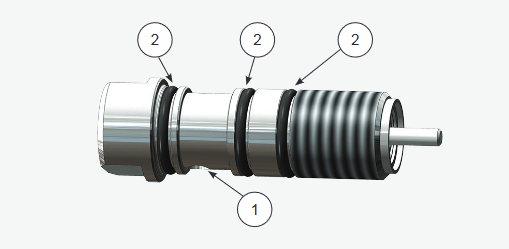

Rear Cartridge Assembly Parts


Part No.

Description

Quantity

Item No.

80262-00

ASSEMBLY, FLUID CARTRIDGE

1

1

80262-01

ASSEMBLY, FLUID CARTRIDGE (NON-ADJUSTABLE)

1

1

79001-08

O-RING, SOLVENT-PROOF

3

2

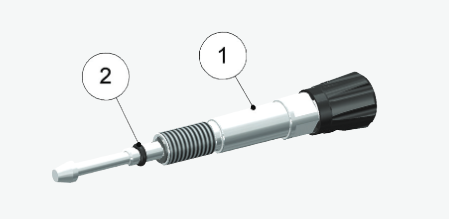

Fan Air Cartridge Parts


Part No.

Description

Quantity

Item No.

80273-00

ASS’Y., FAN VALVE (INCLUDES ALL PARTS BELOW)

1

1

79001-16

O-RING, SOLVENT-PROOF

1

2

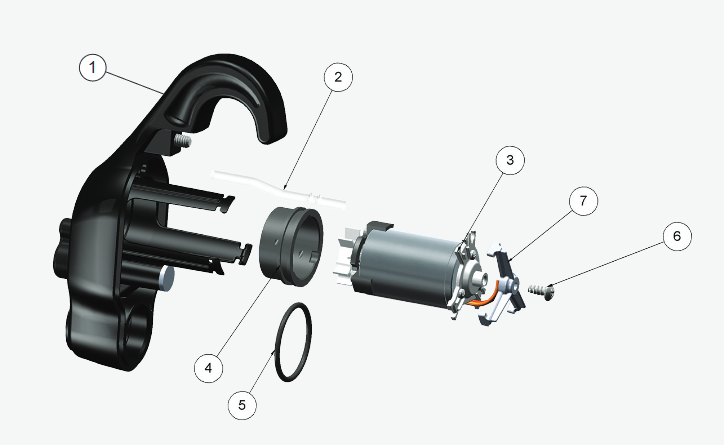

Rear Cover With Motor Assembly Parts


Part No.

Description

Quantity

Item No.

80378-00

COVER, REAR ASSEMBLY

1

1

80213-00

PIPE, LIGHT

1

2

80255-00

ASSEMBLY, MOTOR

1

3

79775-00

BLOCK, PORTING

1

4

7554-61

O-RING, SOLVENT RESISTANT

1

5

80275-00

SCREW

1

6

80219-00

BRACKET, LOCKING

1

7

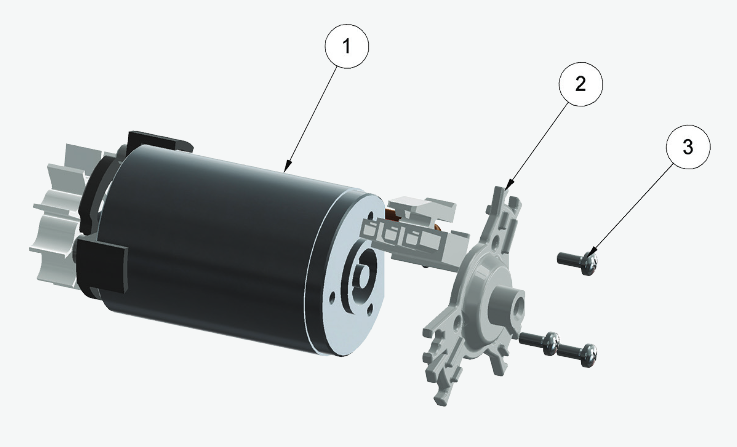

Motor Assembly Parts


Part No.

Description

Quantity

Item No.

80255-00

ASSEMBLY, MOTOR

1

1

80217-00

COVER SUPPORT, MOTOR

1

2

79796-00

SCREW, MOTOR

3

3

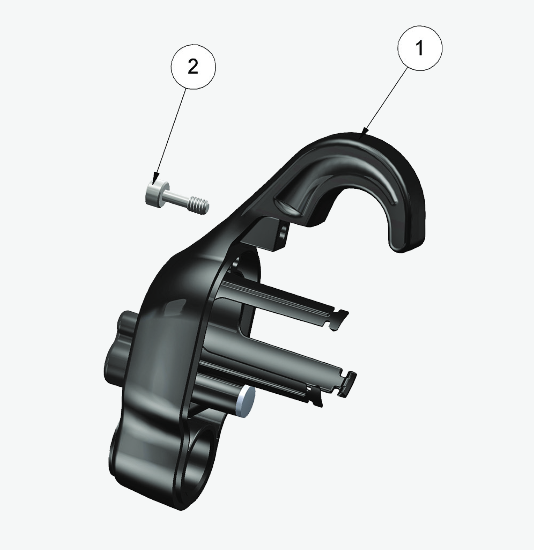

Rear Cover Assembly Parts


Part No.

Description

Quantity

Item No.

80254-00

COVER, REAR

1

1

80274-00

M4 X .7 SHCS

1

2
