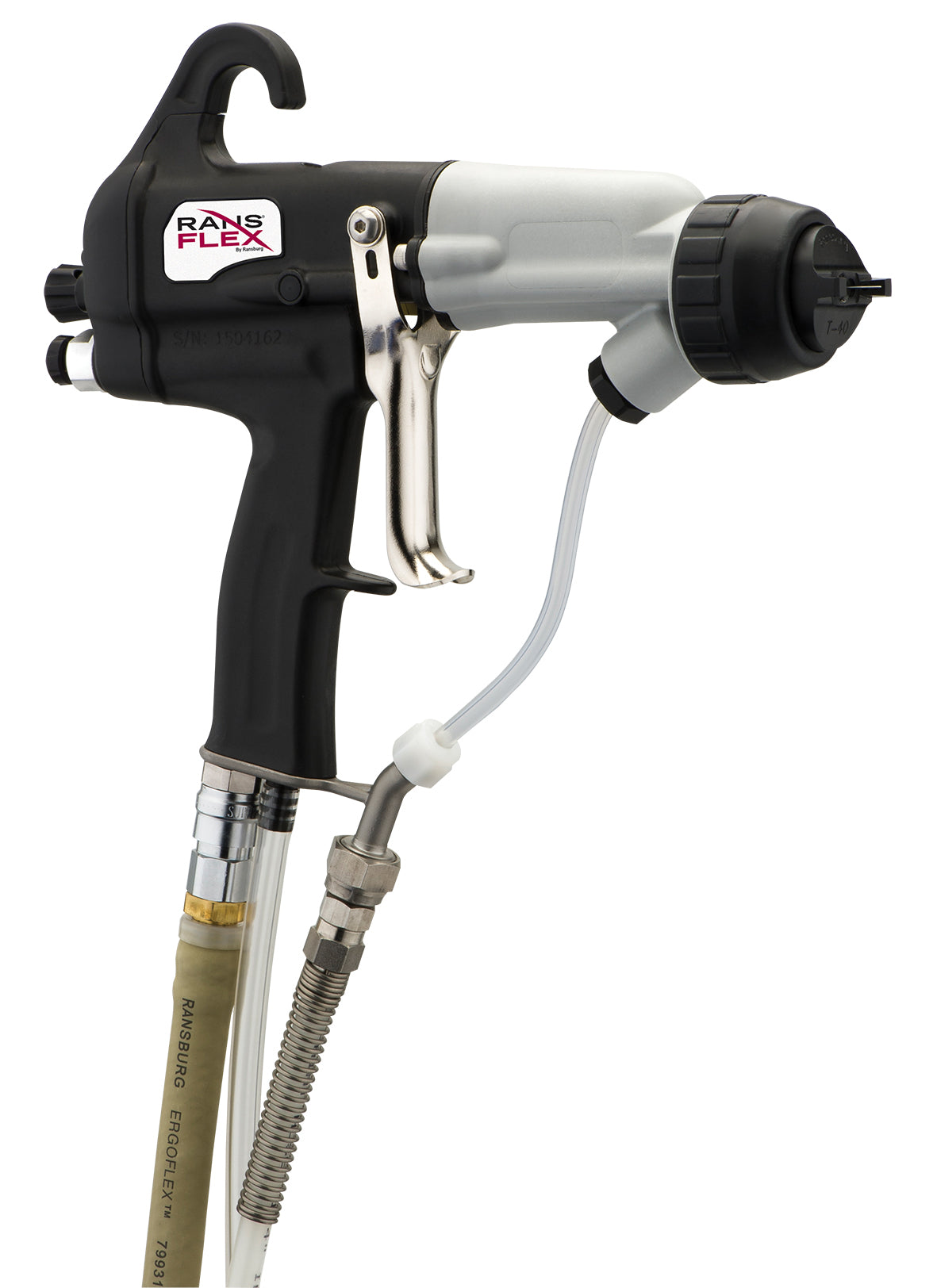

Ransburg RansFlex RXQ Electrostatic Applicator

$4,990.00

Solvent-Based Electrostatic Manual Applicator with Quick Fan Adjustment

Manufacturer: Ransburg

Part #: 81545-ABCDEF

Description: RXQ includes Adjustable Fluid Control, Two Finger Control, and NO hoses

45 kV operating voltage, air atomizing electrostatic, turbine-powered, solvent-based, manual applicator with quick fan adjustment.

The new “Quick Fan Adjust” button allows operators to easily go from a large to a small fan pattern by simply depressing the button located on the side of the gun.

Best in class atomization in a compact, lightweight applicator, the new U.S.-made RansFlex applicator offers new features and benefits that surpass all other applicators in the industry today. The competition just doesn’t stack up.

The RansFlex is an air-atomizing electrostatic applicator powered by an onboard generator. Designed with the operator in mind, the RansFlex handle incorporates many grip/handle improvements with better-balanced weight to reduce operator fatigue. DeVilbiss atomization technology is coupled with Ransburg power to provide superior atomization and performance backed by a 5-year limited warranty.

Utilizing 20% fewer parts than previous models, the RansFlex is easier to maintain. The patented turbine utilizes a three-phase motor to reduce vibration and provide electrostatic power. RansFlex incorporates optional quick air hose disconnect technology at the handle to reduce “treeing”and integrates color coded nozzles for easy identification. Indexing air cap and quick voltage on/off knob makes finishing a snap.

Features:

  • Ergonomic fit, feel, balance and control: Operators experience less stress on joints and muscles which has proven to lower the risks of carpal tunnel and the impact of physical strain, reducing fatigue.
  • Redesigned sleek and smooth exterior: Makes cleaning and maintenance fast and easy while protecting strategic components.
  • Provides three phases of generator protection: Includes divorced generator air supply cartridge, sealed nozzle/atomization passages and strategic turbine location.
  • Meets FM/ATEX/CSA: Complies with all globally recognized standards and promotes quality confidence for specification and purchase.
  • Reverse "cheeks" and formed trigger: Adds stability to the grip in the palm area while promoting easier resting in the fingers and enhanced comfort for the "V" in the operator's hand.

Literature:

Specifications

Part List

Manual

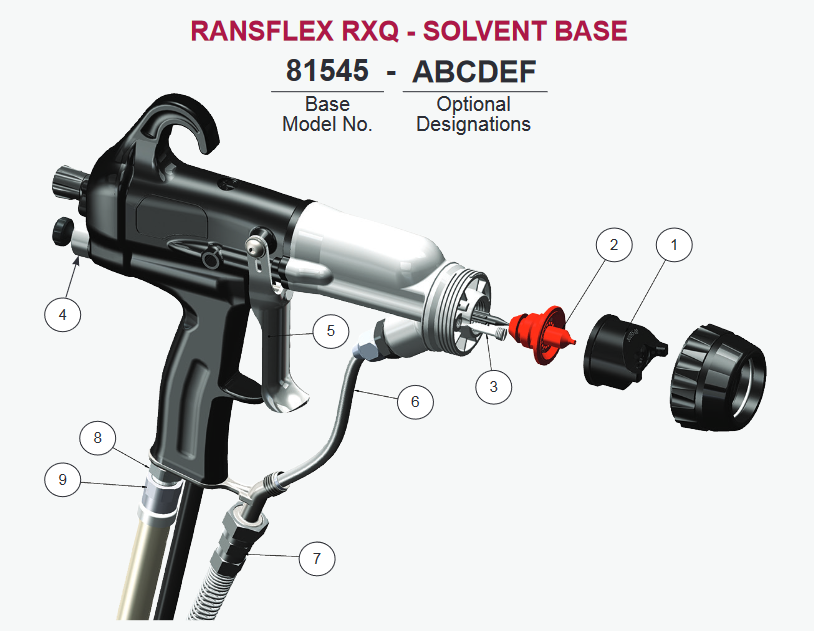

 Part # MPN Description
1 80555-00
Assembly, Fan Valve
1A 79001-16 O-Ring
2

80262-00

Assembly, Fluid Cartridge (adjustable)

80262-01

Assembly, Fluid Cartridge (non-adjustable)

2A 79001-08 O-Ring

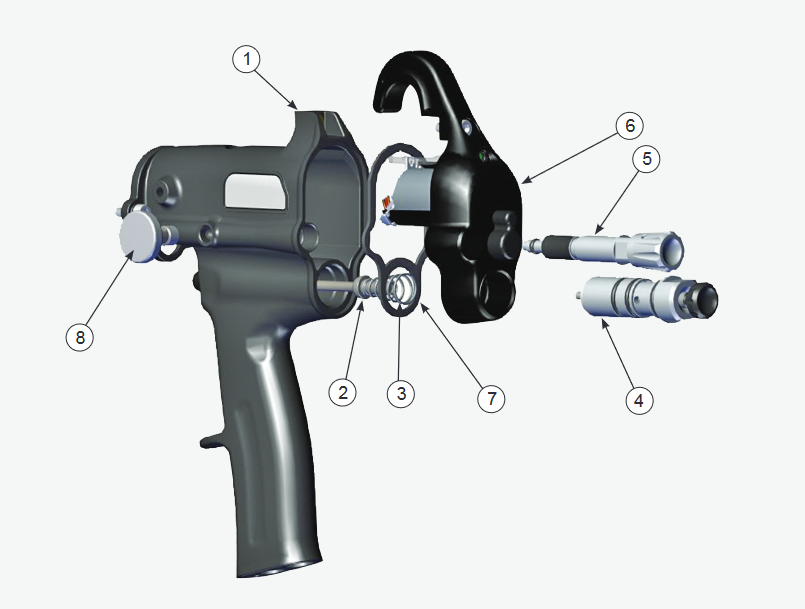

3 80378-00 Cover, Rear Assembly
3A 80213-00 Pipe, Light
3B 80255-00 Assembly, Motor
3C 79755-00 Block, Porting
3D 7554-61 O-Ring
3E 80275-00 Screw
3F 80219-00 Bracket, Locking
3G 80254-00 Cover, Rear
3H 80274-00 Screw, Rear Cover

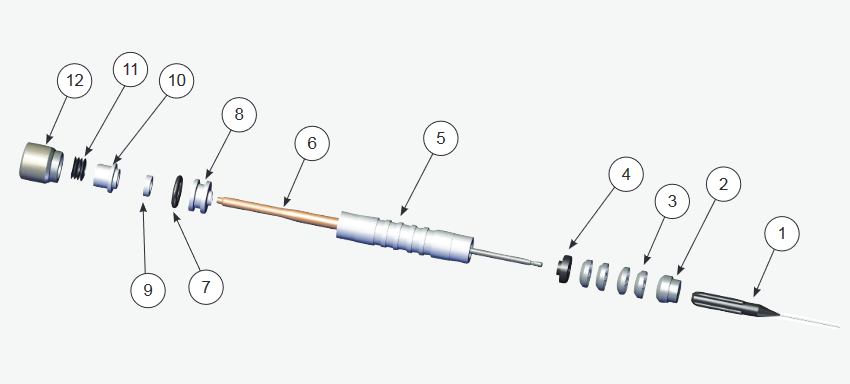

4

80263-45

Needle Shaft Assembly (RX 45kV)

80263-65

Needle Shaft Assembly (RFX 65kV)

4A

70430-01

Assembly Electrode, High Wear

70430-01-K3

Kit of 3 Electrodes

4B 80677-00 Adapter, Male
4C

14323-00

Seal, Chevron, 3/8 DIA

14323-00-K4

Kit of 4 Seals

4D 18821-00 Adapter, Female, Chevron
4E

80257-45

Tube Packing (RX 45kV)

4F

80225-45

Needle Shaft Assembly (RX 45kV)


80225-65

Needle Shaft Assembly (RFX 65kV)

4G 79001-06 O-Ring
4H 78629-00 Retainer, Needle Seal, Rear
4J 10051-05 Cup Seal, Spring Loaded
4K 78630-00 Spacer, Seal
4L

17390-04

Washer, Spring, Belville

17390-04-K6

Kit of 6

4M 78631-00 Nut, Packing

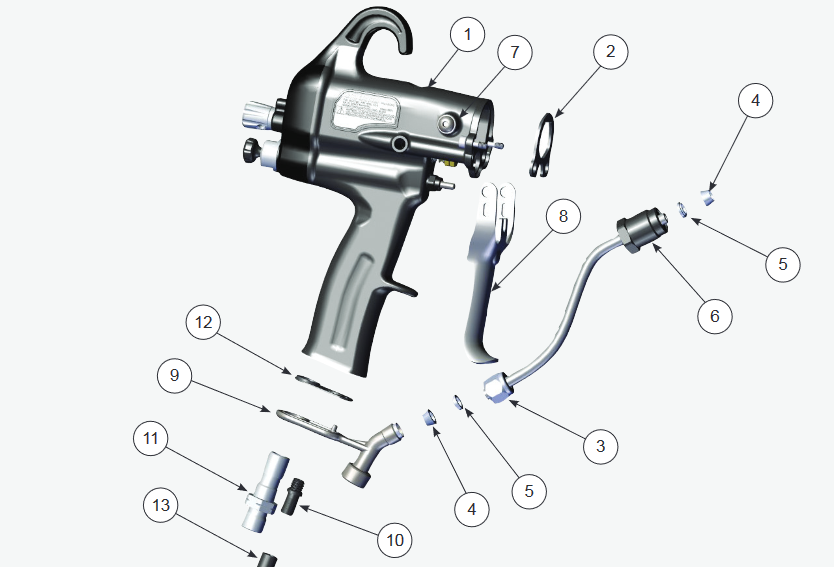

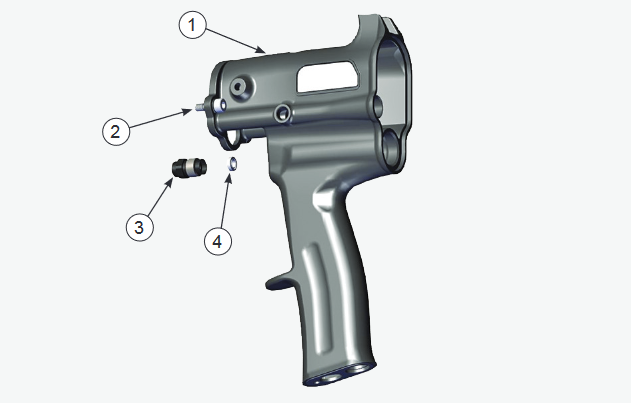

5 80-00 Handle Assembly (See Part List)
5A 80274-00 Screw, Barrel-Handle
5B 80229-00 Nut, Retaining, Air Valve
5C 10051-05 Cup Seal, Spring Loaded

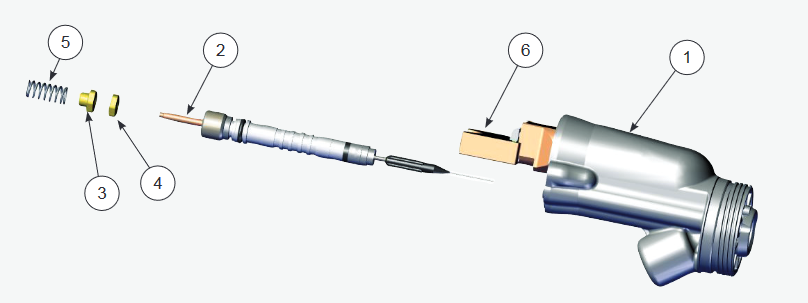

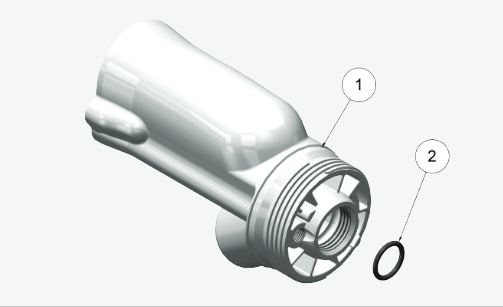

6

80376-00

Barrel (RX 45kV)

80379-00

Barrel (RFX 65kV)

6A 79001-07 O-Ring

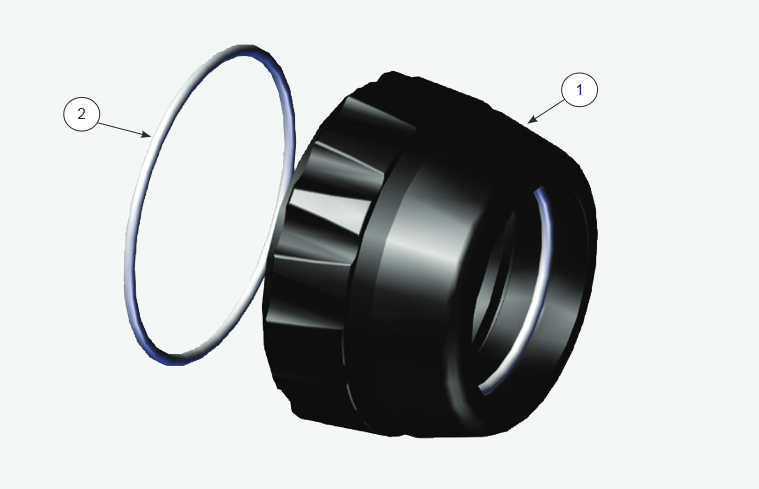

7 80377-00 Nut, Retaining & O-Ring Assembly
7A LSOR0005-17 O-Ring
11 80258-00 Spring, Fluid Return
12 80243-00 Nut, Front Jam
13 80242-00 Nut, Rear Jam
14 80268-00 Screw, Trigger
15 80211-00 Assembly, Trigger
16 80212-00 Bracket, Fluid
17 80221-00 Fitting, Exhaust
18

80868-00

Air Inlet Standard Fitting

80869-00

Air Inlet Quick Disconnect Fitting

19 80684-00 Gasket, Exhaust
20 EMF-201-04 Nut, Hex, Nylon
21 EMF-203-04 Ferrule, Front 1/4"
22 EMF-202-04 Ferrule, Back 1/4"
23

80269-45



Standard Fluid Inlet Tube (RX 45kV)



80269-65

Standard Fluid Inlet Tube (RFX 65kV)

79879-01

Coiled Fluid Inlet Tube

24 80346-00 Nut, Connector
25 80745-00 Gasket, Barrel
26 80732-00 Gasket, Rear
27 80244-00 Assembly, Valve, Air
28 80533-00 Spring, Air Valve
29

80250-45

Assembly, Cascade (RX 45kV)

80250-65

Assembly, Cascade (RFX 65kV)
