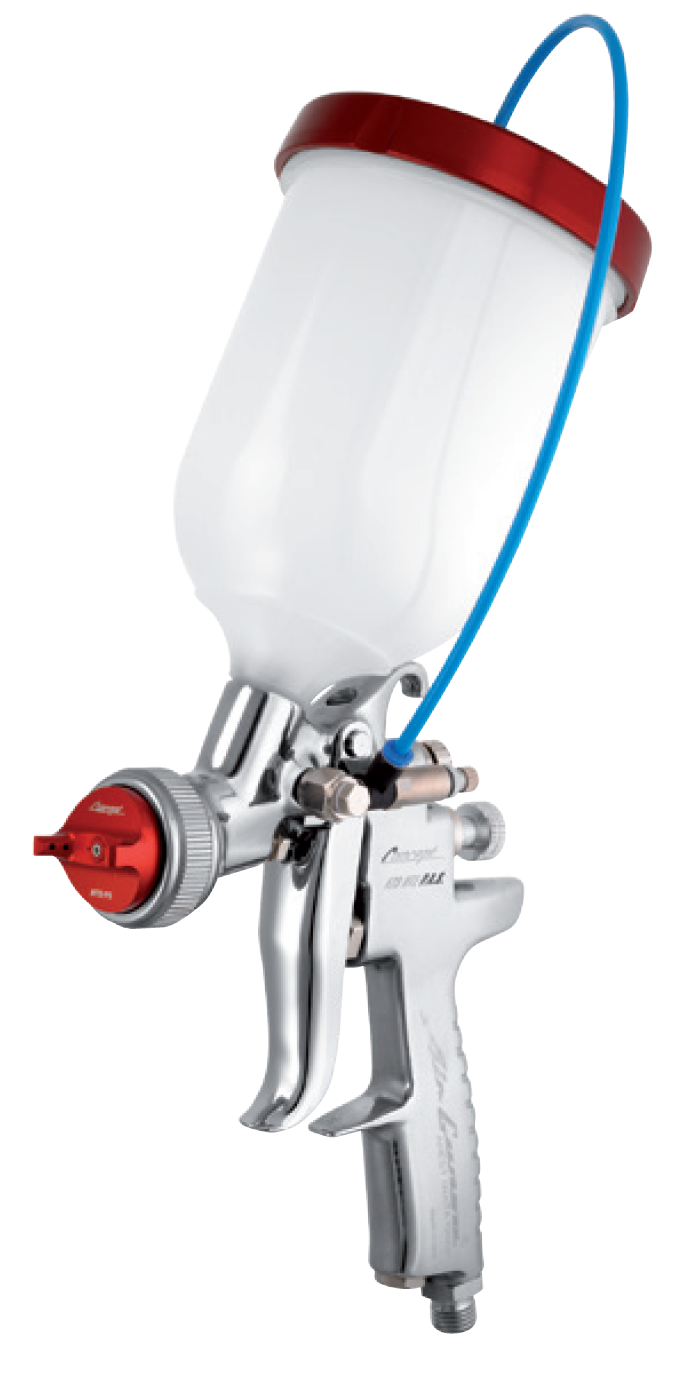

Anest Iwata Air Gunsa AZ3 HTE P.A.S. CONCEPT Gravity Spray Gun with 600ml cup
Anest Iwata Air Gunsa AZ3 HTE P.A.S. CONCEPT Gravity Spray Gun with...
Air Gunsa AZ3 HTE P.A.S. CONCEPT Gravity Spray Gun with 600ml cup
Manufacturer: Anest Iwata
Part #: 926X
Description: Air Gunsa AZ3 HTE P.A.S. CONCEPT Gravity Spray Gun with 600ml cup/
Features:
• Robust spray gun with pressurized cup most suitable for high viscosity materials
• Large, uniform spray pattern also with high viscosity materials, thanks to the Pressure Assisted System (P.A.S.)
• Costs for spare parts replacement extremely customer friendly
• High material transfer rate
• All fluid passages are in stainless steel
• Precise mini-controller for cup pressure
Specifications:
Spare Parts:
| Ref. No. | Part No. | Description |
| 1 | 9900 | AIR CAP SET |
| 2+9 | 942X | FLUID NOZZLE + NEEDLE SET |
| 3 | 9901 | NOZZLE HOLDER |
| 5 | 93842601 | PATTERN ADJ. SET |
| 6 | 9145B | FLUID NEEDLE ADJ. KNOB |
| 7 | 9135 | FLUID NEEDLE GUIDE |
| 8 | 9155B | FLUID NEEDLE SPRING |
| 10 | 9134 | FLUID NEEDLE PACKING NUT |
| 11 | 9211 | AIR VALVE SET |
| 11-1 | 9156B | AIR VALVE SPRING |
| 11-2 | 9146B | AIR VALVE SHAFT |
| 11-3 | 9148B | AIR VALVE SEAT |
| 12 | 9133 | TRIGGER STUD |
| 13 | 9256 | TRIGGER |
| 14-1 | 93845531 | AIR ADJ. SET |
| 14-2 | 93625370 | PLUG |
| 15 | 9902 | THREADED BUSHING |
| 16 | 9257 | PLUG |
| 17 | 9213 | AIR NIPPLE |
| C | 9258B | PACKING SET (3 pcs./1 pk.) |
| D | 9259 | SLIDE RING SET 10 pcs. / 1 pk. |
| 19 | 9264 | PCGP-6P-2B-AZ PRESSURIZED CUP 600ML |
| 19-1 | 9903 | PRESSURE CUP |
| 19-3 | 9904 | LID |
| 19-4 | 9905 | STRAIGHT MALE ADAPTOR |
| 19-5 | 9906 | AIR HOSE |
| E | 9907 | NON DRIP SET (3 PCS) |
| F | 9908 | LID PACKING SET (4 PCS) |
| 20-1 | W2SUB6066 | PRESSURE REGULATOR SET |
| 20-1 | 9909 | ORIENTING RING |
| 20-2 | 9910 | BANJO STEM SINGLE |
| 20-3 | 9911 | PRESSURE REGULATOR |
| 21 | 9912 | UNIVERSAL SPANNER |
