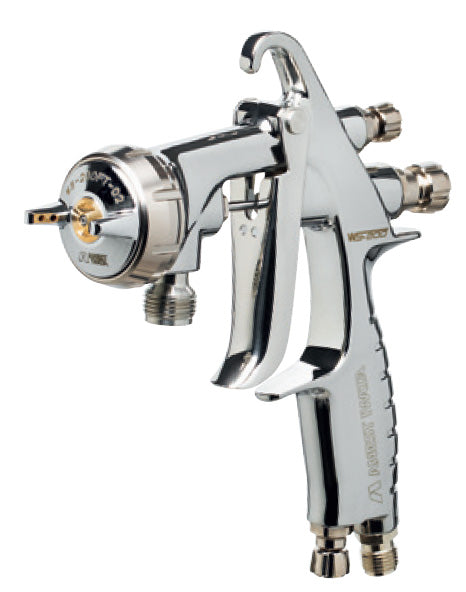

Anest Iwata Premium Pressure Fed Spray Gun
Manufacturer: Anest Iwata
Part #: WS-200FT-XX0X
Description: WS-200 Flat Tip Nozzle Pressure Feed Spray Gun.
Specifications:
Spare Parts:
| Ref. No. | Part No. | Description |
| 1 | 93002190 | AIR CAP SET |
| 2-1 / 2-2 | 9300XXX0 | FLUID NOZZLE + NEEDLE SET |
| 4 | 93007750 | BAFFLE RING AND PACKING |
| 6 | 93765610 | NEEDLE PACKING SET |
| 7 | 93001561 | PATTERN ADJUSTMENT |
| 8 | 93001640 | AIR VALVE SEAT SET |
| 8-1 | 93001680 | O RING |
| 9 | 93001690 | AIR VALVE |
| 10 | 93001700 | AIR VALVE SPRING |
| 11 | 93001710 | FLUID ADJUSTMENT GUIDE SET |
| 12 | 93002820 | NEEDLE SPRING SET |
| 12-1 | 93593530 | FLUID NEEDLE SPRING |
| 12-2 | 93001076 |
NEEDLE SPRING PACKING |
| 13 | 93001780 | FLUID ADJUSTMENT KNOB |
| 14 | 93001790 | AIR VALVE SHAFT |
| 15 | 93001801 | AIR ADJUSTMENT SET |
| 16 | 93001820 | TRIGGER SET |
| 17 | 93001870 | TRIGGER STUD |
| 18 | 93001960 | HEX. SOCKET BUTTON BOLT |
| 19 | 93505951 | UNIVERSAL SPANNER |
| 20 | 93019720 | BRUSH |
Accessories:
-
5655 Repair Service Kit
(includes: 6, 8, 10, 12, 17, 18)
