Binks AV-1239-80X Compact Automatic Gun, Air Cap

$179.00
Los gastos de envío se calcularán al momento de pagar.

Compact Automatic Gun, Air Cap

Manufacturer: Binks

Part Numbers: AV-1239-80X

Description: Compact Automatic Gun, Air Cap. See below for more information.

  • AV-1239-805
  • AV-1239-807
  • AV-1239-805MT

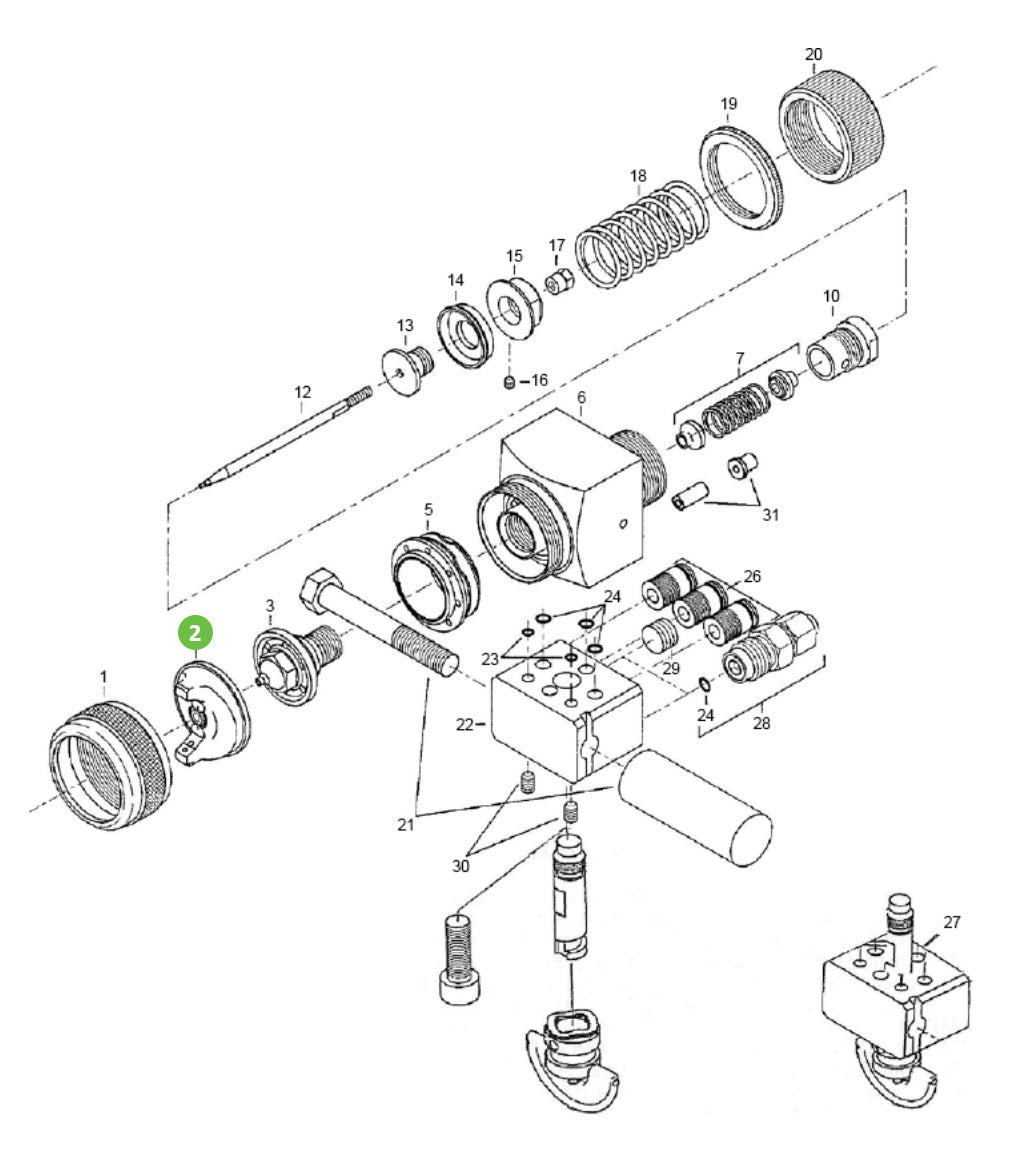

Item No. Part No. Description Qty
1 MSG-368  Retaining Ring 1
2

AV-1239-805

AV-1239-807

AV-1239-805MT

 Air Cap 1
3

T-AGHV-440-DFW

T-AGHV-440-DFX

T-AGHV-440-GD

T-AGPV-402-D

T-AGPV-409-D

AV-651-FX

AV-651-G

T-JGA-402-FZ

T-JGA-402-G

Tip & Needle Lapped Set

Tip & Needle Lapped Set

Tip & Needle Lapped Set

Tip & Needle Lapped Set (Niteralloy)

Tip & Needle Lapped Set (Tungsten)

Fluid Tip

Fluid Tip

Needle

Needle

1
5 T-AGPV-403 Baffle 1
6
Gun Body 1
7 AGX-7-K2  Needle Seal Kit (4 seals, 2 springs)  1
10 T-AGPV-13 Housing 1
12
Needle  1
13 T-AGB-101  Piston Flange 1
14 T-AGB-102  Piston Cup 1
15 T-AGB-103 Retainer 1
16 T-AGB-104-K5 Set Screw Kit of 5  1
17 T-AGB-105 Lock Nut  1
18 T-AGB-106 Needle Spring 1
19 T-AGPV-117 Lock Nut 1
20 T-AGPV-118 Adjusting Screw  1
21 AGX-3-K Mounting Stud Kit  1
22
Manifold  1
23 T-AGPV-140-K2 O-Ring Kit of 2 2
24 T-AGPV-131-K5 O-Ring Kit of 5 3
26 EC-6-R1/8A-M-R1001 Air Connector 3
27 T-AGPV-310  Bracket handle shaft assembly (include o-ring)  1
28 EF7014-1-1 Connector Kit for Fluid w/O-Ring (2 for circulating) 1
29
Plug 1/8 (None for circulating) 1
30
Set Screw M5xL8 2
31 KK-5017 Fluid Seal Kit for abrasives (3 seals, 1 collar)  1




Literature:

Binks charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.

Contact: 503-545-3176
