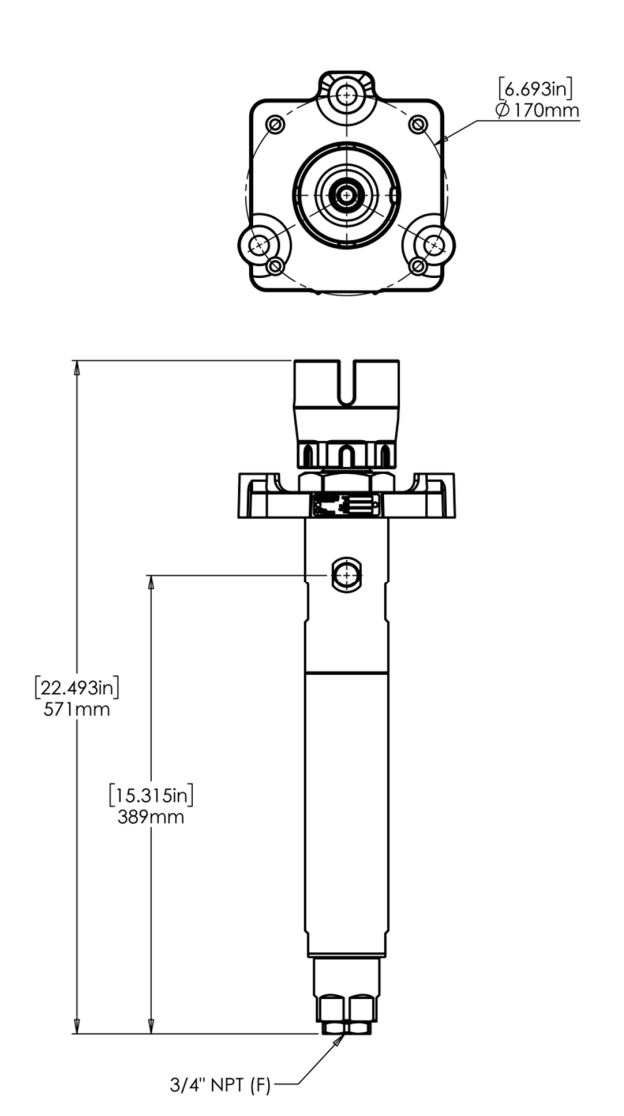

FX122 Fluid Section
Manufacturer: Binks
Part #: FX122PU-SMH
Description: FX122 Fluid Section
Specifications:
| Output @ 60 cycles / min: | 7.32 l/m [1.93 gpm] |
| Displacement per cycle: | 122 cc [4.12 oz] |
| Maximum fluid pressure: | 500 bar [7250 psi] |
| Ambient operating temperature: | 0 - 71° C [0 - 160 °F] |
| Stroke length: | 127mm [5 in] |

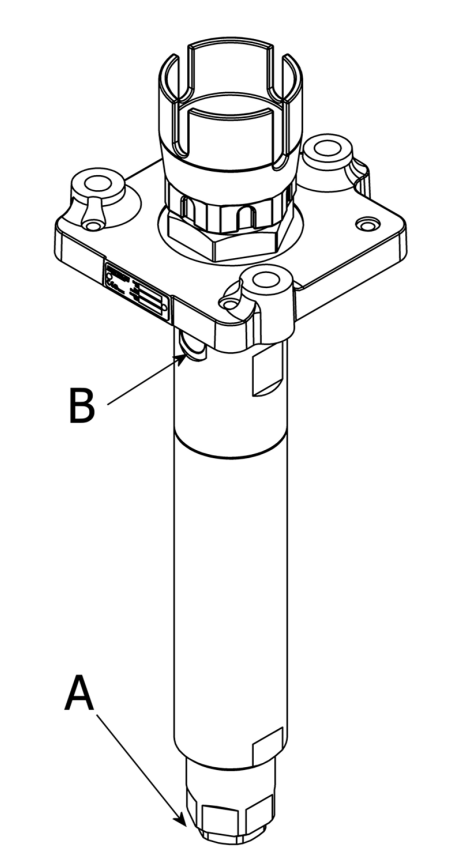

| Inlet size: | 3/4" NPT (f) "A" REFERENCE ABOVE |
| Outlet size: | 1/2" NPT (f) "B" REFERENCE ABOVE |
| Weight: | 10 kg [22 lbs] |
| Wetted parts materials of construction (Stainless Steel models): |
Nickel plated Carbon Steel, Stainless Steel, Ceramic coated Stainless Steel, PTFE, UHMWPE, Leather, Tungsten Carbide |
| Ref. No. | Part No. | Description |
Qty |
| 1 | 0114-014056 | VALVE SEAT | 1 |
| 2 |
0114-014237 |
BALL, Ø15 |
1 |
| 3+ | 0115-010140 |
LOWER BALL CAGE SEAL, FX12 |
1 |
| 4 | 0115-010642 | NAMEPLATE |
1 |
| 5+ | 162745 | O-RING, 29.9 X 1.78 | 2 |
| 6+ | 162825 | O-RING, 46 X 3 | 2 |
| 7 | 164838 | RIVET | 2 |
| 8 | 193181 | BALL | 1 |
| 9 | 193189 | SEAT |
1 |
| 10 | 193776 | LOWER BALL CAGE | 1 |
| 11+ | 193794 | PISTON SEAL | 1 |
| 12+ | 194088 | UPPER PACKING SET (PTFE/UHMWPE) |
1 |
| 13+ | 194089 | LOWER PACKING SET (PTFE/UHMWPE) |
1 |
| 14 | 194092 | UPPER PUMP TUBE |
1 |
| 15 | 194093 | PACKING SPRING |
1 |
| 16 | 194094 | PUMP ADAPTER PLATE | 1 |
| 17 | 194095 | UPPER SEAT RETAINER, FX122 | 1 |
| 18 | 194096 | PACKING NUT |
1 |
| 19 | 194097 | LOWER PUMP TUBE | 1 |
| 20 | 194098 | PACKING RETAINER | 1 |
| 21 |
194125 |
FOOT VALVE, FX122 |
1 |
| 22 |
194126 |
PUMP ROD, FX122 | 1 |
NOTE:
+ Parts are included in 250720 PTFE/UHMWPE - Seal Kit FX122
