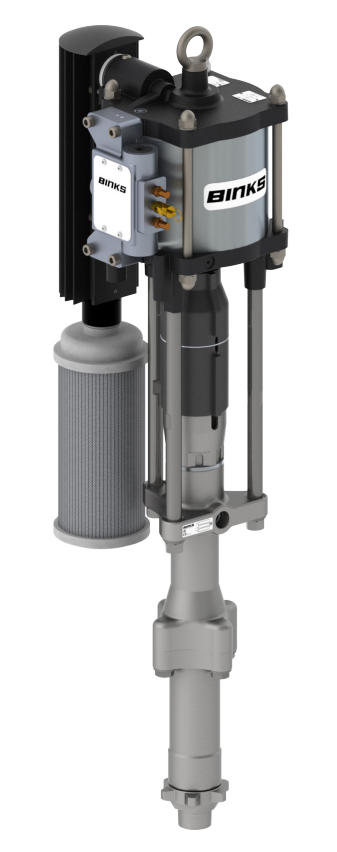

MX3536 Bare Pump Assembly, 36:1 (PTFE/UHMW)
Manufacturer: Binks
Part Number: MX3536PU-CAK
Description: The Binks MX3536 Bare Pump Assembly is a high-pressure, air-operated fluid pump designed for demanding industrial finishing applications. With a 36:1 ratio and heavy-duty construction, the MX3536 is well suited for air-assisted airless spray systems, high-viscosity coatings, primers, sealers, and other professional paint delivery setups. This bare pump assembly provides dependable fluid output and consistent pressure performance, making it a strong choice for spray finishing operations that require durability, serviceability, and reliable coating transfer.
Binks MX Pumps utilize patented magnetic detents to provide fast changeover with virtually no pulsation. The result is paint delivery with less pulsation for a more consistent finish. The MX displacement rod is ceramic coated which is the most abrasion resistant surface available for materials containing high solids.
| Specifications: |
| Ratio | 36:1 |
| Maximum air inlet pressure | 116 psi [8 bar] |
| Maximum fluid pressure | 4176 psi [288 bar] |
| Displacement per cycle | 7.4 oz. [220 CC] |
| Theoretical Output @ 60 cycles/min | 3.5 gpm [13.2 l/m] |
| Maximum recommended continuous cycle rate |
20 cycles/min [40 strokes] |
| Maximum recommended intermittent cycle rate |
30 cycles/min [60 strokes] |
| Maximum operating temperature | 160°F [71°C] |
| Piston diameter | 7.9 in [200 mm] |
| Nominal stroke length | 5 in [127 mm] |
| Air inlet connection | 3/4" BSPP / NPS (f) |
| Fluid inlet connection | 1 1/2" NPT (m) |
| Fluid outlet connection | 3/4" NPT (f) |
| Weight | 84 lbs. [38 kg] |
