Spring
Manufacturer: DeVilbiss
Part #: 873044
Description: Spring for models 845001, 845002 (red, 100 - 800 in. lbs)
Specifications:

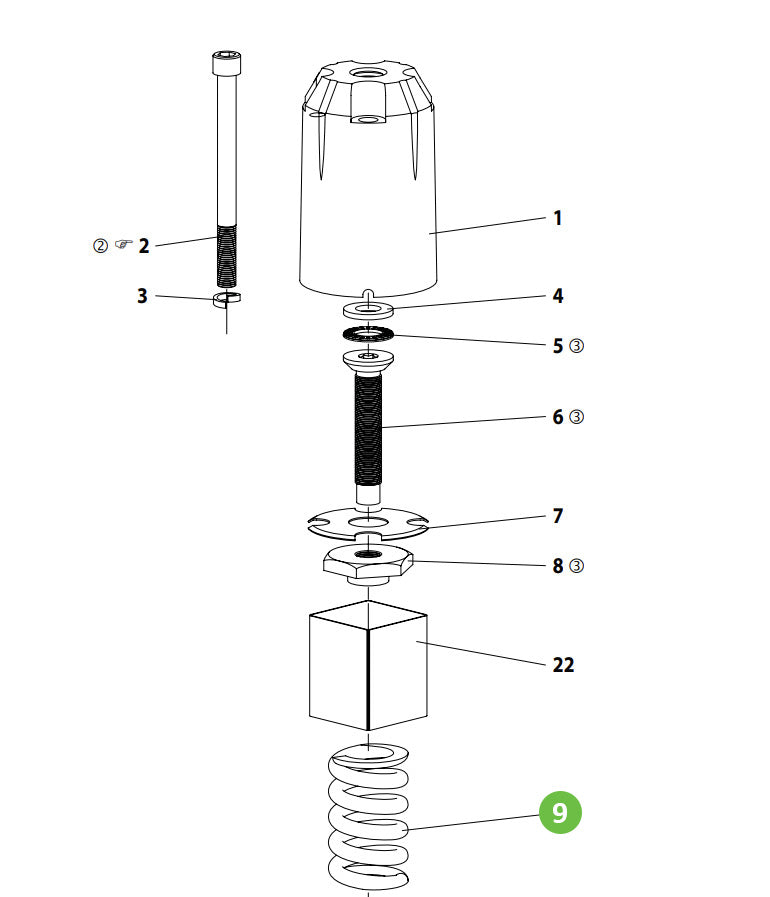

| Item No. | Part No. | Description | Qty |
| 1 | Housing | 1 | |
| 2 | Bolt (7/16” - 20 x 5”) | 4 | |
| 3 | Washer (7/16” i.d.) |
4 | |
| 4 | Washer (1.162” o.d. x 0 .125” thick) | 1 | |
| 5 | 873330 | Thrust Bearing (1.173” o.d. | 1 |
| 6 | 873331 | Adjusting Screw (5/8” - 24, left hand) | 1 |
| 7 | Plate | 1 | |
| 8 | 873332 | Adjusting Nut | 1 |
| 9 |
873043 873502 |
Spring - 845000, 845003 (gray, 50 - 200 in. lbs) 845001, 845002 (red, 100 - 800 in. lbs) 845004, 845005 (orange, 20 - 60 in. lbs) |
1 |
| 10 | Screw (#10 - 32 x 7/8”) | 1 | |
| 11 | Lockwasher (0.196” i.d.) | 1 | |
| 13 | Small Plate | 1 |
| 14 | Button | 1 | |
| 15 | Plate | 1 | |
| 16 | Diaphragm (0.062” thick, black) | 1 | |
| 17 | Diaphragm (0.020” thick, white) | 1 | |
| 18 | “O” Ring (3/32” x 1-7/8” o.d.) | 1 | |
| 20 | 3/8” Allen Wrench (not shown) | 1 | |
| 21 | Flush-Out Plug (not shown) (used on models 845001 and 845004 only) |
1 | |
| 22 |
873561 873562 |
Spring Stop 845004, 845005 (2.265” long) 845001 (2.359” long) |
1 |
| 23 |
Long Nipple (1/4 - 18 NPT x 4”) |
1 | |
| 24 | Coupling (1/4 - 18 NPT x 1-3/8”) | 1 | |
| 25 |
873041 873042 873503 |
Gauge - models 845000 and 845003 (0 - 300 p.s.i. models 845001 and 845002 (0 - 1000 p.s.i. / 0 - models 845004 and 845005 (0 - 60 p.s.i. / 0 - 4 |
1 |
| 26 | Stud (7/16” - 20 x 4”) (not shown) | 1 | |
| 27 | Nut (7/16” - 20) (not shown) | 2 | |
| 28 | Lock Washer (7/16”) (not shown) | 1 | |
| 40 |
873048 873047 |
Valve Stem (models 845003) (models 845001 and 845004) (models 845000, 845002 and 845005) |
1 |
| 41 |
“O” Ring (models 845003) (3/32” x 1-7/8” o.d.) (models 845000, 845001, 845002, 845004 and |
1 | |
| 42 | Seat | 1 | |
| 43 |
Ball (models 845001 only) (0.2500” dia.) (models 845004 only) (0.1875” dia.) |
1 | |
| 44 | Spring (models 845001 and 845004 only) | 1 | |
| 45 |
873058 |
Flow Tube (models 845003) (models 845000, 845001, 845002, 845004 and |
1 |
| 46 |
“O” Ring (models 845003) (0.116” x 1.279” o.d.) (models 845000, 845001, 845002, 845004 and |
1 | |
| 47 |
863006 |
Seat Plug (includes item 46) (models 845000, 845001, 845002, 845004 and 845005) (models 845003) |
1 |
| 48 | Base | 1 | |
| 52 | Pipe Plug (3/8 - 18 NPT) (except models 845003) | 1 |
Parts Kits:
- 863001 Valve Kit (for models 845000, 845002 and 845005)
- 863003 Diaphragm Repair Kit (for all models)
- 863004 Valve Kit (for model 845003)
- 863005 Valve Kit (for model 845001)
- 863007 Valve Kit (for model 845004)
- 863010 Rebuild Kit (for model 845001)
- 863011 Rebuild Kit (for models 845000, 845002 and 845005)
- 863012 Rebuild Kit (for model 845003)
- 863018 Rebuild Kit (for model 845004)
