DeVilbiss SPA-165-K2 Spring Button, Kit of 2
Precio normal
Precio unitario
/
Agotado
Los gastos de envío se calcularán al momento de pagar.
DeVilbiss SPA-165-K2 Spring Button, Kit of 2
Precio normal
Precio unitario
/
Agotado
Spring Button, Kit of 2
Manufacturer: DeVilbiss
Part #: SPA-165-K2

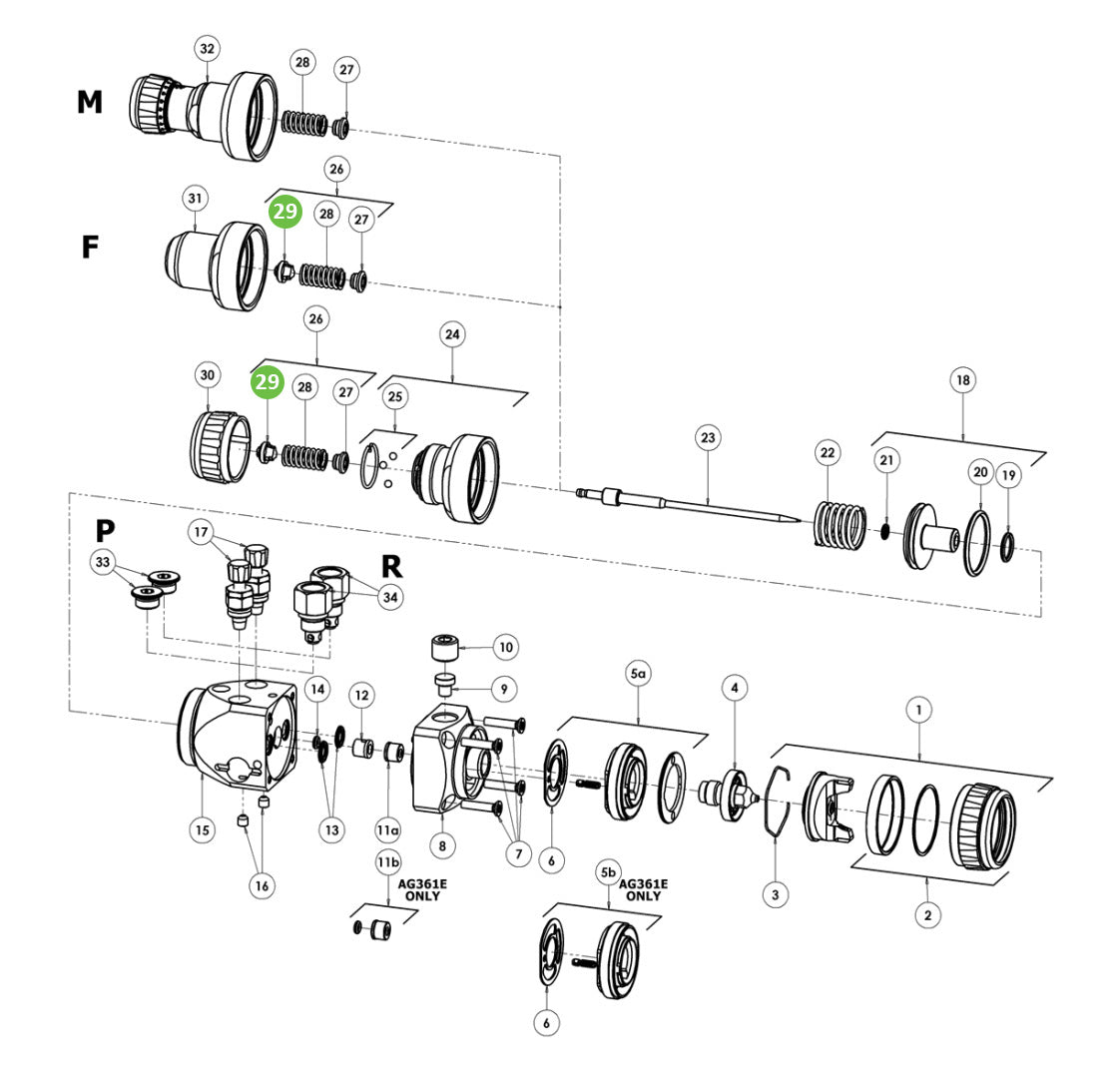

Description: Spring Button, Kit of 2. Reference number 29.
| Item No. | Part No. | Description | Qty |
| 1 | PRODUCT PAGE (CLICK HERE) | AIR CAP & RETAINING RING | 1 |
| 2 | PRO-405-K | RETAINING RING SUB ASSEMBLY | 1 |
| 3 | JGA-156-K | SPRING CLIP (KIT OF 5) | 1 |
| 4 | FLUID TIP | 1 | |
| 5a | SN-69-K | SPRAYHEAD & PIN ASSY | 1 |
| 5b | SN-69-US-K | SPRAYHEAD & PIN ASSY (AG361E ONLY) | 1 |
| 6 | SN-18-1-K2 | GASKET (KIT OF 2) | 1 |
| 7 | S-14192-K4 | TORX SCREW (KIT OF 4) | 4 |
| 8 | SPA-150-K | HEAD | 1 |
| 9 | SPA-158-K | PLUG | 1 |
| 10 | S-18226 | PLUG | 1 |
| 11a | SPA-159-K | NEEDLE PACKING | 1 |
| 11b | SPA-420-K | CERAMIC PACKING ASSY (AG361E ONLY) | 1 |
| 12 | SPA-157-K | PACKING SPACER | 1 |
| 13 | SPA-29X-K4 | O RING (KIT OF 4) | 2 |
| 14 | SPA-180X-K2 | O RING (KIT OF 2) | 1 |
| 15 | SPA-151-K | AG361 BODY | 1 |
| 16 | S-14193 | HEXAGON SOCKET SET SCREW | 2 |
| 17 | SPA-414-K | CONTROL VALVE | 2 |
| 18 | SPA-6X-K | PISTON & SEAL KIT | 1 |
| 19 | S-28220X-K2 | O RING (KIT OF 2) | 1 |
| 20 | S-28225X-K2 | O RING (KIT OF 2) | 1 |
| 21 | S-28219X-K4 | O RING (KIT OF 4) | 1 |
| 22 | SPA-13 | PISTON SPRING | 1 |
| 23 | PRODUCT PAGE (CLICK HERE) | FLUID NEEDLE | 1 |
| 24* | SPA-415-K | REAR HOUSING ASSEMBLY | 1 |
| 25 | SPA-KK-1 | RING AND BALL KIT | 1 |
| 26 | SPA-421-K | NEEDLE SPRING KIT | 1 |
| 27 | SPA-422-K2 | SPRING BUTTON (KIT OF 2) | 1 |
| 28 | SPA-31 | NEEDLE SPRING | 1 |
| 29 | SPA-165-K2 | SPRING BUTTON (KIT OF 2) | 1 |
| 30* | SPA-166-K | ADJUSTING KNOB | 1 |
| 31 | SPA-167-K | FIXED REAR HOUSING | 1 |
| 32 | SPA-417-K | MICROMETER ASSEMBLY | 1 |
| 33 | SPA-111-K2 | BLANKING PLUG | 2 |
| 34 | SPA-22-K2 | REMOTE CONNECTOR | 2 |
* PART OF KIT SPA-426-K
Literature:
Binks, which DeVilbiss is a part of, charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
Contact: 503-545-3176
