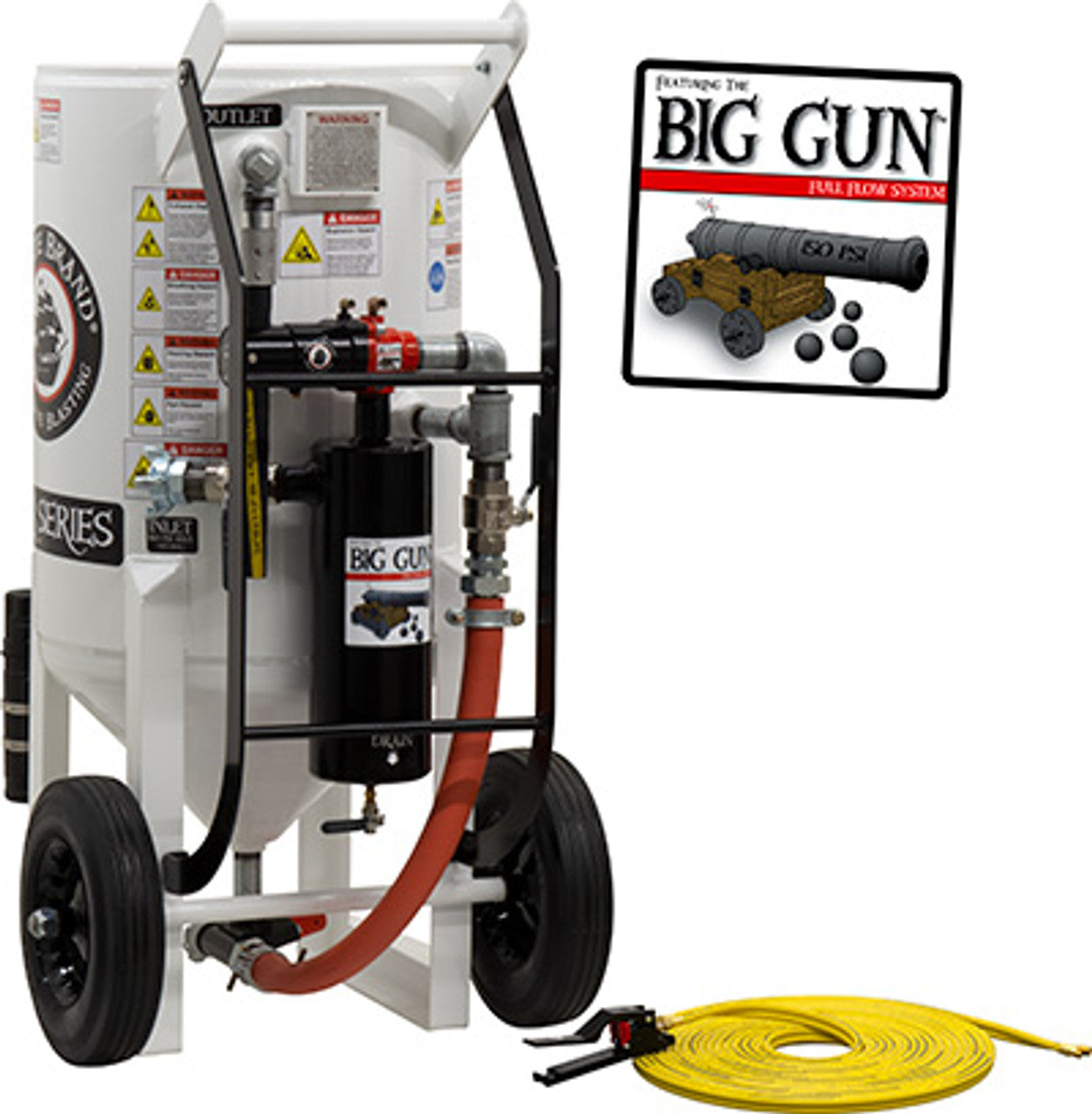

Pirate Brand, S-Series - BIG GUN™, 6.5 cu ft. - Blast Pot, Portable, Pressure RELEASE System, Pneumatic Controls

Pirate Brand, S-Series - BIG GUN™, 6.5 cu ft. - Blast Pot, Portable, Pressure RELEASE System, Pneumatic Controls

Manufacturer: Pirate Brand

Part Number: 888-0531-12914PB

Description: Portable abrasive blaster, 6.5 cu. ft.,150 PSI (10.3 BAR), pressure release system with pneumatic controls, MPV / Combination valves & moisture separator.

Includes:

• BIG GUN™ 1-1/2 Combination Valve
• BIG GUN™ Full Port Blast Hose Connection
• 55’ Twinline Pneumatic Control Hose

• Pneumatic Control Handle #2

Product Highlights:

A. 6.5 CU. FT. CAPACITY (185 LITERS)
     1. 150 PSI VESSEL (10.3 BAR)
     2. A.S.M.E. SECTION VIII DIVISION 1
     3. CRN FOR ALL PROVINCES
B. PRESSURE RELEASE SYSTEM
     1. AUTOMATICALLY BLOWS DOWN THE VESSEL WHEN CONTROL HANDLE IS RELEASED
     2. LOW MAINTENANCE DESIGN
     3. SIMPLE TROUBLE SHOOTING FOR IN FIELD REPAIRS
C. BIG GUN FULL FLOW SYSTEMS PROVIDES
     1. A ZERO PRESSURE DROP PATH FOR AIR & ABRASIVE TO TRAVEL TO THE BLAST NOZZLE FOR EVERY 1 PSI GAINED OR LOST IN ABRASIVE BLASTING = 1.5% PRODUCTION
     2. A MUST FOR #7 & #8 NOZZLES
     3. FULL PORT COUPLING BLAST HOSE CONNECTION PROVIDES AN UNRESTRICTED PATH FOR AIR & ABRASIVE TO TRAVEL TO THE NOZZLE
D. HEAVY DUTY BIG GUN MOISTURE SEPARATOR
E. 1-1/2" GALVANIZED PIPING FOR CORROSION RESISTANCE
F. HEAVY DUTY FULL PORT BALL VALVES
G. EXTENDED LIFE SCHEDULE 80 HEAVY DUTY NIPPLE
     1. WITHSTANDS ABRASIVE WEAR FOR LONGER LIFE
H. BOLT CLAMPS ON PUSHER LINE MAKE FIELD REPAIRS EASIER
I. COMBINATION VALVE/MPV VALVE
     1. COMBINATION VALVE IS A 2 IN 1 DESIGN THAT WILL STOP THE AIR BLASTING AND RELIEVES THE PRESSURE FROM THE VESSEL WHEN THE CONTROL HANDLE IS RELEASED
     2. MANUAL PLUNGER VALVE (MPV) IS A SIMPLE RELIABLE DESIGN THAT PROVIDES A WIDE RANGE OF ADJUSTMENT OF ABRASIVE FLOW TO THE NOZZLE
     3. RELIEVING CONTROL HANDLE REDUCES AIR CONSUMPTION AND REDUCES STOPPING TIMES WHEN CONTROL HANDLE IS RELEASED
J. INCLUDES LOADING SKID/VALVE GUARD

Compatible with the following OEM manufacturers -

TFS is not affiliated with nor is it endorsed by the above manufacturer(s). The product depicted above is not produced or authorized by the above manufacturer(s), with the exception of Forecast Sales/Pirate Brand.
