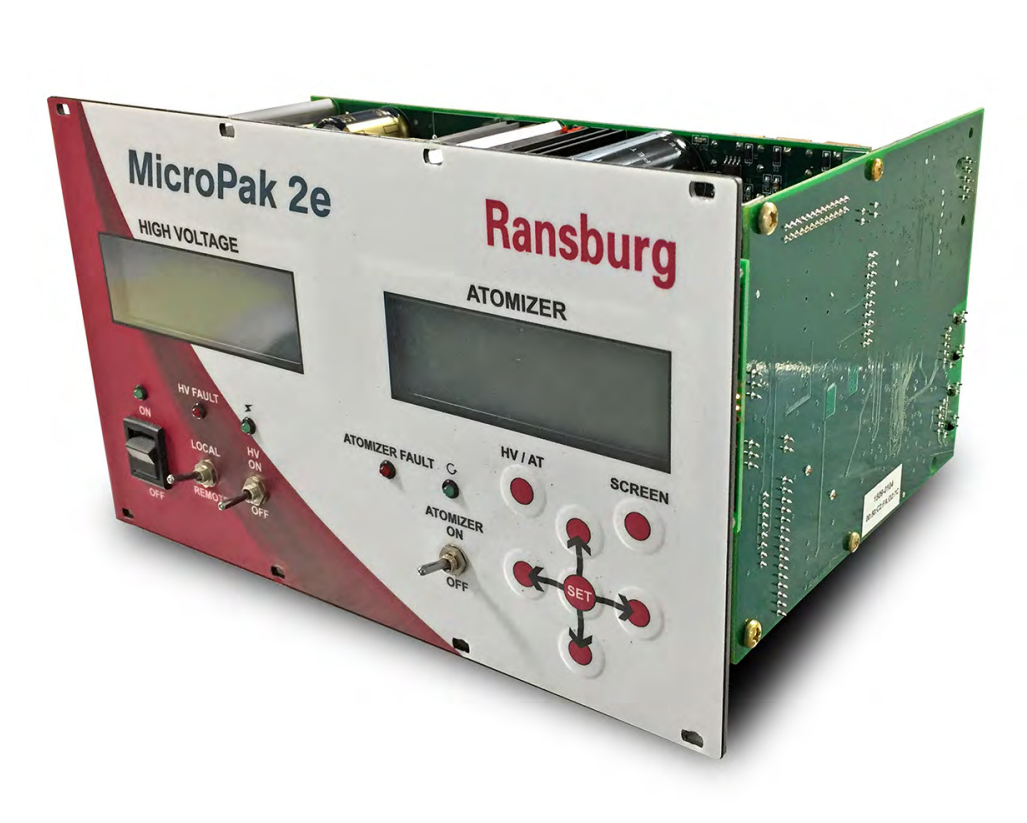

Ransburg A13338-00090910 MicroPak 2e Net High Voltage Controller
Ransburg A13338-00090910 MicroPak 2e Net High Voltage Controller
MicroPak 2e Net High Voltage Controller
Manufacturer: Ransburg
Part Number: A13338-00090910
Description: MicroPak 2e Net High Voltage Controller
The Ransburg MicroPak 2e (A13338-00), in conjunction with an appropriate cascade is used to provide high voltage for electrostatic application equipment. The controller is packaged in a single package measuring 5.1” tall X 8.5” wide X 6.5” deep (12.9cm tall x 21.6cm wide x 16.5cm deep). The controller can operate in “Local” and “Remote” conditions with either “Voltage Mode” or “Current Mode” of high voltage control.
The Ransburg MicroPak 2e Controller uses a combination of proven high voltage generation technology including microprocessor-based control with diagnostic and communication functions. It uses a variable voltage output to drive a cascade that amplifies the voltage to a high value. It also uses both current and voltage feedback information to maintain the desired set point. The processor circuitry provides the maximum in applicator transfer efficiency, while maintaining the maximum safety.
The MicroPak 2e also supports the use of Multifunction I/O Controllers (MIO) to provide additional functions. Currently two add-on controller versions are supported: 1) an Atomizer Controller and 2) a Discrete IO Interface.
