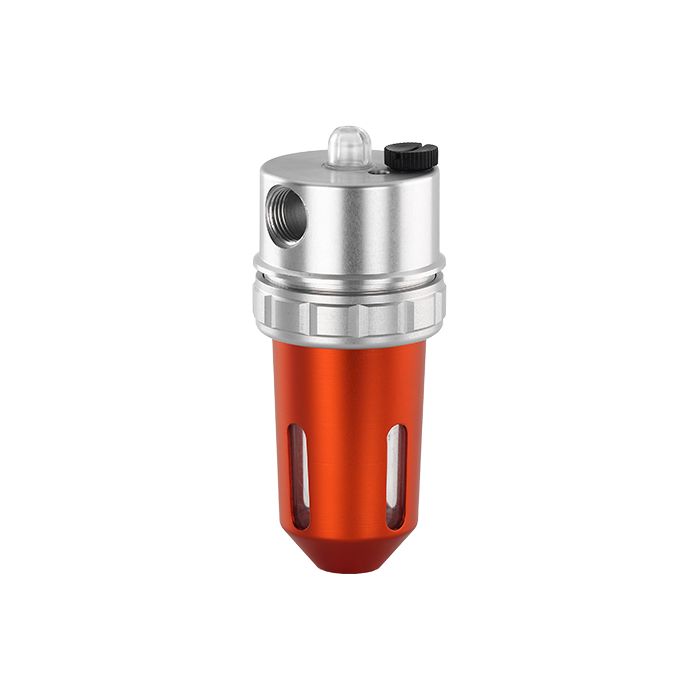

Sagola 437 Plus Air Lubricator
Manufacturer: Sagola
Part #'s: 1071030X
- 10710301 = Sagola 437 Plus Air Lubricator, 1/2" 0 - 10 Bar (0 - 145 psi)
- 10710302 = Sagola 437 Plus Air Lubricator, 3/8" 0 - 10 Bar (0 - 145 psi)
- 10710303 = Sagola 437 Plus Air Lubricator, 1/4" 0 - 10 Bar (0 - 145 psi)
Description: AIR LUBRICATOR. Ideal for the proper lubrication of pneumatic tools.
Safe operation from 3l/min. Minimum flow restrictions. Multiple inlet and outlet dimensions (1/2”, 3/8” y 1/4”). ft Oil level check window Manual oil regulator by level check window, drop by drop system. CNC manufactured in solid aluminum. Made in aluminum. Minimum maintenance.
Features:
- Safe operation from 3l/min.
- Minimum flow restrictions.
- Multiple inlet and outlet dimensions (1/2”, 3/8” and 1/4”). ft
- Oil level check window.
- Manual oil regulator by level check window, drop by drop system.
- CNC machined in solid aluminium.
- Made in aluminium.
- Minimum maintenance.
Packing List: Sagola 437 Plus Air Lubricator.
Specifications:
| Air Flow (at 7bar) | 1920l/min (67.8cfm) |
| Max Working Pressure | 10bar (145psi) |
| Max Working Temp | 90°C (194°F) |
| Dimensions | 165 x 73 x 73 mm (6.49 x 2.87 x 2.87”) without coupling |
| Weight | 446g (15.73lbs) |
Parts:
| Ref. No. | Part No. | Description |
| 06/1 | 11000112 | Connector - Brass: M-BSPT 1/2" to F-BSPP 3/8"; Pack of 2 |
| 06/2 | 11000113 | Connector - Brass: M-BSPT 1/2" to F-BSPP 1/4"; Pack of 2 |
- Sagola Anti-Static Compressed Air Hose, 1/4"
- 56418589 Lubricant Grease (SAE 10), 100ml (3.38fl oz)
Literature:
