PSAM 500 Airless Pressure Spray Gun
Manufacturer: Sagola
Part #'s: PG30170108 & PG30170111
Description: If you need a durable, high-pressure airless spray gun for thick primers and protective coatings, the Sagola 500 PSAM delivers consistent fan patterns at up to 500 bar (7,200+ psi) while staying light and comfortable for all-day use.

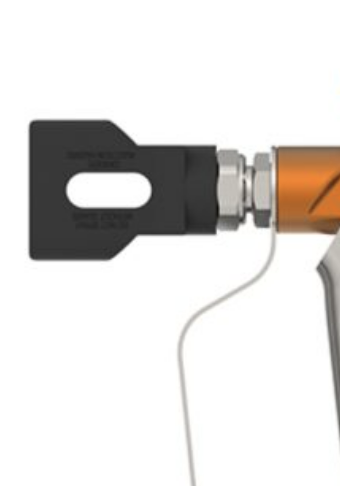

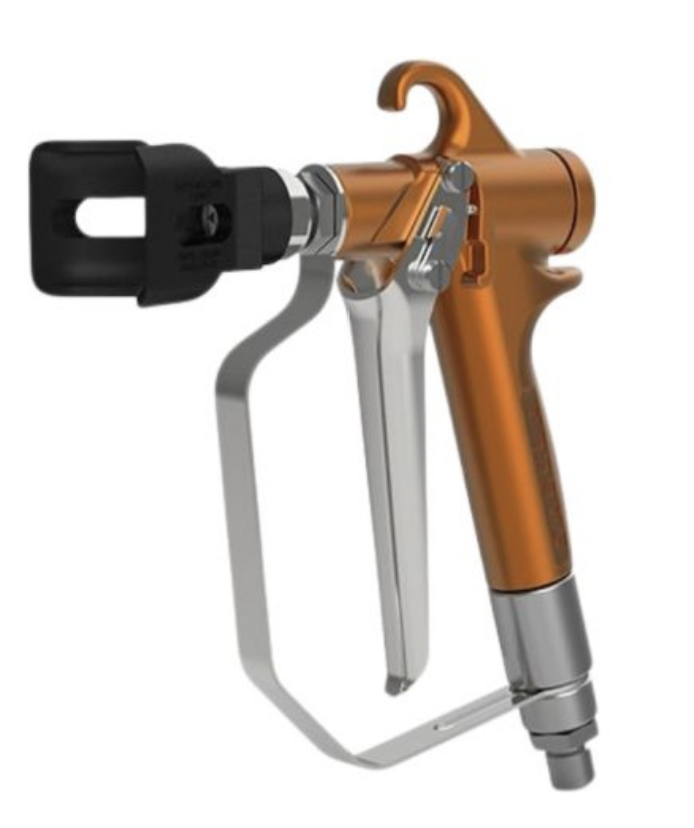

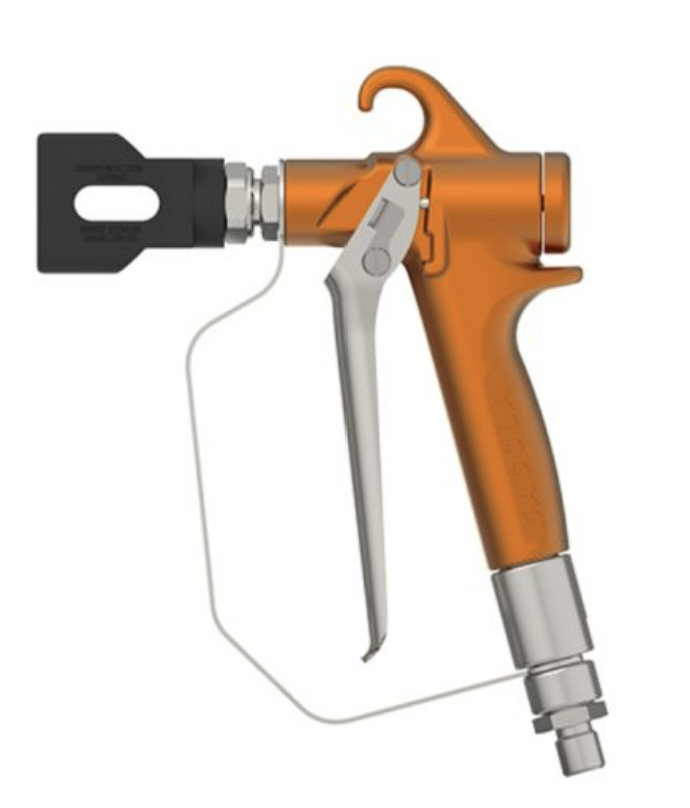

- PG30170108 = Sagola PSAM 500 Airless Spray Gun with Fixed Airless Spray Tip Guard (Black)

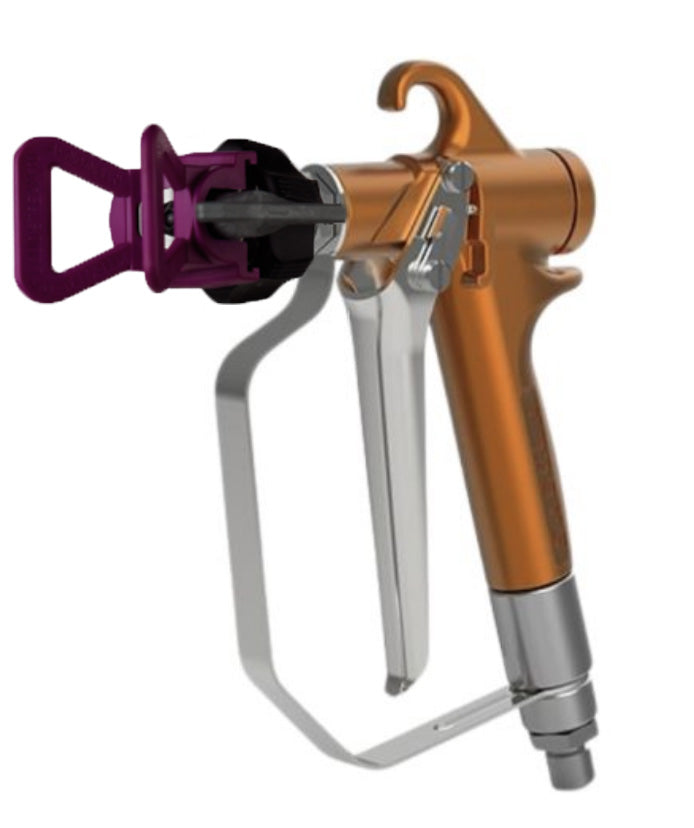

- PG30170111 = Sagola PSAM 500 Airless Spray Gun with Reversible Airless Spray Tip Guard (Purple)
Features:
- High pressure, high build: Up to 500 bar for rapid coverage and target film build.
- Durable internals: Tungsten-carbide seats/closures resist wear for longer service life.
- Control & comfort: Four-finger stainless trigger and ¼” swivel inlet reduce fatigue and hose twist.
- Cleaner finishes: Drop-in filters (50 / 100 / 200 mesh) cut clogs and improve atomization.
- Tip flexibility: Ships with reversible guard + RAC adapter for common RAC tips.
- Low maintenance: Metal-on-metal design with fewer soft parts to replace.
Packing List:
- Sagola 500 PSAM spray gun
- Fixed Black tip guard or Reversible Purple tip guard w/ GRACO RAC tip adapter
- Yellow 100-mesh filter (installed)
Airless spray tip not included.
Applications: Structural steel, tanks, trailers, shipyards, OEM/MRO, and industrial maintenance where speed, durability, and low overspray matter. Match tip size and filter mesh to the coating datasheet.
----------->Order Reversible Spray Tips Here<-----------
-------------->Order Fixed Spray Tips Here<--------------
Features:
• Ideal for continuous use lightweight and comfortable for use over long periods
• Robust and durable seats and closures manufactured in tungsten carbide
• Easy to use incorporates a ¼" revolving coupling and filter holder
Specifications:
| Dimensions: | 172 x 19 x 182 mm (6.78 x 0.75 x 7.18”) |
| Weight: | 510g (1.1lbs) |
| Product Inlet Coupling | 6.35mm (1/4”) BSP Male |
| Product Filter | White (50 Mesh); Yellow (100 Mesh); Red (200 Mesh) |
| Maximum Working Pressure | 500bar (7,252psi) |
| Average Sound Pressure Level | 80 dB |
| Materials in contact with product | Anodized aluminum, chromed aluminum, POM, INOX, Teflon and Nylon |
| Compliance | 2006/42/CE, ATEX II 2G, IIB T3 x' UNE-EN ISO 80079-36:20, UNE-EN ISO 12100:2012, EN12621, EN12162 & EN 1127-1 |
| Packing List: | Spray Gun Product Filter 100 Mesh (Yellow x1), Reversible Airless Spray Tip Guard & GRACO RAC Tip Adapter. Airless Spray Tip not included. |
Spare Parts & Accessories:
| Ref. No. | Part No. | Description |
| PT30010018 | Sagola 500 PSAM Product Needle & Nozzle Kit (including washers) | |
| 15/1 | PT30010008 | Spray Gun Product Filter (White) 50 Mesh, Pack of 10 |
| 15/2 | PT30010009 | Spray Gun Product Filter (Yellow) 100 Mesh, Pack of 10 |
| 15/3 | PT30010010 | Spray Gun Product Filter (Red) 200 Mesh, Pack of 10 |
| PT81461101 | Reversible Airless Tip Spray Guard | |
| 21 | PT56418698 | Fixed Airless Tip Spray Guard |
| PT49000353 | Sagola 500 PSAM Gracco RAC Tip Adapter | |
| 40000086 | Spray Gun Cleaning Kit | |
| 56418589 | Lubricant Grease (SAE 10), 100ml (3.38fl oz) | |
| PT40000245 | Magnetic Stand for One Spray Gun | |
| PT40000246 | Magnetic Stand for Two Spray Guns | |
| PT30010302 | Airless Spray Gun Extension: 300mm | |
| PT30010303 | Airless Spray Gun Extension: 500mm | |
| PT30010304 | Airless Spray Gun Extension: 1000mm | |
| 70000010 | Spray Gun & Accessories Locker |
