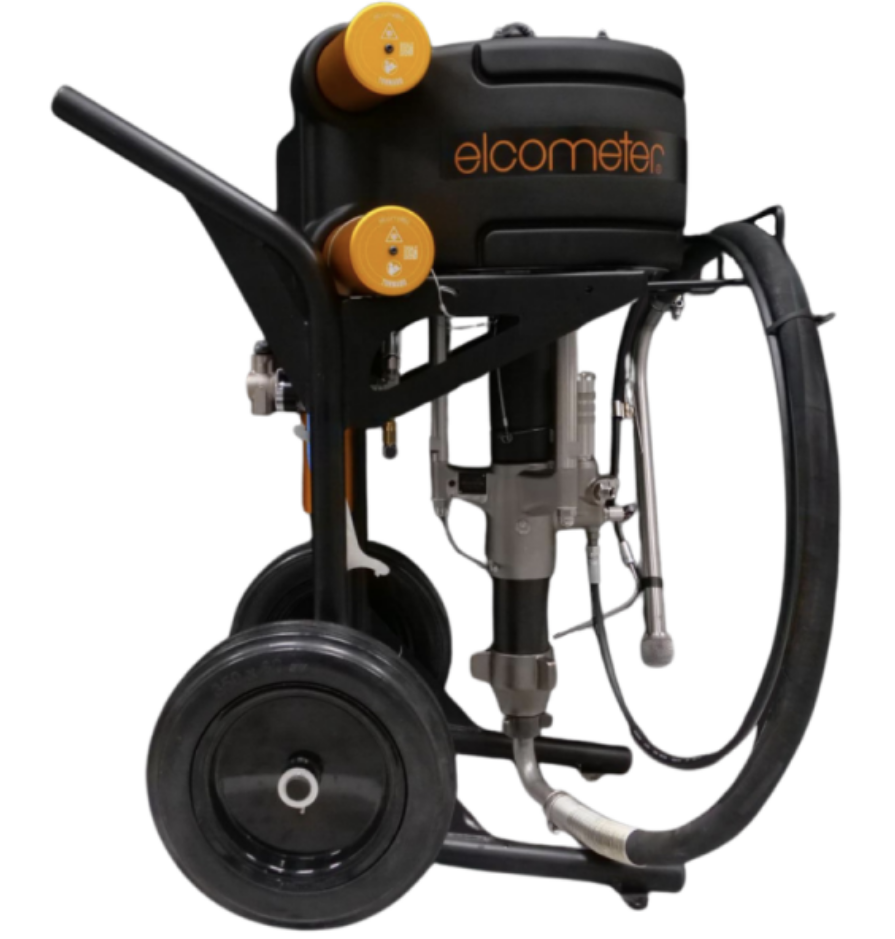

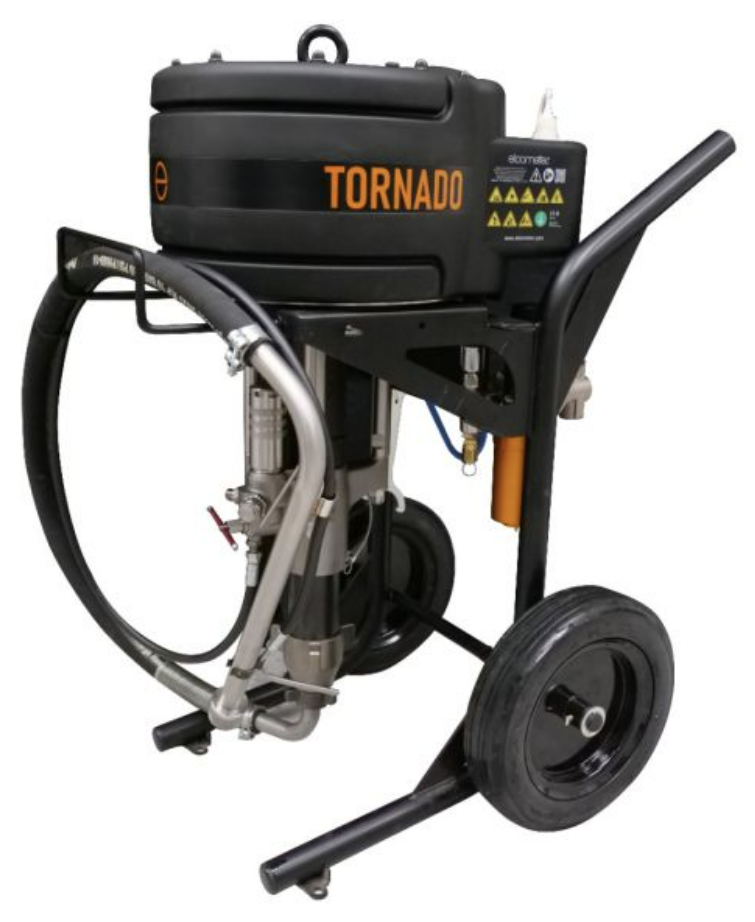

Sagola TORNADO Airless Piston Pump

$11,074.50
Los gastos de envío se calcularán al momento de pagar.

TORNADO Airless Piston Pump

Manufacturer: Sagola

Part #'s: See Below

Description: Engineered to quietly deliver high performance in the harsh environments of the protective coatings industry.

With its high-volume, high-pressure output, the Sagola Tornado is available as industry standard 71:1 and 43:1 ratio pumps - to tackle the most demanding jobs efficiently and reliably, even with the toughest protective coatings.

LTL Freight Shipping Only. You will be contacted with a freight quote after placing order.

Features:

  • Reliable Performance: Designed to handle the toughest high volume
    protective and corrosion resistant coatings in almost
    all environments.
  • Tough Engineering: With smooth changeovers, low pulsation, and easy onsite
    maintenance, the Sagola Tornado Airless Pump has
    been engineered from the ground up and built to last.
  • Whisper Quiet Spraying: The Sagola Tornado’s unique dual exhaust silencers
    and anti-icing technology ensure quiet and reliable
    operation in either hot or cold climates.
  • Easy Onsite Maintenance: Quick release assemblies and integrated tool storage reduce downtime and maintenance effort.
  • Versatile Application: Ideal for protective coatings, marine coatings, high solid epoxy, coal tar primers, zinc coatings, and more.


Ideal for use with: TORNADO 71 TORNADO 43
Solvent Based X X
Water Based X X
1K Epoxy Coats X X
Inorganic Zinc Primers
X
100% Volume Solid Epoxy Coatings X X
Glass Filled Epoxy Coatings X X
Anti-Fouling Marine Coatings X X
Solvent Based 1K Polyurethane Coatings X X
Solvent Based 2K (pot life 1 hour and above) X
Flame Retardant Barrier Coats (Class B) X X
Coal Tar Epoxy X X


Pump Specifications:

TORNADO 71 TORNADO 43
Ratio 71 : 1 43 : 1
Compatible product that can be sprayed Protective Coatings Protective Coatings
Fluid Temperature Range 4.4 to 60°C (40 to 140°F) 4.4 to 60°C (40 to 140°F)
Hydraulic Cylinder 270cc (3.57gpm) 270cc (3.57gpm)
Maximum Sound (70 psi (0.48 MPa, 4.8 bar)
at 15 CPM per ISO-9614-2)		 88dB 84dB
Power Source Air Air
COMPOSITION OF PARTS IN CONTACT WITH PRODUCT (WET)
Seats Tungsten Carbide Tungsten Carbide
Balls Stainless Steel Stainless Steel
Pump Body / Cylinder Housing Stainless Steel Stainless Steel
Piston Rod Stainless Steel Stainless Steel
Packing Kit PTFE, UHMWPE & Leather PTFE, UHMWPE & Leather
AIR
Air Pressure Operating Range 1-6 bar (14-87 psi) 1-6 bar (14-87 psi)
Maximum Air Consumption (60 cycles/min) 6894 lpm (243.46 cfm) 4187 lpm (147.86 cfm)
Air Consumption at 100bar (1450psi) & 6.5CPM 175.8 lpm (6.21 cfm) 175.6 lpm (6.2 cfm)
Maximum Air Inlet Pressure 6 bar (87 psi) 6 bar (87 psi)
Air Inlet  3/4” BSP Female 3/4” BSP Female
Compressor Requirements (Minimum) 75.8 lpm (6.21 cfm) 75.8 lpm (6.21 cfm)
Ambient Air Temperature Operating Range -10 to 60°C (14 to 140°F) -10 to 60°C (14 to 140°F)
FLUID / PRODUCT
Maximum Fluid Outlet Working Pressure 425 bar (6164 psi) 260 bar (3771 psi)
Fluid Outlet Size Outlet 1: 3/8” BSP M
Outlet 2: ½” BSP M
(Supplied with adapter to reduce outlet 2 to 3/8” BSP M)		 Outlet 1: 3/8” BSP M
Outlet 2: ½” BSP M
(Supplied with adapter to reduce outlet 2 to 3/8” BSP M)
Stroke Length 120mm (4.72”) 120mm (4.72”)
Maximum Spray Tip Size Dependent on product being sprayed and application Dependent on product being sprayed and application
Product Output per Cycle* 270cc (0.07 US gal) 270cc (0.07 US gal)
Free Flow Delivery @ 60 CPM+ 16.2lpm (547.79 fl oz/min) 16.2lpm (547.79 fl oz/min)
Number of Guns 1-2 spray guns~ 1 spray gun
DIMENSIONS

Dimensions (Trolley Mount) 839 x 623 x 1054mm
(33 x 24.5 x 41.5”)		 839 x 623 x 1054mm
(33 x 24.5 x 41.5”)
Weight (with Suction Hose) 102kg (225 lbs) 92kg (203 lbs)
Weight (with Hopper) 121kg (267 lbs) 111kg (245 lbs)
* Product Output per Cycle = Fluid Displacement per Cycle
+ Maximum values with water as test media.
~ Supports up to 2 spray guns, contact TFS Support ( for further information.
    • Pump Only (includes Trolley & Suction Hose):
      • PSP43AL-TZ = TORNADO 43 Pump
      • PSP71AL-TZ = TORNADO 71 Pump
    • Pump Package without Spray Gun (includes Trolley, Suction Hose, 15m (49.2ft) Product Hose with 1.5m (4.9ft) Whip Hose, & Integrated Pump Filter:
      • PSP43AL-T = TORNADO 43 Pump package without gun
      • PSP71AL-T = TORNADO 71 Pump package without gun
    • Pump Package with Spray Gun (includes Trolley, Suction Hose, 15m (49.2ft) Product Hose with 1.5m (4.9ft) Whip Hose, Integrated Pump Filter & Sagola PSAM 500 Airless Spray Gun with Reversible Tip Spray Guard & Reversible Airless Spray Tip: 19/40: 0.019”/0.48mm, 40 Deg:
      • TN43-PS500-15 = TORNADO 43 Pump package with gun
      • TN71-PS500-15 = TORNADO 71 Pump package with gun

    When selecting a model, the following options are available:

    Pump Type: TORNADO 71 (71:1) & TORNADO 43 (43:1)

    Order Type: Pump Only or Spray Pump Package

    Mount Type: Trolley

    Spray Package Type: No Gun or With Gun

    Gun Type: Sagola PSAM 500 Airless Spray Gun w/ reversible tip and guard

    Accessories: 10 Gal Hopper Kit is optional and can be ordered here or below.

    All ordering will be by part #, please refer to them above

    Parts and Accessories:

    Stainless Steel Product Hopper Kit:

    Part No. Description
    PT30090389 Hopper Kit 38 litre (10 US Gallon)



    Airless Product Hose:

    High pressure airless product hose: Working pressure: 6,164 psi (425 bar). ID: 9.6mm (0.38”) x OD: 17.5mm (0.69”) with 1/4" swivel couplings.
    High pressure airless whip hose: Working pressure: 6,527 psi (450 bar). ID:6mm (0.236”) x OD: 13.5mm (0.354”) with 1/4” swivel couplings.

    PT56414131 High Pressure Airless Product Hose Set (includes 15m (49.2ft) High Pressure Airless
    Product Hose, 1.5m (4.9ft) Whip Hose and 1/4” to 3/8” Adapter)
    PT86463831 High Pressure Airless Product Hose 15m (49.2ft)
    PT56414110 High Pressure Airless Whip Hose 1.5m (4.9ft)
    PT55750311 1/4” to 3/8” Adapter
    PT85761110 3/8” M-M Stainless Steel Connector for High Pressure Hose



    Airless Spray Guns:

    Sagola PSAM 500 Airless Spray Gun with reversible tip spray guard. Maximum pressure 7,252psi (500 bar).

    PG30170111 Sagola PSAM 500 Airless Spray Gun with Reversible Tip Spray Guard
    PG30170108 Sagola PSAM 500 Airless Spray Gun with Fixed Tip Spray Guard



    elcoTOUGH™ Packings:

    Engineered to be abrasive, solvent and wear resistant, ensuring a tight pump seal for a better and more consistent performance.

    PT56418753 elcoTOUGH™ Upper Packing Kit: UHMWPE, PTFE & Graphite Filled PTFE
    PT56418754 elcoTOUGH™ Upper Packing Kit: UHMWPE & Leather
    PT56418749 elcoTOUGH™ Lower Packing Kit: UHMWPE, PTFE & Graphite Filled PTFE
    PT56418750 elcoTOUGH™ Lower Packing Kit: UHMWPE & Leather



    Spare Parts:

    Ref. No. Part No. Description
    01 PT30090024 Suction Hose Replacement Filter
    03 PT57110036 Engine Cover Casing
    04 PT57250416 Screw, DIN 921 M6 x 8 Blued
    05 PT55712189 Swivel Plug Fitting 1/2 x 14 F BSPP
    06 PT56410114 Coupling Assembly
    07 PT52710319 Shaft Protective Housing
    08 PT53111319 Shaft Spacer
    09 PT86463905 Purge Hose Assembly
    10 PT57451006 Screw, DIN 1587 M14 x 12 S.S.
    11 PT50850411 Washer DIN 125 14 S.S.
    12 PT56410156 Coupling Spring Assembly
    13 PT56411450 Grounded Coiled Electrical Cable Lug M8
    14 PT56417138 Exhaust Pipe Assembly
    15 PT30090100 Piston Seal Packing Oil, 500 ml (16.90 fl oz)
    16 PT85762144 Rubber Stopper for 40 dia Hose
    18 PT80860403 Zinc-Plated Washer DIN 125 25, 4
    19 PT56250205 Flat Bushing Rubber Fixing
    20 PT56418764 Complete Absorption Valve Kit
    21 PT51250121 S.S. Ball DIN 5401 1"-3/8"
    22 PT50850406 Washer DIN 125 10
    23 PT56414725 Hydraulic Piston Sub Assembly
    24 PT51910810 Bushing Packing Gland (Wet Cup)
    26 PT52713035 Absorption Valve Body
    27/1 PT56418749 elcoTOUGH™ Lower Packing Kit: UHMWPE, PTFE & Graphite Filled PTFE
    27/2 PT56418750 elcoTOUGH™ Lower Packing Kit: UHMWPE & Leather
    28 PT51250120 S.S. Ball DIN 5401 22mm G-20
    29 PT56417217 Hydraulic Piston Valve Seat Sub Assembly
    30 PT51910809 Packing Housing
    31/1 PT56418753 elcoTOUGH™ Upper Packing Kit: UHMWPE, PTFE & Graphite Filled PTFE
    31/2 PT56418754 elcoTOUGH™ Upper Packing Kit: UHMWPE & Leather
    32 PT56418765 Hydraulic Cylinder O-Ring Kit
    33 PT52110317 Hydraulic Cylinder
    34 PT57450703 Blackened Nut DIN 6963 M8X1.25
    35 PT57410016 Cylinder Nut Screw Lock
    36 PT57210019 Cylinder Locking Screw
    37 PT52910012 Rupture Disc 1/4" 8000 PSI
    38 PT54710285 Cylindrical Spring 20.4 x 16 x 1.6
    39 PT50710020 Antipulse Filter Seat
    40/1 PT83660505 Antipulse Filter 30 Mesh
    40/2 PT83660030 Antipulse Filter 60 Mesh
    40/3 PT83660029 Antipulse Filter 100 Mesh
    41 PT56310054 Wall Bracket Hook
    42 PT56417509 Drain Valve
    43 PT56416817 Hydraulic Cylinder Complete Assembly
    44 PT85760004 Connection 1/4 x 19 M to 1/4 x 19 M
    45/1 PT56416818 Tornado 71:1 - 320mm Pneumatic Cylinder Complete Assembly
    45/2 PT56416823 Tornado 43:1 - 250mm Pneumatic Cylinder Complete Assembly
    46 PT50250015 Blued Eye Bolt DIN 580 M16X2
    47 PT55710514 3/4" M Banjo Elbow Fitting
    48 PT54250030 Metal Joint + Buna 3/4"
    49 PT55710006 Banjo Elbow Valve
    50 PT54250950 O-Ring 21.8 x 3.53mm
    51 PT54250815 O-Ring 23.52 x 1.78 NBR
    52 PT52710803 Pneumatic Manifold Body / Valve - Cylinder
    54 PT55751812 Variable Connection M5 to 4mm with Gasket
    55 PT55750819 Elbow Fitting M-H 3/4"
    56 PT57250829 Screw; DIN 912 M5 x 85 Zinc Plated
    57 PT50850702 Washer M5
    58 PT80860405 Polished Washer DIN 125 5
    59 PT57510016 Bistable Pneumatic Valve 5/2 1/2"
    60 PT85760812 Elbow 1/8"
    61 PT57510017 Bistable Pneumatic Valve 3/4"
    62 PT55710516 Fitting 3/4" M-M BSPT
    63 PT55710251 Fitting 1/2" x 14 M A 3/4" x 14 M BSPT
    64 PT50810260 Washer Seal Purge Valve
    65 PT85760315 Automatic Fitting M5 to Tube
    66 PT85762138 Rubber Plug for Outer Tube
    67 PT56417219 Pneumatic Cylinder Limit Switch Valve
    68 PT57451007 Screw; DIN 1587 M10 x 150 Blued
    69 PT80860501 Washer DIN 433 10
    70 PT57110505 Pneumatic Cylinder Top Plate
    71/1 PT52110318 Tornado 71:1 - 320mm Pneumatic Cylinder Cover
    71/2 PT52110321 Tornado 43:1 - 250mm Pneumatic Cylinder Cover
    72 PT56418763 Air Motor Lower Packing Kit
    73 PT57110504 Pneumatic Cylinder Lower Plate
    74 PT57211917 Distancer Rod
    75 PT56410154 Tornado Spanner
    76 PT87260404 Screw; DIN 7984M 5x10
    77 PT52410023 Stainless Steel Retaining Cable
    78 PT56410155 Axle Casing Mounting Kit
    79 PT53110029 Quick Coupling End Shaft
    80/1 PT54251038 O-Ring 303 x 7 NBR 70 Shore A
    80/2 PT54251045 O-Ring 234.32 x 6.99 NBR 70 Shore A
    81/1 PT56413216 Tornado 71:1 - 320mm Pneumatic Cylinder Piston
    81/2 PT56413217 Tornado 43:1 - 250mm Pneumatic Cylinder Piston
    82 PT56410112 Air Regulator / Purifier Sub Assembly
    83 PT57510018 Elbow Valve 3/4"
    85 PT56417715 Air Regulator / Purifier Main Drain Cup Sub Assembly
    100 PT51911518 Cylindrical Spring Support Pan End Bush
    101 PT57450904 Hexagonal Nut; M6
    104 PT57810341 Air Pressure Regulator Wheel with Shaft
    105 PT56414016 Air Regulator / Purifier Air Hose Pump
    106 PT55752013 Connection T-HHM 3/4"
    107 PT55710517 Fitting 3/4"M - 3/8"H
    108 PT57511107 Security Valve 6BAR BSP 3/8"X19H"
    111 PT57250702 Screw
    112 PT52310008 Stud
    113 PT57450909 Hexagonal Nut; M8
    114 PT56310050 Hose & Spray Gun Support
    115 PT87261010 Screw; DIN 933M 10 x 20 88P
    131 PT50150004 Suction Hose Clamp
