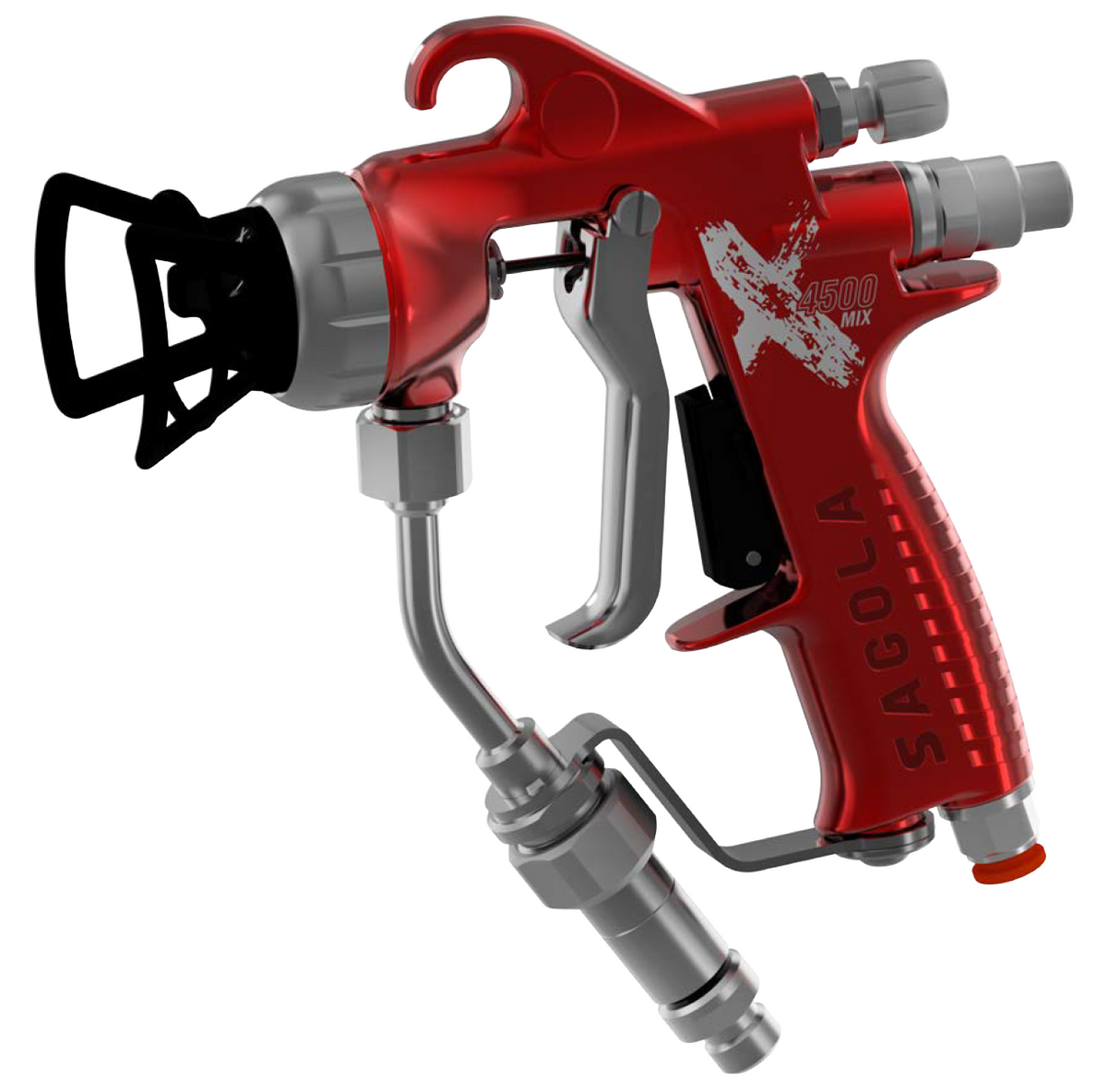

Sagola X4500 Mix Air-Assisted Airless Spray Gun

X4500 Mix Air-Assisted Airless Spray Gun

Manufacturer: Sagola

Part Number: 3513070X

Description: The Sagola X4500 Mix Spray Gun is a durable, high-performance air-assisted airless gun designed for professional industrial finishing. Its hybrid MIX technology combines pressurized fluid delivery with air-assisted atomization, providing the application speed and transfer efficiency of an airless system with the spray control and finish quality of an air spray gun. This combination produces a stable, uniform spray pattern while helping reduce overspray, coating consumption and rework.

Designed for demanding production environments, the X4500 Mix features a forged and anodized aluminum body with corrosion protection inside and out. Precision-machined components, stainless-steel construction in critical areas and tungsten-carbide nozzle and needle closures provide dependable performance when spraying abrasive, high-viscosity or frequently used industrial coatings. The gun is rated for fluid pressures up to 200 bar, making it suitable for use with compatible air-assisted airless pump systems.

An automatic one-piece product packing gland simplifies servicing and can be removed for thorough cleaning of the fluid passage. Metal-to-metal contact in critical fluid areas eliminates unnecessary seals near the application zone, helping reduce component wear, leakage points and maintenance downtime.

The X4500 Mix is engineered for comfortable, controlled operation during extended spraying sessions. Its 42 mm handle provides a substantial grip, while the balanced weight distribution and smooth-action stainless-steel trigger help reduce fatigue. The Soft Flow air valve maintains smooth trigger movement at elevated air pressures, and the adjustable fan control allows the operator to regulate spray-pattern width for different parts and coating requirements.

A rotating filter holder improves hose alignment and allows greater freedom of movement around large or complex workpieces. It also helps prevent the fluid hose from twisting during use. An integrated trigger-locking system provides additional safety during cleaning, maintenance and equipment downtime.

Available with 11/40 or 13/40 MIX tips, the X4500 can be ordered with either an 8 mm quick-connect or M16 air inlet. The 1/4-inch BSP male fluid inlet is available as a fixed connection or with a rotating swivel coupling, allowing the gun to be configured for different hose assemblies and finishing systems.

Features

• Air-assisted airless technology for fine atomization and efficient material transfer
• Stable, uniform spray pattern with reduced overspray
• Suitable for high-viscosity industrial coatings
• Maximum fluid pressure up to 200 bar
• Forged and anodized aluminum gun body
• Internal and external corrosion protection
• Tungsten-carbide nozzle and needle closures
• Stainless-steel needle and smooth-action trigger
• Automatic one-piece product packing gland
• Metal-to-metal contact in critical fluid areas
• Adjustable fan-pattern control
• Rotating filter holder for improved hose movement
• Integrated trigger safety lock

Recommended Applications

The Sagola X4500 Mix is suitable for production finishing in the furniture, cabinetry, woodworking, metal fabrication, machinery, commercial vehicle and general industrial sectors. It can be used with compatible:

• Varnishes and lacquers
• Enamels and topcoats
• Primers and sealers
• Polyurethane coatings
• One- and two-component finishes
• Solvent-based coatings
• Waterborne coatings
• Medium- and high-viscosity materials

Specifications

Spray technology:	Air-assisted airless / hybrid MIX
Net weight:	602.5 g / 1.32 lb
Weight with swivel coupling:	642.5 g / 1.41 lb
Dimensions:	16.2 × 17.8 cm / 6.3 × 7 in
Dimensions with swivel:	16.2 × 19.9 cm / 6.3 × 7.8 in
Recommended atomizing-air pressure:	2 bar / 29 psi
Air inlet options:	8 mm quick connector or M16 fitting
Fluid inlet:	1/4-inch BSP male
Fluid-inlet options:	Fixed or rotating swivel coupling
Fluid-filter options:	60 or 100 mesh
Average sound-pressure level:	80 dB
Wetted materials:	Brass, stainless steel, tungsten carbide, PTFE, polyamide and FKM
Available tip sizes:	11/40 and 13/40



Parts and Accessories

Ref. No.	Part No.
01	56418790
02	See AAA Spray Tip Table
03	56418614
04	50850605
05	51910623
06	57251403
07	56413707
08	57250415
09	56418785
10	56418784
11	51911116
12	57251904
13	55751810
14/1	56418053
14/2	56418054
14/3	83660037
15	56410110
16	56418046
17	10011296
18	54251050
19	50810258
20/1	54710288
20/2	54710289
21	57810343
22	56411624
23	54710312
24	54110012
25	50810202
26	56418612
27	56415256
28	50210214
29	54110013
30	30010211

Optional Air-Assisted Airless Swivel Head and Tips

Reversible Mix Spray Tip Guard, Swivel Head Part No. 81450000 Optional accessory designed for the Sagola X4500 Mix air-assisted airless spray gun. It allows the X4500 Mix to accept compatible reversible AAA spray tips, expanding the gun’s nozzle options for different materials, flow rates and finish requirements. Its swivel design makes it easy to position the tip while maintaining a secure connection to the spray gun.

AAA Swivel Tip - Standard and LP/FF (Low Pressure/Fine Finish) Part No. 81450XXX Standard tips provide higher material output and greater coverage for production spraying, while LP/FF Low Pressure/Fine Finish tips deliver finer atomization and improved finish control at lower operating pressures. Their reversible design allows the tip to be rotated for quick clearing of material blockages. Available in multiple orifice and fan-pattern sizes to suit different coatings and application requirements.



Literature:

• AAA Tip Chart
