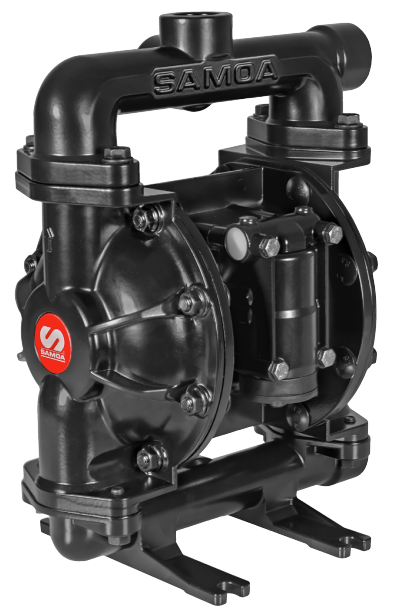

SAMOA CP10 Pivot Series 1" Metallic Air-Operated Double Diaphragm Pump

CP10 Pivot Series 1" Metallic Air-Operated Double Diaphragm Pump

Manufacturer: SAMOA

Part Number: CP10A-XXX-XXX

Description: The 1" (25 mm) air operated diaphragm pumps, made of cast metal, feature a compact design and can reach a flow rate of up to 130 l/min (35 gal/min). They incorporate the new Quick-fill valve, which ensures precise air chamber filling and reduces consumption. Multiport manifolds can rotate 180º for extraordinary pump installation versatility.

Features:

• HIGHER EFFICIENCY. Maximum fluid flow with reduced air consumption.
• INCREASED RELIABILITY. No stall, no icing, reliable start-up and longer air valve and diaphragms life.
• MAXIMUM VERSATILITY. Metal pumps offer a wide range of diaphragms, seats and balls offer broad fluid and application compatibility.
• EASY SERVICING. Simplified maintenance and cleaning. Components designed for long life and reliability.

Specifications:

Pump size	1"
Pressure ratio	1:1
Maximum free flow delivery	130 l/min (35 US gal/min)
Air pressure operating range	1.5 to 8 bar (20 to 120 psi)
Solids in suspension maximum size	3.2 mm (1/8")
Maximum dry suction head	5 m (16’)
Maximum wet suction head	8 m (26’)
Delivery per cycle	0.4 l (0.1 gal)
Fluid inlet / outlet ports	1"NPT (F) Threaded
Air inlet	3/8" NPT (F)
Air exhaust port	1/2" NPT (F)
Sound level	75 db
Central body & Air chambers material	Aluminum
Fluid ports / Location	1" NPT threaded ports
Fluid chambers & Manifolds material	Aluminum
Hardware Bolts & Inserts material	Carbon Steel
Wetted parts	(Select option in dropdown)
Weight	6.6 kg (14.5 lb)

Literature:

• Manual

Parts and Accessories:

Part No.	Description
CP10R-WP-X00	Valve Seats
CP10R-WP-0X0	Valve Balls
CP10R-WP-00X	Diaphragms
CP10R-WP-99X	Valve Seats O-Rings
CP10R-WP-XXX	Air Motor
CP10R-HP-1AN	Inlet Manifold
CP10R-HP-2AN	Outlet Manifold
CP10R-HP-3A0	Fluid Chambers
CP10R-HP-5A0	Central Body
CP10R-HP-6A0	Air Pistons
CP10R-HP-7A0	Fluid Pistons
