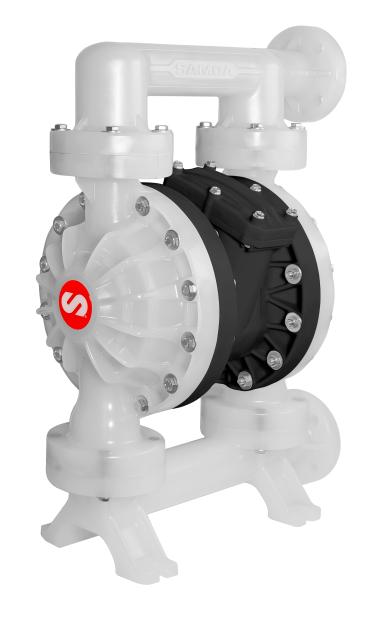

Samoa UP20 Non-Metallic Pivot Series 2" Air-Operated Double Diaphragm Pump

UP20 Non-Metallic Pivot Series 2" Air-Operated Double Diaphragm Pump

Manufacturer: Samoa

Part Number: UP20B-XXX-XXX

Description: Conductive Polypropylene, 172 Gal/Min Pump. The new SAMOA UP20 pump combines a Universal design with a unique frictionless Pivot-Shaft Air Valve to provide maximum performance and energy efficiency, exceeding market expectations.

Features:

• Higher Efficiency - Maximum fluid flow with reduced air consumption.
• Increased Reliability - No stall, no icing, reliable start-up and longer air valve and diaphragms life.

• Easy Servicing - Simplified maintenance and cleaning. Components designed for long life and reliability.
• Connectivity - Can be cofigured to connect a Smart Pump-Controller System to actuate, control, and monitor your pumps.

Materials:

Central Body and Air Chambers:	Conductive Polypropylene
Fluid Chambers and Manifolds:	Polypropylene
Hardware Bolts:	Stainless Steel
Valve Seats:	Polypropylene or PVDF
Valve Balls:	Select in dropdown menu
Diaphragm Type and Material:	Select in dropdown menu



Specifications:

Pressure Ratio	1:1
Maximum Free Delivery	172 US gal/min
Air Pressure Range	1.5 - 8 bar (20 - 120 psi)
Max. Size Solids in Suspension	6.4 mm (1/4")
Max. Dry Suction Lift	5 m (16')
Max. Wet Suction Lift	8 m (26')
Displacement Per Cycle	5.1 L (1.35 gal)
Fluid Inlet/Outlet Connections	2" ANSI/DIN Flanged Ports
Air Inlet Connection	3/4" NPTF
Air Exhaust Connection	1 1/2" NPTF
Sound Level	85 dB (A) @ 50 Cycles/Min @ 5 bar
Weight	163lbs



Parts and Accessories:

Part No.	Description
UP20R-WP-X00	Valve Seats
UP20R-WP-0X0	Valve Balls
UP20R-WP-00X	Diaphragms
UP20R-WP-99X	Valve Seats O-Ring
UP20R-AM-XXX	Air Motor Replacement Parts
UP20R-HP-1XF	Inlet Manifolds
UP20R-HP-2XF	Outlet Manifolds
UP20R-HP-3X0	Fluid Chambers
UP20R-HP-4B0	Air Chambers
UP20R-HP-5B0	Pump Central Body
UP20R-HP-6S1	Small Air Pistons
UP20R-HP-6S0	Big Air Pistons
UP20R-HP-7X0	Fluid Pistons
UP20R-HP-8B0	Air Motor Cover
